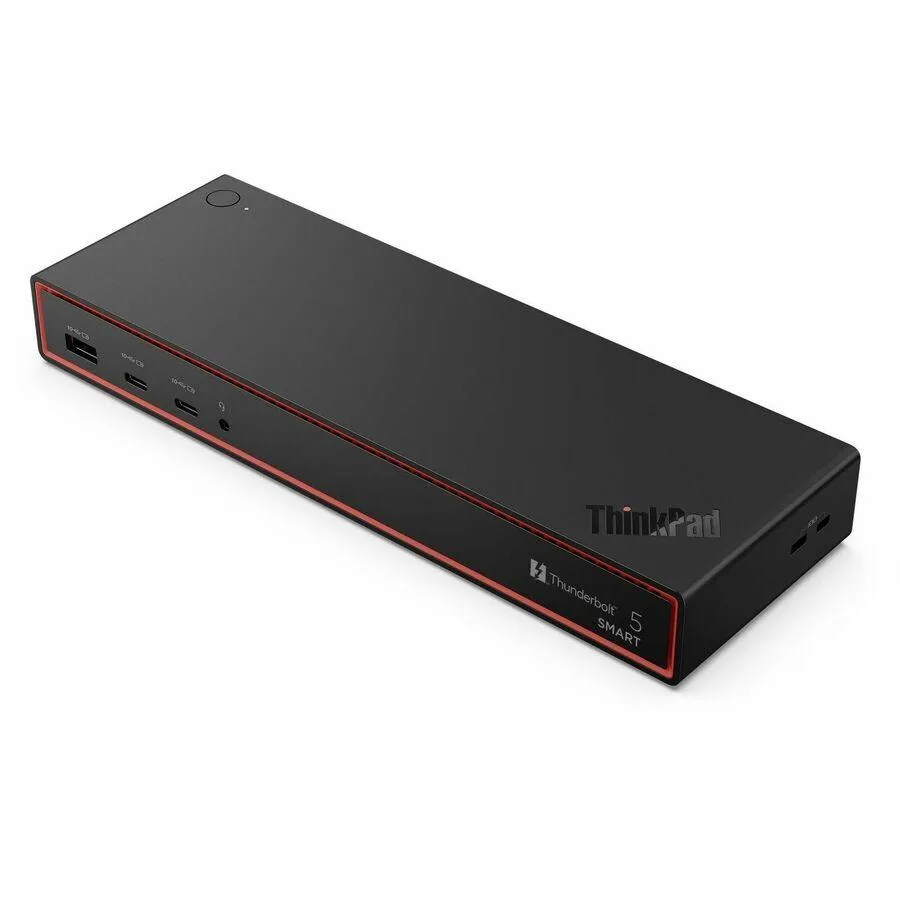

Black rectangular docking station with rounded edges, 10.24 in x 3.15 in x 1.18 in, 1.00 lbs

Lenovo

Lenovo ThinkPad Thunderbolt 5 Smart Dock 7500 265 W 40BA0265US

SKU CH-HQ5W-9CDPW MPN 40BA0265US

Universal docking station delivering 265 W power and Thunderbolt connectivity for up to four displays

  • ColorBlack
  • CompatibilityUniversal docking station
  • Ports Spec9
  • Dimension10.24 in x 3.15 in x 1.18 in
  • Weight1.00 lbs
  • FunctionUniversal docking station
  • Connect up to four ultra-high-resolution displays with Thunderbolt 5 bandwidth up to 120 Gbps
  • Deliver up to 180 W laptop charging via PD 3.1 for rapid power replenishment
  • Manage the entire dock fleet remotely through Lenovo Accessories Fleet Manager in a browser
  • Nine versatile ports including HDMI, dual DisplayPort, RJ-45, three USB-A and two USB-C
  • Compact 10.24 × 3.15 × 1.18 in design weighs only 1.00 lbs for easy placement

Universal docking station for mobile workstations

The Lenovo ThinkPad Thunderbolt 5 Smart Dock 7500 is a universal docking station finished in black. It weighs 1.00 lbs and measures 10.24 in by 3.15 in by 1.18 in. The unit is designed to turn a compatible notebook into a full desktop workstation with a single cable connection.

Thunderbolt 5 bandwidth and display limits

The Thunderbolt 5 host interface provides up to 120 Gbps of bandwidth for data and video. It supports up to four external displays in configurations such as three 8K 60Hz panels plus one 4K 60Hz panel, or two 4K 240Hz and two 4K 120Hz monitors. Power Delivery 3.1 enables up to 180 W of charging to the host notebook.

Nine-port layout and fleet management

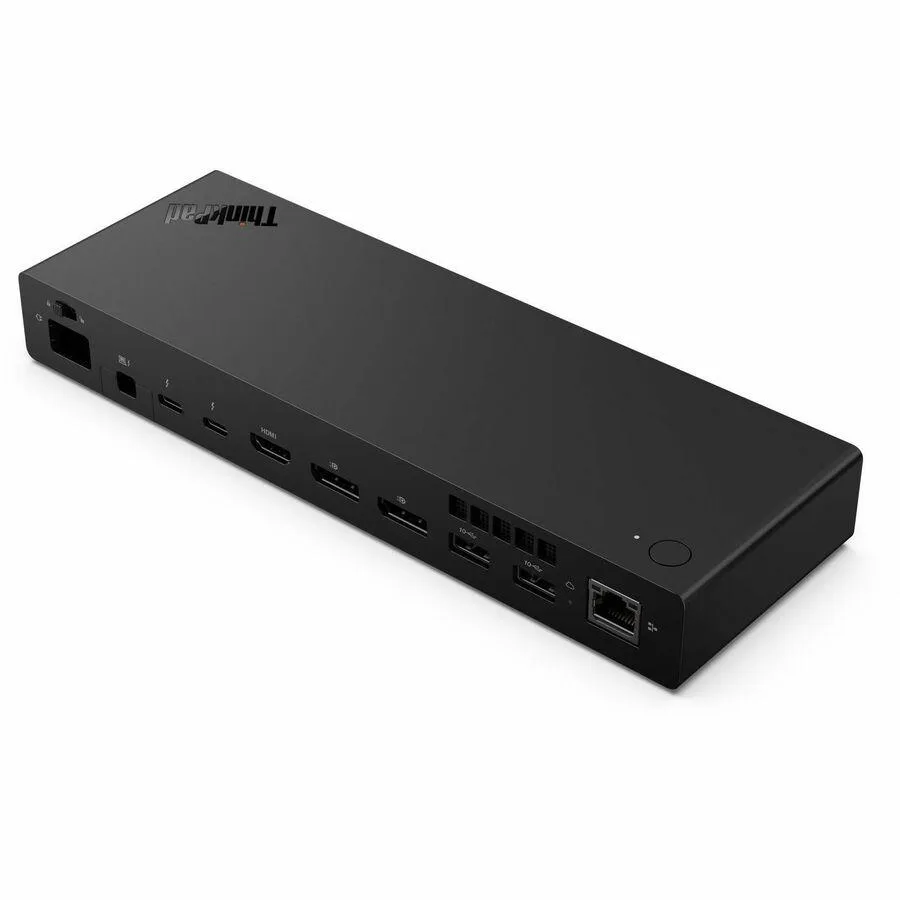

The dock offers nine ports including three USB Type-A, two USB Type-C, one RJ-45 network, one HDMI and two DisplayPort connectors. Wired connectivity ensures reliable links for peripherals and displays. Lenovo Accessories Fleet Manager allows IT teams to manage, update and diagnose the dock fleet remotely through a web browser.

Highlights

  • Connect up to four ultra-high-resolution displays with Thunderbolt 5 bandwidth up to 120 Gbps
  • Deliver up to 180 W laptop charging via PD 3.1 for rapid power replenishment
  • Manage the entire dock fleet remotely through Lenovo Accessories Fleet Manager in a browser
  • Nine versatile ports including HDMI, dual DisplayPort, RJ-45, three USB-A and two USB-C
  • Compact 10.24 × 3.15 × 1.18 in design weighs only 1.00 lbs for easy placement

Specifications

BrandLenovo
Model40BA0265US
Part Number40BA0265US
ColorBlack
CompatibilityUniversal docking station
Ports Spec9
Dimension10.24 in x 3.15 in x 1.18 in
Weight1.00 lbs
FunctionUniversal docking station
Shipping weight1.72 kg
Package size254 × 165 × 74 mm

Questions about this item

Which capacity of the ThinkPad Thunderbolt 5 Smart Dock 7500 should I choose?

The 265 W model delivers up to 180 W laptop charging and supports four displays, so pick it when you need maximum power and screen count from a single Thunderbolt cable.

What does the 120 Gbps bandwidth mean once the dock is in my machine?

It enables three 8K 60 Hz displays plus one 4K 60 Hz display, or two 4K 240 Hz and two 4K 120 Hz monitors, all driven simultaneously over the single upstream link.

What does the Thunderbolt interface cap in practice?

The Thunderbolt 5 host connection limits total throughput to 120 Gbps and caps laptop power delivery at 180 W, regardless of the dock’s 265 W rating.
