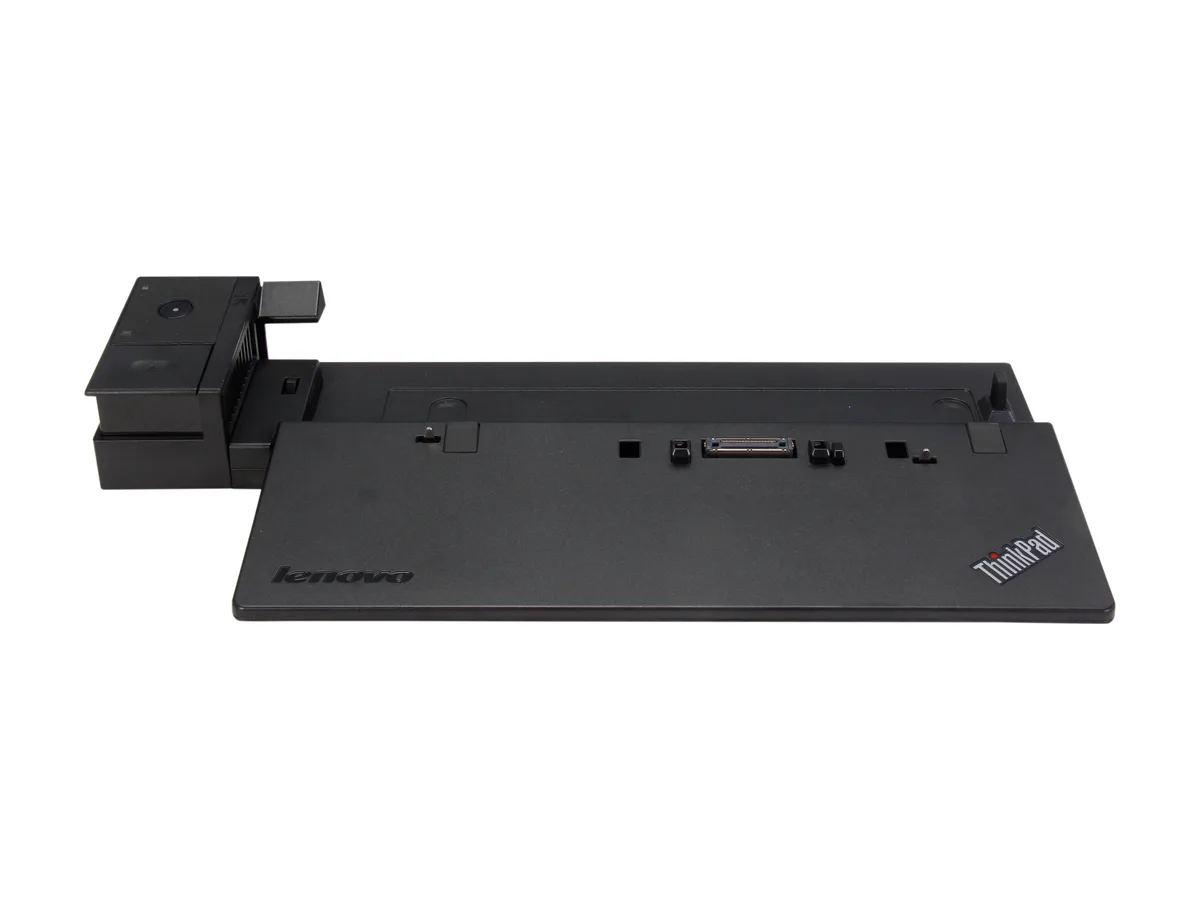

Black rectangular docking station with front USB ports and rear video outputs

Lenovo

Lenovo 40A10090US ThinkPad Pro Dock 90W docking station

SKU CH-72NA-1DZJ3 MPN 40A10090US

A 90 W dock connects compatible 65 W and 90 W ThinkPads to dual displays, six USB ports and Gigabit Ethernet

  • ColorBlack
  • CompatibilityCompatible with the following 65w and 90w DualCore ThinkPad
  • Dimension13.6" x 6.4" x 2.2"
  • Weight2.01 lbs.
  • Features3x USB 2.0, one supports always-on USB charging 3x USB 3.0 1
  • FunctionNotebook Dock
  • Connect two external monitors via DisplayPort 1.2, DVI-D or VGA
  • Six USB ports including three USB 3.0 and one always-on charging port
  • Gigabit Ethernet adds wired network with enterprise manageability
  • 90 W ThinkPad AC adapter powers compatible 65 W and 90 W laptops
  • Compact 13.6" x 6.4" x 2.2" design weighs 2.01 lbs

Docking station for select ThinkPad models

The Lenovo 40A10090US ThinkPad Pro Dock is a 90W docking station designed for compatible 65W and 90W ThinkPad laptops with integrated graphics. It connects a single cable to provide power, wired network access and multiple peripheral ports for office workstations. The dock includes a matching 90W AC adapter and supports always-on charging on one USB 2.0 port.

Upgrade from basic port replicators

This dock replaces simpler port replicators by adding Gigabit Ethernet, three USB 3.0 ports and three video outputs: DisplayPort 1.2, DVI-D and VGA. The jump is worth it when you need two external displays, as DisplayPort and DVI-D share an exclusive signal path. It is not recommended for laptops that ship with a 170W adapter.

Check laptop power and video needs

Verify that your ThinkPad model appears in the supported list and uses a 65W or 90W adapter. Confirm your monitors accept DisplayPort 1.2, DVI-D or VGA input and that you do not require simultaneous DisplayPort and DVI-D output. The dock measures 13.6 by 6.4 by 2.2 inches and weighs 2.01 lbs.

Highlights

  • Connect two external monitors via DisplayPort 1.2, DVI-D or VGA
  • Six USB ports including three USB 3.0 and one always-on charging port
  • Gigabit Ethernet adds wired network with enterprise manageability
  • 90 W ThinkPad AC adapter powers compatible 65 W and 90 W laptops
  • Compact 13.6" x 6.4" x 2.2" design weighs 2.01 lbs

Specifications

BrandLenovo
Model40A10090US
ColorBlack
CompatibilityCompatible with the following 65w and 90w DualCore ThinkPad Models with Integrated Graphics: ThinkPad 20AQ, L440, L450, L460, L540, L560, P50s, T440, T440p, T440s, T450, T450s, T460, T460p, T460s, T540p, T550, W550s, X240, X250, X260.
NOT recommended if the system AC adapter is 170W.
Dimension13.6" x 6.4" x 2.2"
Weight2.01 lbs.
Features3x USB 2.0, one supports always-on USB charging
3x USB 3.0
10/1000 Gigabit Ethernet, supports enterprise manageability
1x DisplayPort 1.2 (Exclusive use with DVI-D)
1x DVI-D (Exclusive use with DisplayPort)
1x VGA
Driver-free, perfect video quality
1x Stereo/Mic Combo Audio Port
Security lock hole
Convenient eject button for one-step system removal
Charges your ThinkPad with an included ThinkPad 65W AC Adapter
Physical rear alignment for a perfect dock every time
Smaller desktop footprint vs. Series 3 docking stations
FunctionNotebook Dock
Shipping weight1.72 kg
Package size378 × 203 × 94 mm

Questions about this item

How much desk space does the 13.6" x 6.4" x 2.2" dock require?

The unit measures 13.6 inches wide by 6.4 inches deep by 2.2 inches high and weighs 2.01 lbs, so allow that footprint plus cable clearance on a flat surface.

What is the correct way to connect the included 90W AC adapter before docking the notebook?

Plug the supplied 90W ThinkPad AC adapter into the dock’s power input and a wall outlet first, then slide the compatible ThinkPad down onto the connector until it clicks securely.

Which laptops will stop being supported if they require a 170W power supply?

The dock is not recommended for models that ship with a 170W adapter; it only supports listed 65W and 90W ThinkPads such as the T440, T450, T460, L440, L450, L460 and P50s series.
