Black metal box with four smaller units and cables

Lenkeng Technology Co,. Ltd

Lenkeng Technology Co,. Ltd LKV714Pro 1x4 HDMI Extender POE Splitter 1080p@60Hz 130ft Loop-Out IR EDID

SKU CH-RWJ3-TM9BN

Extends one HDMI source to four displays up to 130 ft over CAT6 cable with 1080p@60Hz resolution, loop-out, IR passback and EDID management

  • Distance130 ft.
  • Resolution Support1080P
  • ColorBlack
  • Distributes one source to four displays simultaneously
  • Extends 1080p video up to 130 ft over CAT6/7
  • HDMI loop-out enables local monitoring of the signal
  • Built-in EDID options auto-match source to each display
  • IR passback lets you control the source from any receiver

1×4 HDMI Extender over CAT6

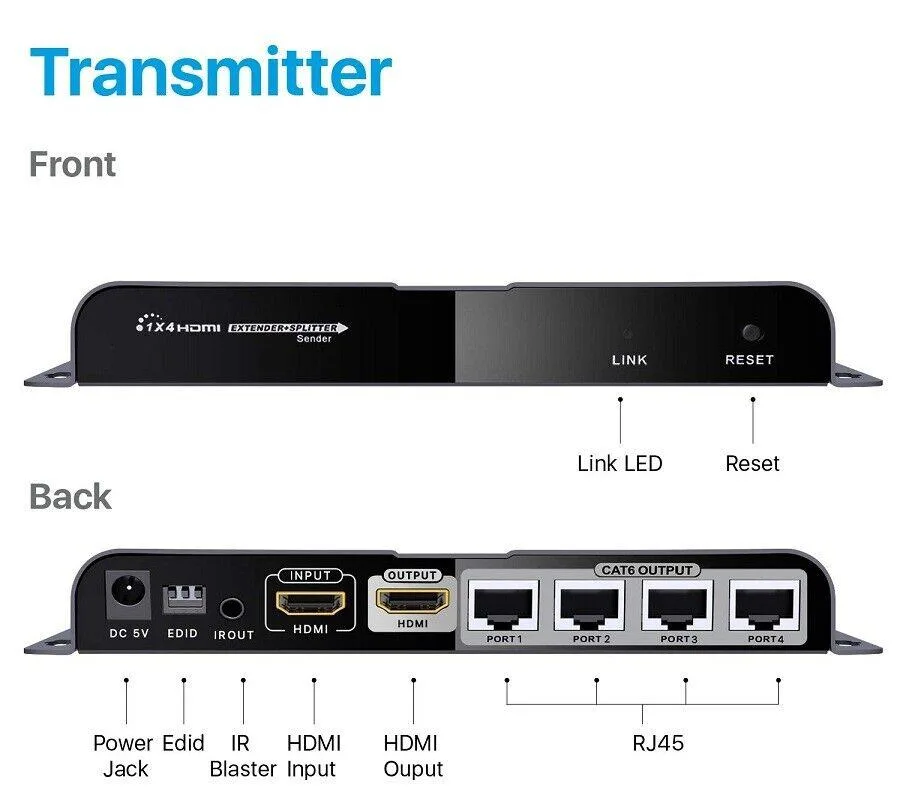

The Lenkeng LKV714Pro is a professional A/V extender that distributes a single HDMI source to four remote displays using CAT6, CAT6A, CAT7 or CAT8 cable. It includes one transmitter, four receivers and a single power adapter. The system supports 1080p resolution at 60 Hz and transmits signals up to 130 ft. It is built for installers who need simultaneous multi-room video distribution.

Installers needing HDMI loop-out and IR control

The unit suits exhibition halls, conference rooms and show centres where a local monitor and remote IR control are required. The HDMI loop-out allows local monitoring while the IR pass-back forwards remote commands over the same CAT cable. Buyers who need 4K resolution, longer cable runs beyond 131 ft, or more than four output zones should look at a different solution.

Transmitter powers all four receivers

Only the transmitter requires the included AC 110–240 V power supply; each receiver draws power over the CAT6 link, reducing outlet count. The package supplies four IR receiver cables and one IR blaster cable for end-to-end remote control. Automatic EDID management with six built-in presets ensures the source outputs a compatible signal without manual configuration.

Highlights

  • Distributes one source to four displays simultaneously
  • Extends 1080p video up to 130 ft over CAT6/7
  • HDMI loop-out enables local monitoring of the signal
  • Built-in EDID options auto-match source to each display
  • IR passback lets you control the source from any receiver

Specifications

Distance130 ft.
Resolution Support1080P
ColorBlack

Questions about this item

What cables do I need to connect the transmitter to the four receivers?

You need four CAT6, CAT6A, or CAT7 cables, one run from the transmitter to each receiver, to carry the 1080p@60Hz signal up to 130 ft.

Will my existing 1080i and 720p sources work with this extender?

Yes, the extender supports 480i, 480p, 720p, 1080i, and 1080p at 60 Hz, so older 1080i and 720p sources are compatible.

How can I confirm the IR pass-back is functioning after I connect the IR blaster and receiver cables?

Point the source device's remote at the IR receiver cable at the display location; if the source responds, the 20~60 Hz IR pass-back is working.
