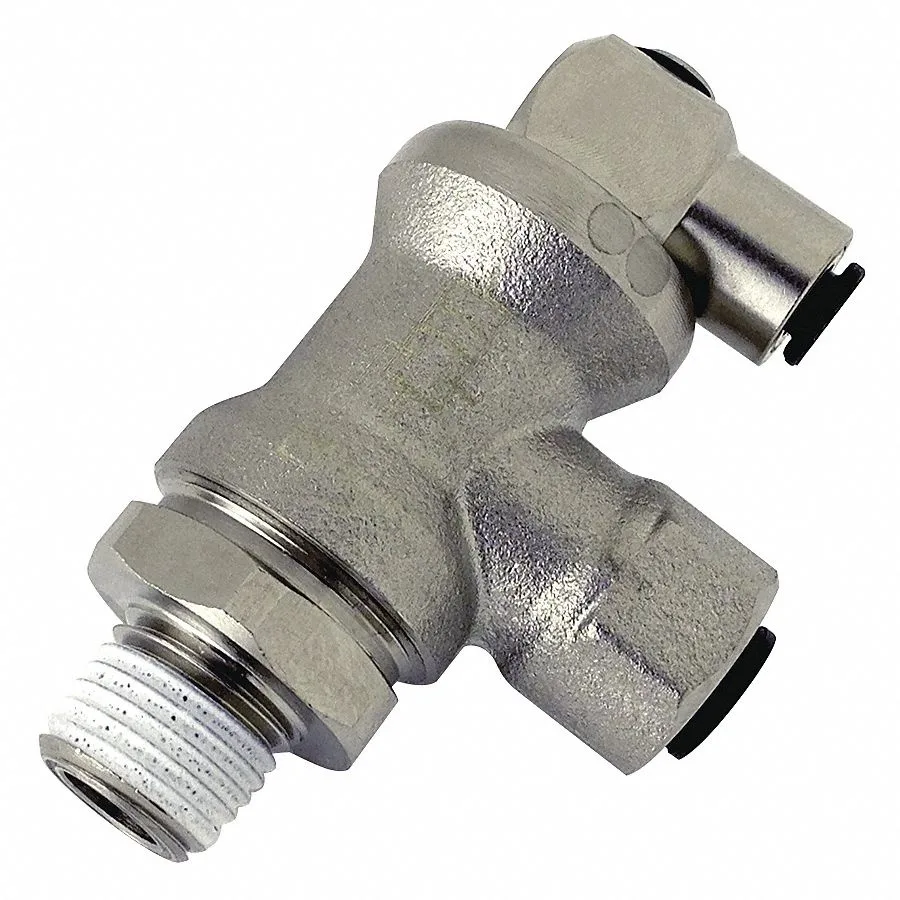

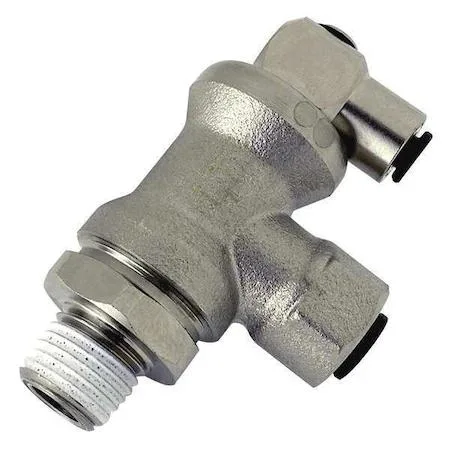

Brass lockout valve with 1/4 inch tube connection

Legris

Legris 7885 56 11 Lockout Valve 1/4 in Brass

SKU CH-7V4T-M2E0H MPN 7885

Lockout valve with 1/4 in tube outlet, 1/8 in NPT inlet and 145 psi rating

  • TypeDrain Components
  • MaterialHAWA
  • Lockout function isolates air lines for safe maintenance
  • Nickel-plated brass body resists corrosion in pneumatic systems
  • 145 psi maximum pressure rating handles demanding compressed-air applications
  • 160 °F temperature limit suits high-heat industrial environments
  • NBR seals provide reliable sealing with standard compressed-air media

Lockout Valve 1/4 in Brass

The Legris 7885 56 11 is a nickel-plated brass lockout valve designed for compressed-air systems. It provides a single male 1/8 in NPT inlet and a single female 1/4 in tube outlet for in-line isolation. The valve is rated for 145 psi at 160 Degrees F and uses an NBR seal. It suits maintenance technicians who need positive shut-off during service.

Suits air-line isolation; not for other fluids

This component suits workshops that must isolate individual pneumatic tools or circuits for safe maintenance. It is not intended for hydraulic, refrigerant or high-temperature steam lines. Buyers who need multiple outlets, a larger port size or a different seal material should look at alternative valve configurations.

145 psi maximum operating pressure

The decisive specification is the 145 psi maximum operating pressure combined with the 160 Degrees F temperature limit. Verify that your compressed-air system never exceeds these values before installation. The 1/8 in NPT male inlet and 1/4 in tube female outlet must also match your existing fittings.

Highlights

  • Lockout function isolates air lines for safe maintenance
  • Nickel-plated brass body resists corrosion in pneumatic systems
  • 145 psi maximum pressure rating handles demanding compressed-air applications
  • 160 °F temperature limit suits high-heat industrial environments
  • NBR seals provide reliable sealing with standard compressed-air media

Specifications

TypeDrain Components
MaterialHAWA
BrandLegris
Model7885 56 11

Questions about this item

What does the 1/8 in NPT inlet and 1/4 in tube outlet limit the valve to?

The 1/8 in NPT male inlet and 1/4 in tube female outlet cap the connection to those exact thread and tube sizes.

What clearance does the 1 9/16 in height and 1 13/16 in width need?

The body measures 1 9/16 in tall by 1 13/16 in wide, so allow at least that much space for the valve and tube fitting.

How is the lockout valve installed and what step is often missed?

Thread the 1/8 in NPT male end into the air line, push the 1/4 in tube into the outlet, then engage the lockout slider; the step often missed is verifying the tube is fully seated before pressurising to 145 psi.
