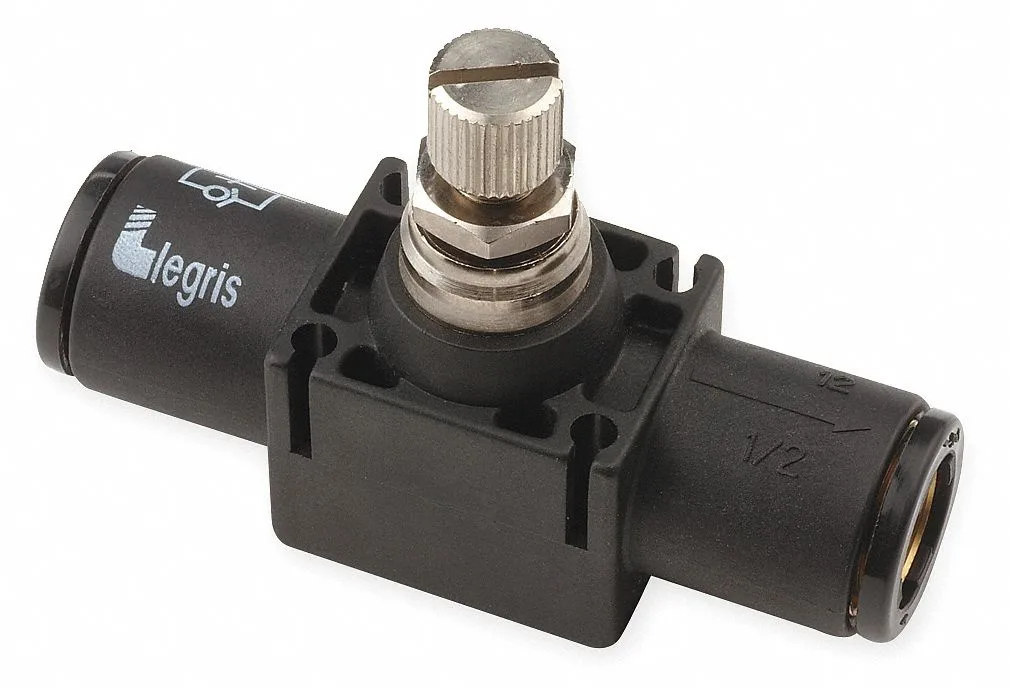

Legris 7770 flow control valve with 6mm push-to-connect ports

Legris

Legris 7770 06 00 Flow Control Valve 6mm 145 psi

SKU CH-N51N-H2NZ0 MPN 7770

A flow control valve with 6 mm push-to-connect ports, 145 psi maximum pressure and 360-degree screwdriver adjustment

  • TypeDrain Components
  • MaterialHAWA
  • Precise flow adjustment via screwdriver control
  • 6 mm push-to-connect ports for quick tubing fit
  • Operates reliably up to 145 psi maximum pressure
  • Functions from 14.5 to 145 psi working range
  • Withstands temperatures up to 158 °F

Flow Control Valve 6 mm 145 psi

This Legris 7770 06 00 valve regulates pneumatic flow with screwdriver adjustment. It suits technicians setting actuator speed on compressed-air circuits. The push-to-connect ports accept 6 mm tubing on both inlet and outlet. Maximum working pressure is 145 psi and temperature limit is 158 °F.

Check Port Size and Pressure Range

Verify that your airline uses 6 mm push-to-connect fittings before ordering. The valve operates between 14.5 psi and 145 psi, so system pressure must stay inside this window. Confirm the medium is clean, dry compressed air compatible with HAWA material. The valve body rotates 360 degrees for alignment, but panel mounting dimensions are not supplied.

Thermals Noise and Power Draw

No electrical power is consumed because actuation is purely pneumatic. The valve generates no audible noise beyond normal air exhaust from downstream components. Surface temperature follows the supply air up to the 158 °F rating. There are no fans, heaters or electronic circuits to contribute heat or sound.

Highlights

  • Precise flow adjustment via screwdriver control
  • 6 mm push-to-connect ports for quick tubing fit
  • Operates reliably up to 145 psi maximum pressure
  • Functions from 14.5 to 145 psi working range
  • Withstands temperatures up to 158 °F

Specifications

TypeDrain Components
MaterialHAWA
BrandLegris
Model7770 06 00

Questions about this item

Does the Legris 7770 06 00 valve include tubing or fittings, or must they be purchased separately?

The valve has 6 mm push-to-connect ports on both inlet and outlet; tubing and any additional fittings are not included and must be sourced separately.

How do I choose between the available pressure-range options for this model?

This specific model operates from 14.5 psi up to 145 psi, so select it when your system pressure falls inside that range.

What does the 145 psi maximum pressure rating mean when the valve is installed in a pneumatic circuit?

It is the highest gauge pressure the valve can safely handle at up to 158 °F; system pressure must stay at or below 145 psi during operation.
