Legris

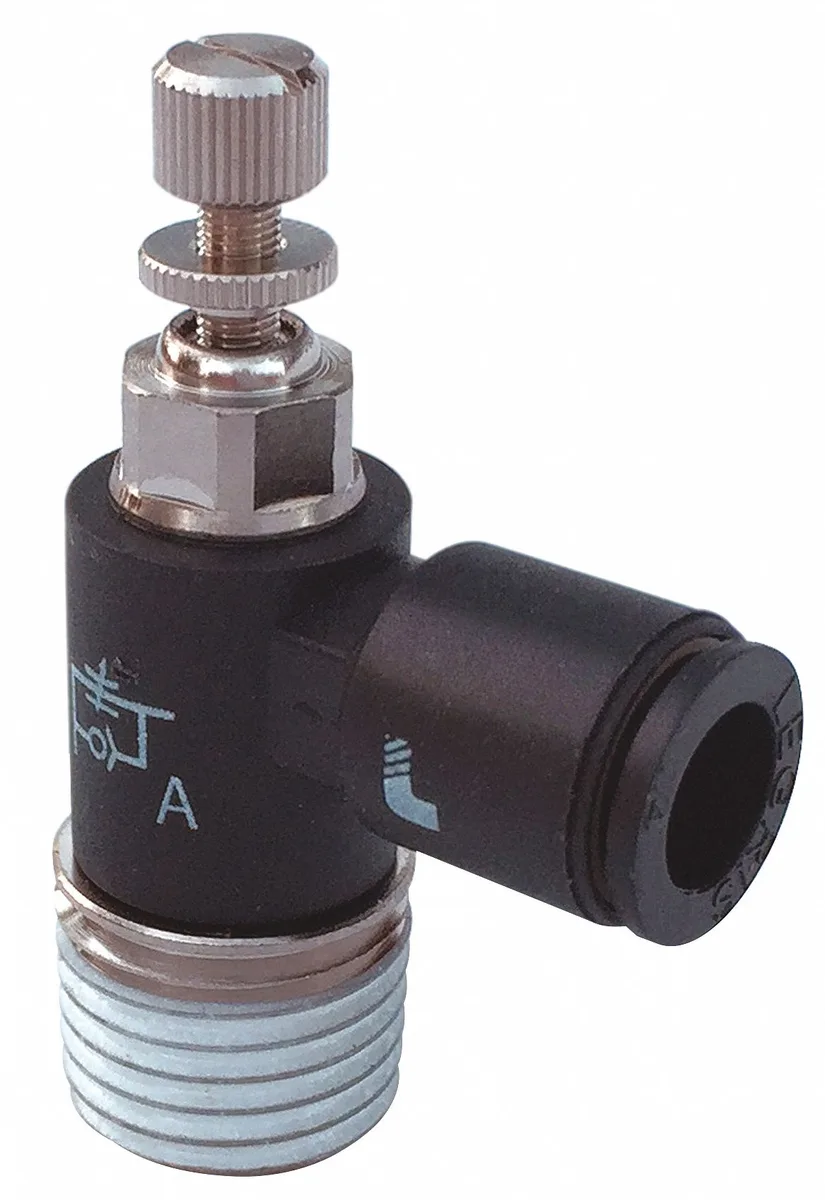

Legris 7665 08 13 Mini Flow Control 8 mm R 1/4 in BSPT Meter Out
Miniature flow-control valve with screw adjustment for 8 mm tube on an R 1/4 BSPT elbow, rated to 145 psi and 70 °C
- TypeOther
- Precise flow control via screw adjustment for 8 mm tubing
- Compact elbow design fits tight pneumatic installations
- Nickel-plated polymer body resists corrosion up to 145 psi
- Meter-out regulation delivers consistent 65.3 cfm maximum flow
- Operates reliably from 14.5 psi to 70 °C temperature range
Mini Flow Control for 8 mm tube
The Legris 7665 08 13 is a miniature flow-control valve designed for pneumatic circuits using 8 mm tubing. It connects via an R 1/4 in BSPT thread and uses a screw adjustment to meter exhaust air from the cylinder port. The nickel-plated technical-polymer body suits general automation tasks where space is limited.
Pressure and flow limits
Operation is rated between 14.5 psi and 145 psi with a maximum flow capacity of 65.3 cfm. The valve handles temperatures up to 70 °C. These boundaries define the practical envelope; outside them the device may not regulate reliably or could be damaged.
Capacity and headroom
At 65.3 cfm the unit comfortably serves small to medium actuators and short cylinder strokes. It will run out of headroom on high-flow applications or long-stroke cylinders that demand more exhaust capacity than the rated maximum. Not suited for systems requiring metered-in control or larger port sizes.
Highlights
- Precise flow control via screw adjustment for 8 mm tubing
- Compact elbow design fits tight pneumatic installations
- Nickel-plated polymer body resists corrosion up to 145 psi
- Meter-out regulation delivers consistent 65.3 cfm maximum flow
- Operates reliably from 14.5 psi to 70 °C temperature range
Specifications
| Brand | LEGRIS |
|---|---|
| Type | Other |
Questions about this item
Which size of the 7665 Mini Flow Control fits an 8 mm tube with a R 1/4 in BSPT thread?
This model is built for an 8 mm tube and a R 1/4 in BSPT connection; the 8 mm valve body and air connection match that combination directly.
What does the 65.3 cfm maximum flow rate mean once the valve is installed in a pneumatic circuit?
At the top end the valve can pass 65.3 cfm of compressed air; actual flow will depend on upstream pressure and downstream restriction.
How does the BSPT R 1/4 in thread limit the pressure range I can use?
The BSPT R 1/4 in port is rated for 14.5 psi minimum up to 145 psi maximum operating pressure; stay within that window for reliable sealing.
