Legris
Legris 7665 06 10 Mini Flow Control R1/8 BSPT Meter Out 6mm
Miniature flow control with screw adjustment, R 1/8 BSPT connection, 6 mm tube fitting, meter-out direction, up to 145 psi and 16.2 cfm
- TypeOther
- Precise flow adjustment via screw metering out
- Compact 6 mm polymer body fits tight spaces
- R1/8 BSPT thread connects directly to 6 mm tube
- Rated 145 psi max at 70 °C operating temperature
- Delivers up to 16.2 cfm from 14.5 psi minimum

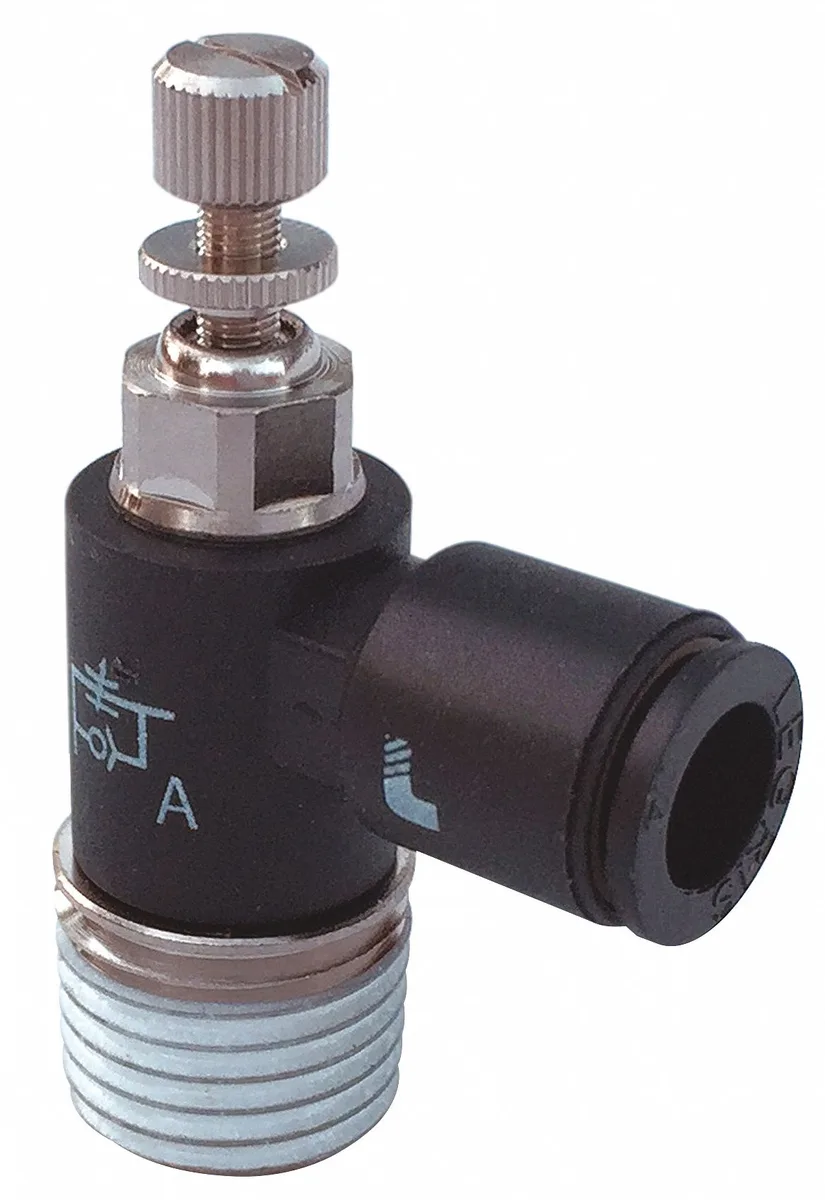

Mini Flow Control R1/8 BSPT
The Legris 7665 06 10 is a miniature flow control valve designed for pneumatic systems that need precise metering of compressed air. It suits maintenance engineers and machine builders who install compact control on actuators or cylinders. The elbow-style body uses a screw adjustment for fine tuning. It is not for hydraulic circuits or applications that require bidirectional metering.
Capacity and headroom
The valve handles a maximum flow rate of 16.2 cfm at pressures up to 145 psi, with a minimum operating pressure of 14.5 psi. Its 6 mm tube connection and R 1/8 in BSPT thread limit use to small-bore pneumatic lines. Flow drops off when supply pressure falls below the minimum or when downstream restriction exceeds the valve's adjustment range.
Thermals noise and power draw
The technical polymer body with nickel-plated finish operates up to 70 degrees C in normal compressed-air service. No electrical power is consumed and the valve produces no audible noise during metering. California Proposition 65 warnings apply because the product contains a listed chemical.
Highlights
- Precise flow adjustment via screw metering out
- Compact 6 mm polymer body fits tight spaces
- R1/8 BSPT thread connects directly to 6 mm tube
- Rated 145 psi max at 70 °C operating temperature
- Delivers up to 16.2 cfm from 14.5 psi minimum
Specifications
| Brand | LEGRIS |
|---|---|
| Type | Other |
Questions about this item
Will the R 1/8 BSPT thread on this Legris 7665 06 10 valve mate with my existing 6 mm push-in fittings?
Yes, the valve has a 6 mm tube connection on one side and an R 1/8 BSPT thread on the other, so it connects directly to 6 mm push-in fittings.
How can I verify the meter-out flow control is regulating air correctly after installation?
Adjust the screw while the circuit is pressurised between 14.5 and 145 psi; the exhaust flow should change smoothly up to the 16.2 cfm maximum.
Does the package include the 6 mm tubing or any mounting brackets, or must I buy them separately?
Only the miniature flow control valve with nickel-plated technical polymer body is supplied; 6 mm tubing and brackets are not included.
