Legris

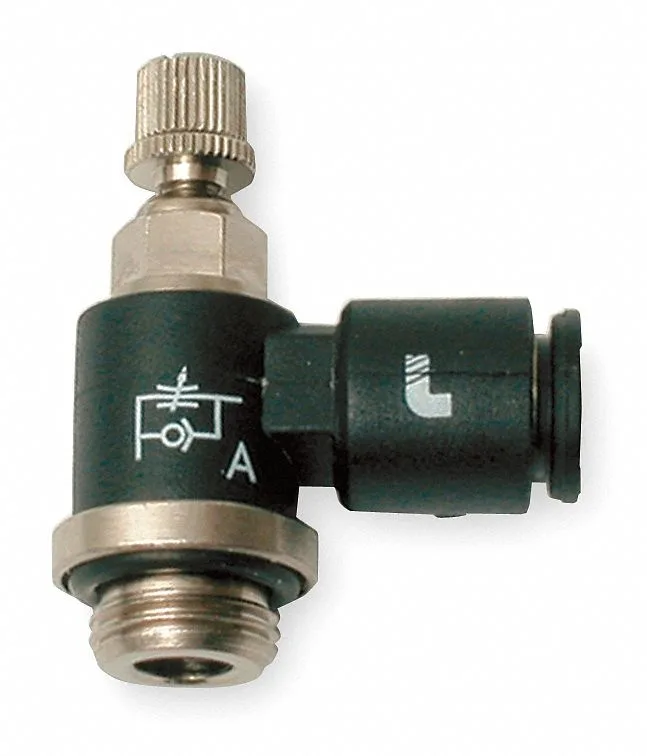

Legris 7660 56 20 Flow Control Valve 1/4 in Push 10-32 UNF 145 psi
Controls pneumatic flow direction with 1/4 in push-to-connect inlet and 10-32 UNF outlet rated to 145 psi
- TypeDrain Components
- MaterialHAWA
- Precise flow adjustment with screwdriver operation
- Secure 1/4 in push-to-connect inlet fitting
- Standard 10-32 UNF outlet thread compatibility
- Reliable performance up to 145 psi pressure
- Wide 14.5 to 145 psi operating range
Flow Control Valve for Pneumatic Lines
The Legris 7660 56 20 is a flow control valve designed for pneumatic systems. It features a 1/4 in push-to-connect inlet and a 10-32 UNF threaded outlet. The valve provides adjustable flow regulation with a maximum pressure rating of 145 psi and an operating range of 14.5 to 145 psi.
Installers Needing Inline Speed Adjustment
This valve suits technicians who need to meter actuator speed directly in a compressed-air circuit. The screwdriver adjustment and 360-degree rotation allow fine tuning in tight panels. It is not for hydraulic circuits, high-temperature media above 158 Degrees F, or applications requiring a larger port size than 1/4 in.
1/4 in Push-to-Connect Inlet with 10-32 UNF Outlet
The mixed port configuration determines whether the valve fits existing tubing and fittings. One side accepts 1/4 in push-to-connect tube while the other mates with a 10-32 UNF thread. Verify both connections match the circuit before purchase.
Highlights
- Precise flow adjustment with screwdriver operation
- Secure 1/4 in push-to-connect inlet fitting
- Standard 10-32 UNF outlet thread compatibility
- Reliable performance up to 145 psi pressure
- Wide 14.5 to 145 psi operating range
Specifications
| Type | Drain Components |
|---|---|
| Material | HAWA |
| Brand | Legris |
| Model | 7660 56 20 |
Questions about this item
Will the 1/4 in push-to-connect inlet fit the tubing I already use?
The valve inlet is a 1/4 in push-to-connect port; it accepts 1/4 in OD pneumatic tubing without extra fittings.
How can I verify the valve is regulating flow correctly after installation?
Apply supply pressure within the 14.5 to 145 psi range and adjust the screwdriver slot; flow should change smoothly through 360 degrees of rotation.
What comes in the package and is any other component required?
The package contains the flow control valve with 1/4 in push inlet and 10-32 UNF outlet; no additional parts are included.
