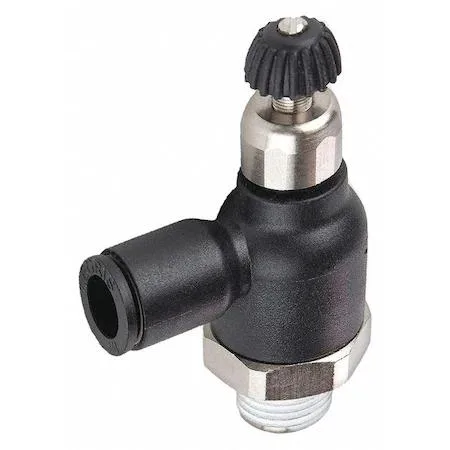

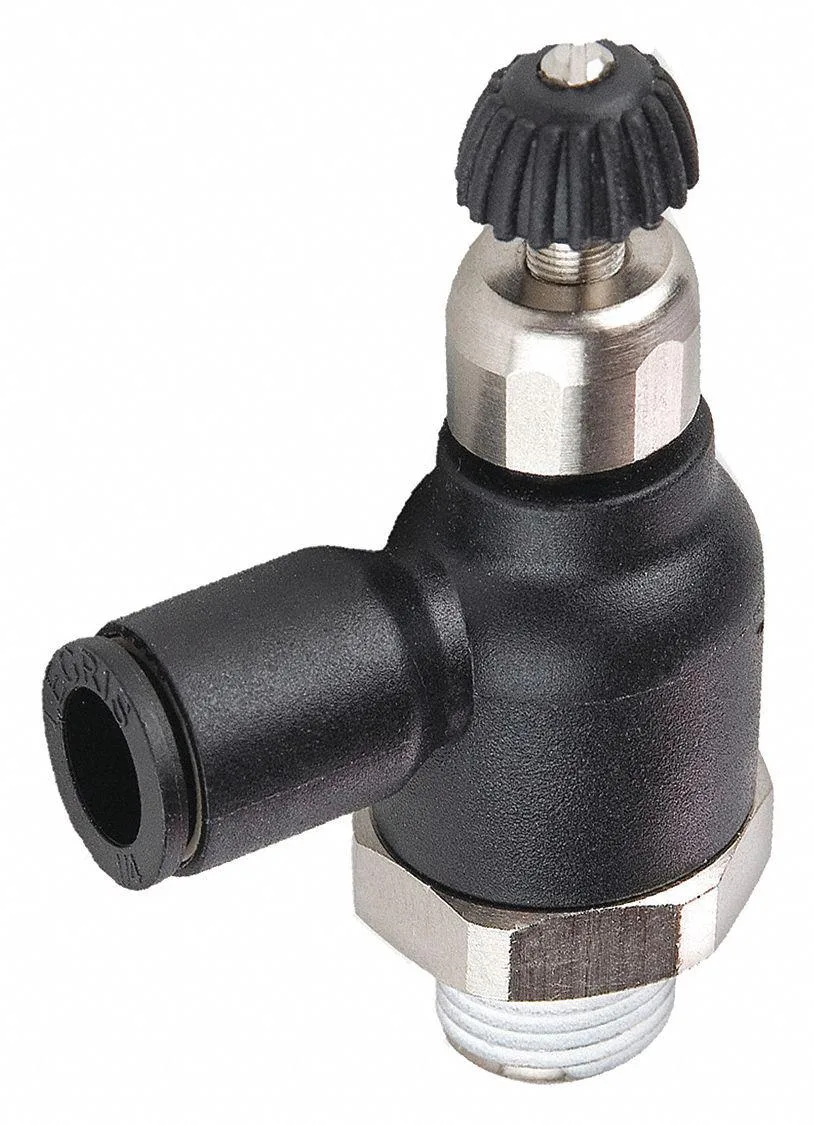

Compact nickel-plated polymer flow control elbow with R1/4 BSPT thread

Legris

Legris 7065 12 13 Compact Flow Control Trap R1/4 BSPT Meter Out

SKU CH-P2VZ-8317X MPN 7065

A compact flow control valve with R1/4 BSPT connection, 12 mm tube size and meter-out adjustment for pneumatic systems

  • TypeDrain Components
  • Compact flow control with screw adjustment for precise metering
  • R1/4 BSPT elbow fitting connects directly to 12 mm tubing
  • Technical polymer body rated to 145 psi maximum pressure
  • Nickel-plated finish resists corrosion in pneumatic systems
  • Meter-out design controls exhaust flow at up to 16.2 cfm

Compact Flow Control R1/4 BSPT

The Legris 7065 12 13 is a compact flow-control trap designed for pneumatic circuits that require metered exhaust control. Its screw adjustment allows precise regulation of airflow in the meter-out direction. The valve body accepts 12 mm tube connections and features a nickel-plated technical polymer construction. It is suited for automation engineers and maintenance technicians who need reliable flow management in tight installations.

Verify Port Thread And Pressure Range

Before ordering confirm that the existing port uses an R 1/4 inch BSPT thread and that the system pressure stays between 14.5 psi and 145 psi. The elbow-style fitting requires a 12 mm tube connection on the air side. Ensure the operating temperature does not exceed 70 degrees Celsius. The product carries a California Proposition 65 warning for chemicals known to cause cancer and reproductive harm.

Ideal For Metered Exhaust Applications

This trap suits builders who need a compact meter-out valve with screw adjustment and a maximum flow of 16.2 cfm. It is not for buyers who require a meter-in metering direction or a higher flow capacity than the rated maximum. Installations needing a different thread standard or a larger body size should look at alternative configurations.

Highlights

  • Compact flow control with screw adjustment for precise metering
  • R1/4 BSPT elbow fitting connects directly to 12 mm tubing
  • Technical polymer body rated to 145 psi maximum pressure
  • Nickel-plated finish resists corrosion in pneumatic systems
  • Meter-out design controls exhaust flow at up to 16.2 cfm

Specifications

TypeDrain Components
BrandLegris
Model7065 12 13

Questions about this item

What comes in the box and is any tubing or sealant required separately?

The box contains the Legris 7065 12 13 compact flow control trap with R1/4 BSPT male thread and a 12 mm push-in elbow for tube. You must supply 12 mm pneumatic tubing and thread sealant for the BSPT port.

How do I choose between the available versions of this trap?

The part number 7065 12 13 defines a single variant: 12 mm valve body, 12 mm tube connection, R1/4 BSPT port, meter-out flow direction, and nickel-plated technical polymer body. No other capacity or version is offered under this MPN.

What does the 16.2 cfm maximum flow rating mean when the trap is installed on a live line?

At the rated 145 psi maximum operating pressure the valve can pass up to 16.2 cfm of compressed air; actual flow will be lower at the 14.5 psi minimum pressure or if downstream restriction exists.
