Legris

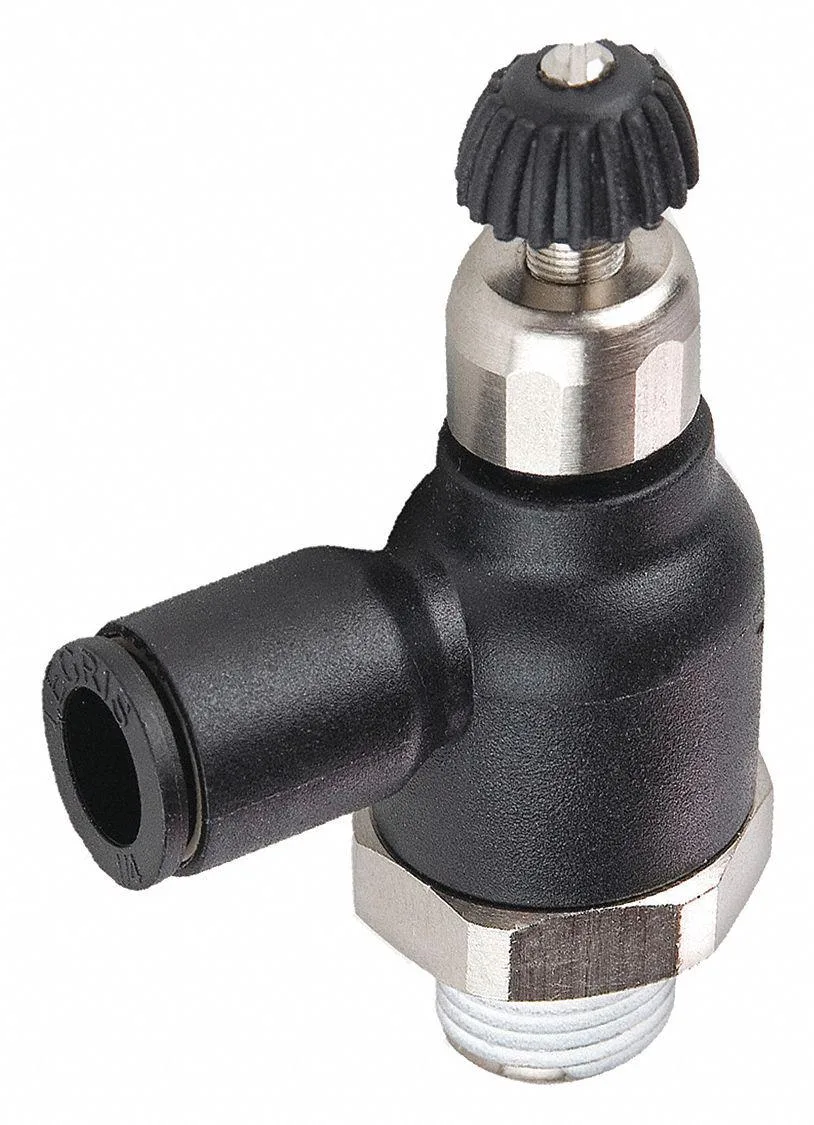

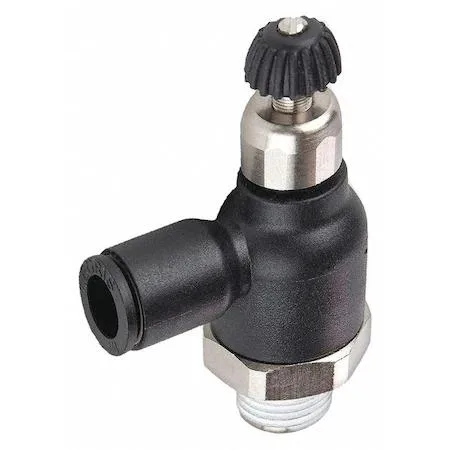

Legris 7065 08 13 Compact Flow Control R1/4 BSPT Meter Out
Compact flow control regulates pneumatic flow at 31.8 cfm with R1/4 BSPT connection and meter-out adjustment
- TypeOther
- Compact flow control for precise air regulation
- Meter-out metering direction manages exhaust flow speed
- R1/4 BSPT thread fits standard pneumatic ports
- Technical polymer body rated to 145 psi pressure
- Nickel-plated finish resists corrosion up to 70 °C
Compact Flow Control for Pneumatic Lines
The Legris 7065 08 13 is a meter-out flow control valve designed to regulate exhaust air speed in pneumatic circuits. It suits automation engineers and maintenance technicians who need precise actuator speed control on machinery or process equipment.
Installation Requirements and Space Savings
The valve connects via an R 1/4 in BSPT thread and accepts 8 mm tubing in an elbow configuration, allowing tight routing in confined control cabinets. Its technical polymer body with nickel-plated finish reduces weight and eliminates the need for bulky metal fittings in the air line.
Operating Pressure Range and Thermal Limits
Rated for 14.5 to 145 psi, the valve handles standard shop-air pressures while delivering up to 31.8 cfm flow capacity. It operates reliably up to 70 degrees C, making it suitable for environments where compressed air lines experience elevated temperatures during extended duty cycles.
Highlights
- Compact flow control for precise air regulation
- Meter-out metering direction manages exhaust flow speed
- R1/4 BSPT thread fits standard pneumatic ports
- Technical polymer body rated to 145 psi pressure
- Nickel-plated finish resists corrosion up to 70 °C
Specifications
| Brand | LEGRIS |
|---|---|
| Type | Other |
Questions about this item
At what pressure does the 7065 08 13 reach its 31.8 cfm limit?
The 31.8 cfm maximum flow is rated at the 145 psi upper operating pressure of this compact flow control.
How much heat can the polymer body handle during continuous operation?
The technical polymer body is rated for a maximum operating temperature of 70 degrees Celsius.
What tube size fits the 8 mm air connection on this elbow fitting?
The air connection accepts 8 mm tube, matching the valve body size for a direct push-in fit.
