Legris
Legris 7065 06 10 Compact Flow Control R1/8 BSPT Meter Out
Compact flow control with R1/8 BSPT connection, 6 mm tube size, 15–145 psi range and meter-out adjustment
- TypeOther
- Compact flow control with screw adjustment for precise metering
- R 1/8 in BSPT connection fits standard pneumatic ports
- Technical polymer body with nickel-plated finish resists corrosion
- Operates from 15 to 145 psi across 0 to 70 °C
- Delivers up to 23 cfm with meter-out direction control

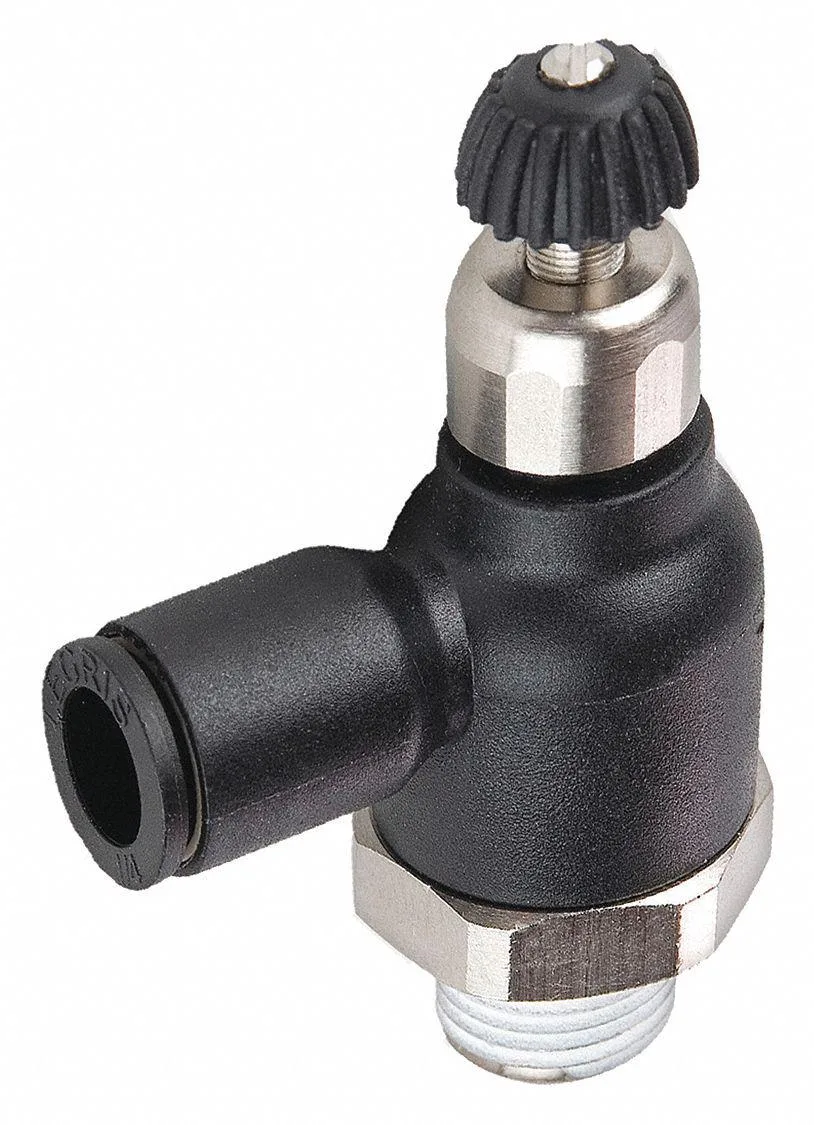

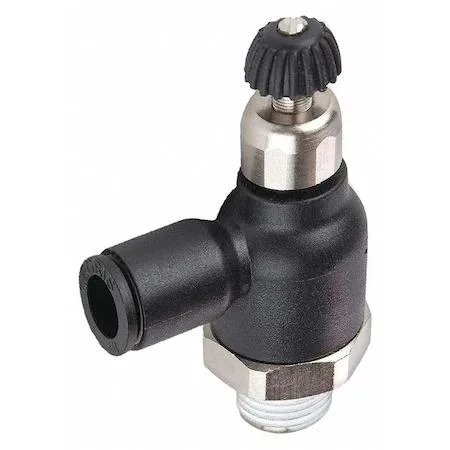

Legris 7065 06 10 Compact Flow Control
The Legris 7065 06 10 is a compact flow control valve designed for pneumatic systems requiring precise metering. It suits engineers and maintenance technicians who need reliable speed regulation on actuators using 6 mm tubing. The elbow-style body fits tight installations where straight fittings cannot be used. This new component is ready for immediate integration into compressed-air circuits.
R 1/8 BSPT Meter-Out Connection
The decisive specification is the R 1/8 in BSPT meter-out port combined with a 6 mm tube connection. This thread and port orientation determine whether the valve matches the existing port on your cylinder or manifold. The screw adjustment allows fine control of exhaust flow while the meter-out direction ensures consistent actuator speed. Verify the thread standard and tube diameter before ordering.
Operating Pressure and Temperature Range
Normal operation stays within 15 to 145 psi and 0 to 70 degrees Celsius. The technical polymer body with nickel-plated finish handles these pressures without excessive heat buildup. Flow capacity reaches 23 cfm when fully open, dropping to zero when closed. The valve produces minimal noise during adjustment and adds negligible load to the compressed-air supply.
Highlights
- Compact flow control with screw adjustment for precise metering
- R 1/8 in BSPT connection fits standard pneumatic ports
- Technical polymer body with nickel-plated finish resists corrosion
- Operates from 15 to 145 psi across 0 to 70 °C
- Delivers up to 23 cfm with meter-out direction control
Specifications
| Brand | LEGRIS |
|---|---|
| Type | Other |
Questions about this item
How does the 23 cfm maximum flow rate behave once the valve is installed in a pneumatic circuit?
The valve can pass up to 23 cfm when fully open, but the actual flow will depend on upstream pressure, tubing length and any downstream restrictions.
What does the R 1/8 in BSPT connection limit in practice?
The R 1/8 BSPT thread mates with a matching female port and seals on the taper; it cannot accept larger fittings or different thread standards without an adapter.
What clearance is needed to fit the 6 mm valve body and elbow fitting?
The compact polymer body measures 6 mm across and the elbow outlet adds height, so allow enough space for the tube to bend without kinking.
