Brass flow control valve with push-to-connect and NPT ports

Legris

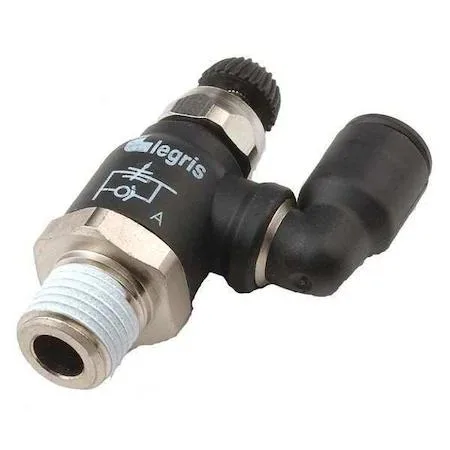

Legris 7045 60 18 flow control trap

SKU CH-QWCJ-S6YWX MPN 7045

Regulates pneumatic flow at up to 145 psi with 3/8 inch push-to-connect and NPT ports

  • TypeDrain Components
  • MaterialHAWA
  • Precise flow regulation with 14.5 to 145 psi range
  • Handles up to 145 psi maximum pressure rating
  • Operates reliably up to 158 degrees Fahrenheit
  • 3/8 inch push-to-connect inlet for quick installation
  • 3/8 inch NPT outlet ensures secure threaded connection

Flow control regulator

The Legris 7045 60 18 is a flow control valve designed for pneumatic circuits. It provides controlled flow in one direction while allowing free flow in the opposite direction. The valve accepts 3/8 inch push-to-connect tubing on the inlet and 3/8 inch NPT on the outlet.

Suitable applications

This component suits installers who need precise speed regulation on a single-acting cylinder or air tool. It is not intended for buyers who require bi-directional metering or electronic proportional control. Systems needing a higher pressure ceiling than 145 psi must select a different valve.

Pressure rating

The maximum operating pressure is 145 psi with an adjustable range from 14.5 to 145 psi. The unit withstands temperatures up to 158 degrees Fahrenheit. These limits determine whether the regulator matches the circuit requirements.

Highlights

  • Precise flow regulation with 14.5 to 145 psi range
  • Handles up to 145 psi maximum pressure rating
  • Operates reliably up to 158 degrees Fahrenheit
  • 3/8 inch push-to-connect inlet for quick installation
  • 3/8 inch NPT outlet ensures secure threaded connection

Specifications

TypeDrain Components
MaterialHAWA
BrandLegris
Model7045 60 18

Questions about this item

What comes with the Legris 7045 60 18 flow control trap and do I need to buy fittings separately?

The product is the flow control valve itself with a 3/8 in push-to-connect inlet and a 3/8 in NPT outlet; tubing or additional NPT fittings are not included and must be sourced separately.

How do I choose between the listed specifications for the Legris 7045 60 18?

This model is a single configuration — 3/8 in tube size, 14.5 to 145 psi pressure range, and 158 °F maximum temperature — so there are no alternate versions or capacities to select from.

What does the 145 psi maximum pressure rating mean when the valve is installed in a pneumatic system?

It indicates the valve can safely handle up to 145 psi operating pressure; the adjustable control range runs from 14.5 psi to that 145 psi limit, and the unit is rated for temperatures up to 158 °F.
