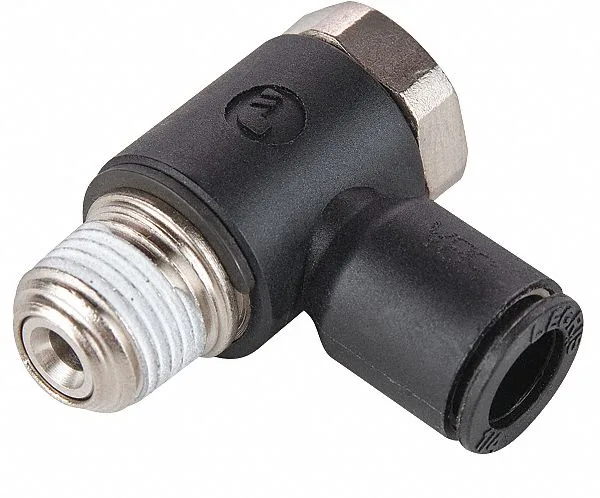

Legris 7015 56 11 flow control valve, push-to-connect and NPT ports, metal body

Legris

Legris 7015 56 11 Flow Control Trap 145 psi

SKU CH-G4WS-R1G2K MPN 7015

A flow-control valve with 1/4-inch push-to-connect inlet and 1/8-inch NPT outlet, rated to 145 psi and 158 °F

  • TypeDrain Components
  • MaterialHAWA
  • Precise flow control via screwdriver adjustment
  • 145 psi maximum pressure rating for demanding systems
  • 5 to 145 psi operating pressure range
  • Push-to-connect 1/4 in inlet simplifies installation
  • 158 °F maximum temperature handles hot media

Flow Control Valve

This Legris 7015 56 11 flow control valve regulates pneumatic flow in a single direction. It connects a 1/4 in push-to-connect inlet to a 1/8 in NPT outlet. The valve operates up to 145 psi within a 14.5 to 145 psi range. Maximum temperature rating is 158 degrees F.

Suitable Applications

Suits pneumatic circuits needing adjustable flow control at these port sizes and pressure limits. Not for systems exceeding 145 psi or 158 degrees F. Unsuitable where inlet or outlet port dimensions differ from 1/4 in push-to-connect and 1/8 in NPT. Buyers needing different connection types should look elsewhere.

Maximum Pressure Rating

The 145 psi maximum pressure rating is the primary specification that determines compatibility. System pressure must stay at or below this limit for safe operation. The working range of 14.5 to 145 psi defines the adjustable control window. Verify your circuit pressure before selecting this valve.

Highlights

  • Precise flow control via screwdriver adjustment
  • 145 psi maximum pressure rating for demanding systems
  • 5 to 145 psi operating pressure range
  • Push-to-connect 1/4 in inlet simplifies installation
  • 158 °F maximum temperature handles hot media

Specifications

TypeDrain Components
MaterialHAWA
BrandLegris
Model7015 56 11

Questions about this item

How do I choose between the 7015 56 11 and other Legris flow control valves?

The 7015 56 11 is a single-direction flow control valve with a 1/4 in push-to-connect inlet and 1/8 in NPT outlet, rated for 14.5 to 145 psi and up to 158 °F. Match those port sizes and pressure range to your circuit.

What does the 145 psi rating mean when the valve is installed in a pneumatic system?

It is the maximum allowable working pressure; the valve operates reliably between 14.5 and 145 psi, so your supply pressure must stay within that window.

How does the 1/4 in push-to-connect inlet and 1/8 in NPT outlet affect installation?

The push-to-connect inlet accepts 1/4 in tubing without tools, while the 1/8 in NPT outlet threads into a female port; both connections must be compatible with your existing fittings.
