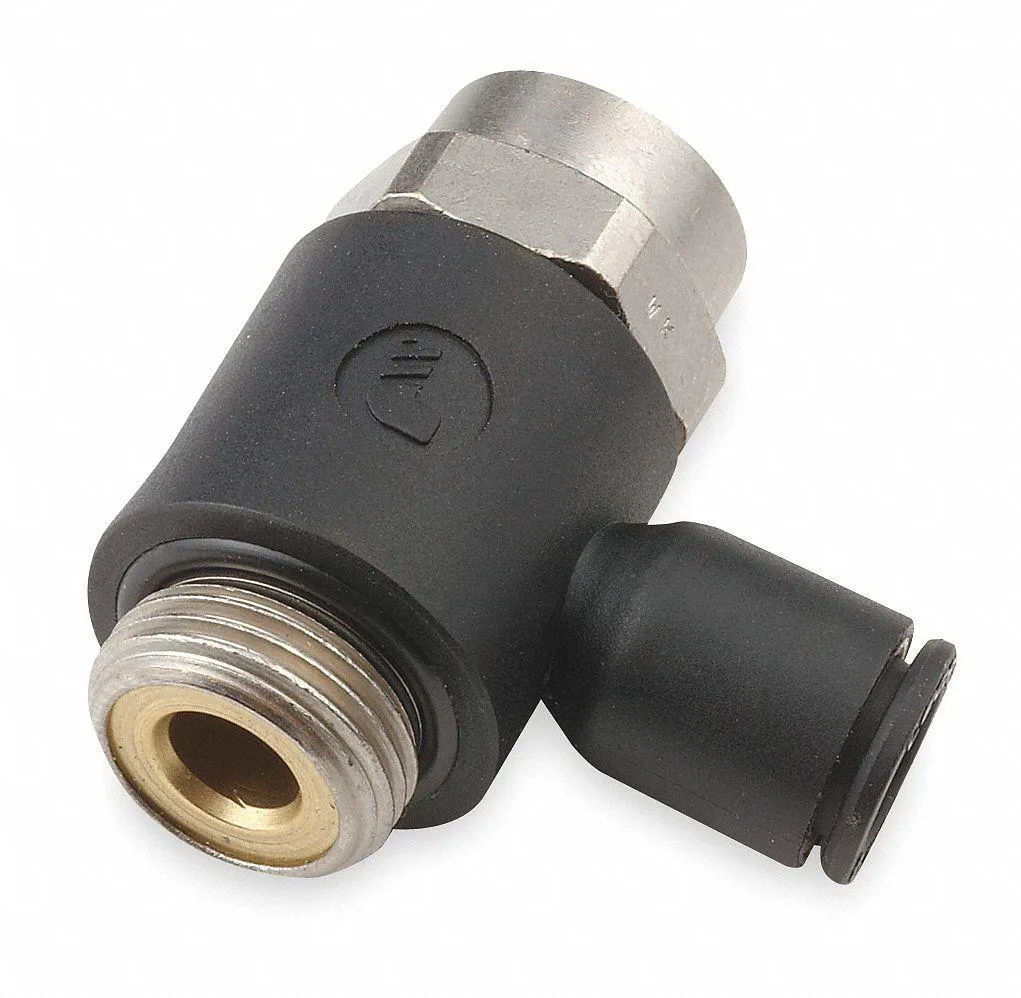

Legris 7010 08 10 flow control regulator, 8mm push-to-connect inlet, 1/8 BSPP outlet, metallic body

Legris

Legris 7010 08 10 Flow Control Regulator 8mm

SKU CH-VXT1-YW0NY MPN 7010

Flow control regulator with 8mm push-to-connect inlet and 1/8 BSPP outlet, adjustable from 14.5 to 145 psi up to 158°F with 360° rotation

  • TypeDrain Components
  • Precise flow adjustment with 360-degree rotation
  • Secure 8mm push-to-connect inlet for quick installation
  • Reliable operation up to 145 psi maximum pressure
  • Consistent performance from 14.5 to 145 psi range
  • Withstands temperatures up to 158 degrees F

Legris 7010 08 10 Flow Control Regulator

The Legris 7010 08 10 is a pneumatic flow control regulator designed for 8 mm push-to-connect tubing with a 1/8 in BSPP outlet port. It suits engineers and technicians building compressed-air circuits that need precise speed adjustment on cylinders or actuators. Buyers needing larger tube diameters or different thread standards will need another fitting.

Capacity and pressure headroom

The valve operates between 14.5 and 145 psi with a maximum temperature of 158 Degrees F, giving headroom for typical shop-air systems running near 100 psi. It handles standard pneumatic flows but reaches its limit above the rated pressure or temperature, so high-pressure or high-heat circuits are outside its range.

360-degree rotation and port orientation

The 360-degree rotation allows the outlet port to be aligned after installation without re-tightening, simplifying routing in tight panels. This adjustment freedom reduces hose kinks and eases maintenance access compared with fixed-orientation valves.

Highlights

  • Precise flow adjustment with 360-degree rotation
  • Secure 8mm push-to-connect inlet for quick installation
  • Reliable operation up to 145 psi maximum pressure
  • Consistent performance from 14.5 to 145 psi range
  • Withstands temperatures up to 158 degrees F

Specifications

TypeDrain Components
BrandLegris
Model7010 08 10

Questions about this item

Will the 8mm push-to-connect inlet fit the 8mm tubing I already use?

Yes, the valve inlet is an 8mm push-to-connect port designed for 8mm tubing. The outlet is a 1/8 inch BSPP thread, so you will need a compatible fitting for that side.

How can I verify the 7010 08 10 is regulating flow correctly after installation?

Supply compressed air within the 14.5 to 145 psi range and adjust the knob through its 360-degree rotation. Flow should change smoothly in the controlled direction while the free-flow direction remains open.

Does the box include the 1/8 BSPP fitting for the outlet port or must I buy it separately?

The regulator body has an 8mm push-to-connect inlet and a 1/8 BSPP outlet thread. A fitting for the BSPP outlet is not included and must be purchased separately.
