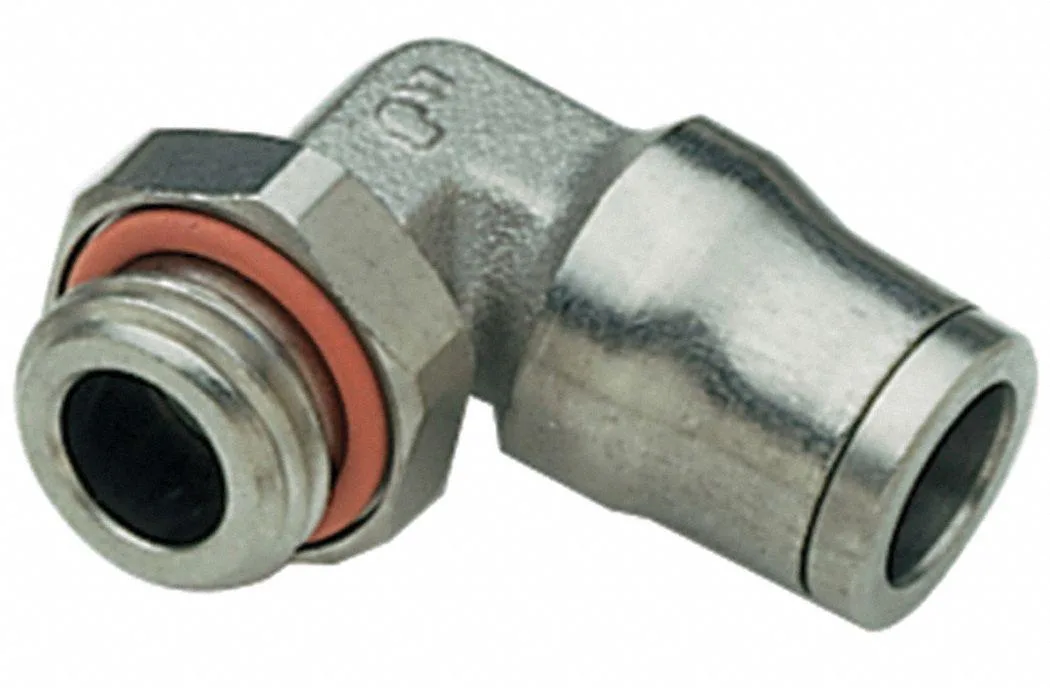

Small brass push-fit elbow fitting with silver finish

Legris

Legris 3699 08 13 Push-Fit Elbow Fitting 5/16 in Brass Silver

SKU CH-BGS6-PS4BH

Connects 5/16 inch tubing at a right angle with push-fit brass construction rated to 435 psi and 302°F

  • Push-fit elbow connects 8 mm tube to 1/4 in MBSPP thread
  • Brass construction withstands up to 435 psi operating pressure
  • Rated for temperatures up to 302 °F in lubrication systems
  • Pre-applied thread sealant not included for flexible sealing choice
  • Compact 21 1/2 mm length suits tight installations

Lubrication push-fit elbow fitting

The Legris 3699 08 13 fitting connects 8 mm tubing to a 1/4 in MBSPP port in lubrication circuits. Its push-to-connect design allows tool-free assembly for maintenance technicians and OEM assemblers.

Pressure and temperature headroom

Rated for 435 psi and 302 Degrees F the brass body handles typical industrial lubrication demands. Systems exceeding either limit will require a different fitting specification.

Pre-applied sealant exclusion

The supplier notes that pre-applied thread sealant is not included so the installer must supply compatible sealant for the MBSPP thread. California Proposition 65 warnings also apply to this product.

Highlights

  • Push-fit elbow connects 8 mm tube to 1/4 in MBSPP thread
  • Brass construction withstands up to 435 psi operating pressure
  • Rated for temperatures up to 302 °F in lubrication systems
  • Pre-applied thread sealant not included for flexible sealing choice
  • Compact 21 1/2 mm length suits tight installations

Specifications

BrandLEGRIS

Questions about this item

Will the 5/16 in push-to-connect side seal reliably on the 8 mm nylon tubing already on my machine?

The fitting accepts an 8 mm tube outer diameter on the push-to-connect port, which matches 5/16 in tubing, so your existing line will seat and seal without adapters.

How can I confirm the elbow is seated and leak-free once I press the tube in?

Push the tube until it bottoms out, pull back gently to engage the collet, then pressurise the system to the 435 psi rating and inspect the joint for escaping fluid.

Does the box include thread sealant for the 1/4 in MBSPP side or must I buy it separately?

The specifications state pre-applied thread sealant is not included, so you will need to supply PTFE tape or liquid sealant for the 1/4 in MBSPP connection.
