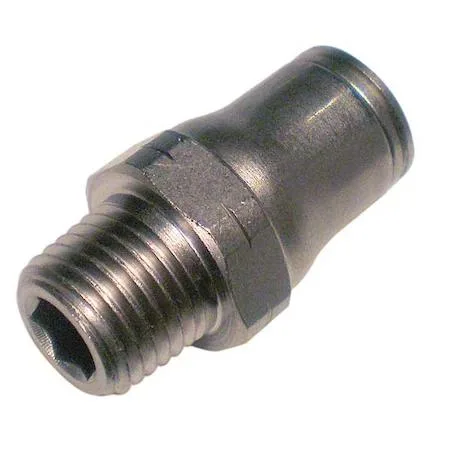

Brass push-fit adapter fitting silver finish 23 mm length

Legris

Legris 3675 10 13 Push-Fit Adapter Fitting 13/32 in Brass Silver

SKU CH-1752-4TTCB MPN 3675

A brass push-fit adapter fitting connects 10 mm tube to 1/4 in MBSPT with 435 psi and 302 °F ratings

  • TypeDrain Components
  • MaterialHAWA
  • Push-to-connect design speeds installation on 10 mm tubing
  • Brass C36000 construction resists corrosion at 435 psi working pressure
  • MBSPT 1/4 in thread mates with standard BSPT ports
  • Rated to 302 °F for demanding lubrication circuits
  • Compact 23 mm length fits tight engine-bay spaces

Push-Fit Adapter for Lubrication Systems

This brass push-fit adapter connects 10 mm tubing to a 1/4 inch MBSPT thread. It is designed for lubrication applications requiring a secure, tool-free connection. The fitting suits maintenance engineers and mechanics assembling or repairing fluid lines in industrial or automotive settings.

Pressure and Temperature Limits

The adapter withstands a maximum operating pressure of 435 psi and a maximum temperature of 302 degrees F. These ratings define the safe envelope for compressed air, oil or coolant circuits. Exceeding either limit risks seal failure or fitting deformation, so system designers must verify line conditions before installation.

Replaces Threaded or Compression Fittings

This component replaces traditional threaded or compression joints where faster assembly and disassembly are valued. The jump is worthwhile when frequent line changes occur or when vibration loosens conventional threads. It does not suit installations requiring a permanent brazed or welded joint for structural integrity.

Highlights

  • Push-to-connect design speeds installation on 10 mm tubing
  • Brass C36000 construction resists corrosion at 435 psi working pressure
  • MBSPT 1/4 in thread mates with standard BSPT ports
  • Rated to 302 °F for demanding lubrication circuits
  • Compact 23 mm length fits tight engine-bay spaces

Specifications

TypeDrain Components
MaterialHAWA
BrandLegris
Model3675 10 13

Questions about this item

Should I choose the 10 mm or the 13/32 in size for my line?

The fitting accepts 10 mm tube on the push-fit side and 1/4 in MBSPT thread on the other; pick the size that matches your tube and port.

What does the 435 psi rating mean when the fitting is installed?

It is the maximum operating pressure the brass body and seal can sustain at up to 302 Degrees F without leaking or deforming.

How does the MBSPT thread affect what I can connect?

Side B uses a 1/4 in MBSPT taper thread, so it seals directly into a matching female port without extra sealant.
