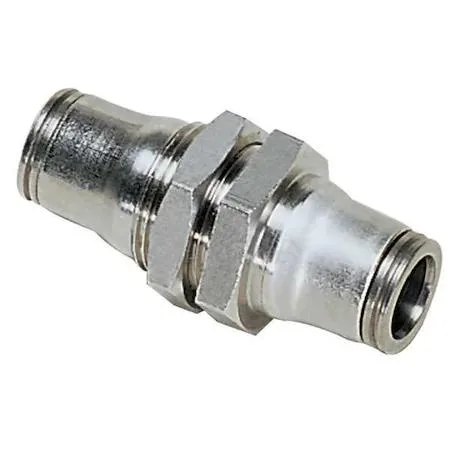

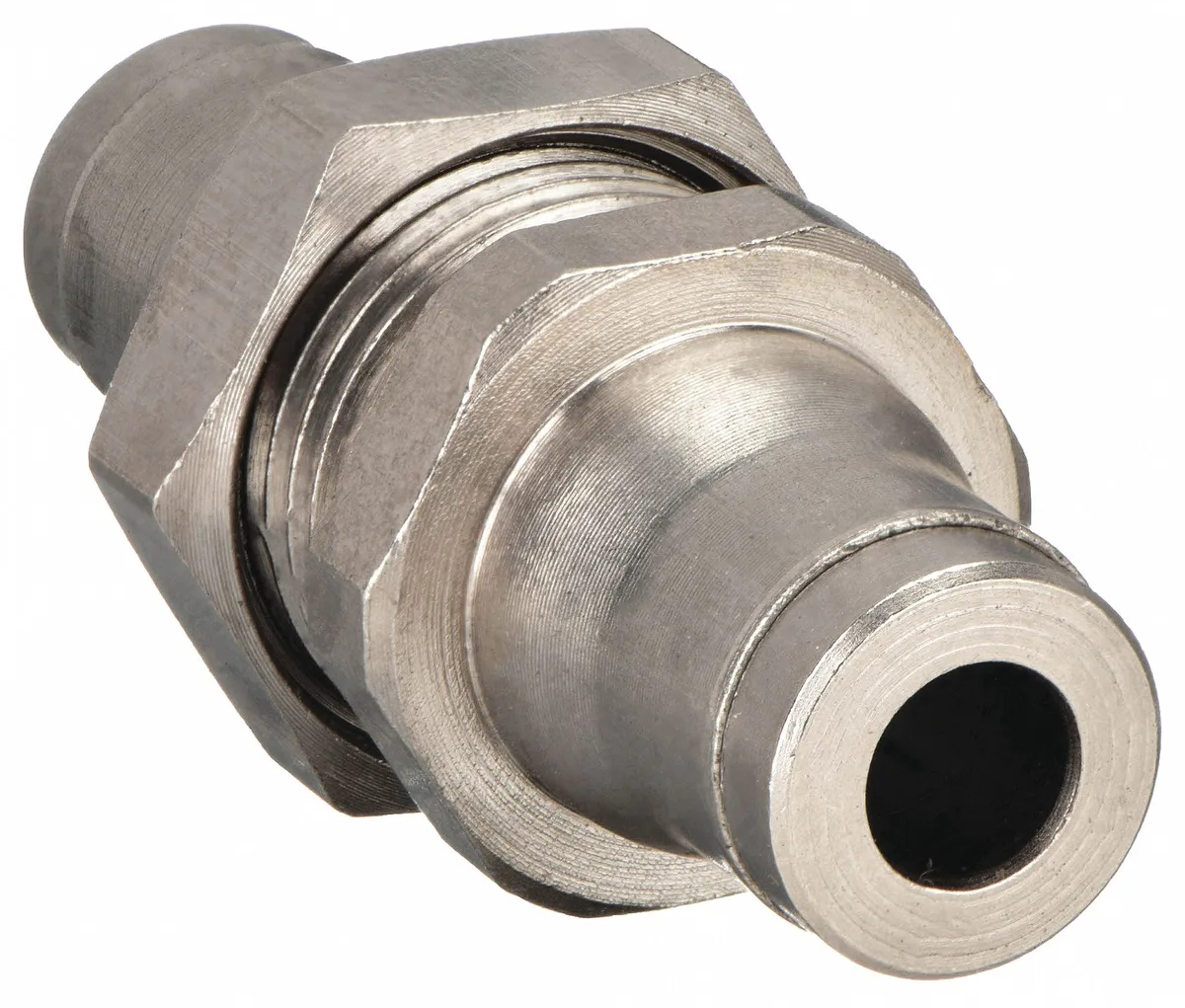

Brass push-fit union fitting 10 mm silver finish 48 mm length

Legris

Legris 3616 10 00 Push-Fit Union Fitting 10 mm Brass

SKU CH-YE2Z-BPPRT MPN 3616

A brass push-fit union connects two 10 mm tubes for lubrication lines, rated to 435 psi and 302 °F

  • TypeDrain Components
  • Push-to-connect design speeds installation with no tools required
  • Brass C36000 construction resists corrosion for long service life
  • 10 mm tube size on both ends suits metric pneumatic lines
  • Rated to 435 psi and 302 °F for demanding air systems
  • Compact 48 mm length fits tight routing spaces

Brass Push-Fit Union for 10 mm Tubing

This Legris 3616 fitting joins two 10 mm tubes in lubrication and fluid lines. The brass body resists corrosion and handles demanding shop environments. Installers who need a straight, leak-free joint without threading or soldering will find it suitable.

Dual 10 mm Push-to-Connect Ports

Both ends accept 10 mm outer-diameter tubing with a simple push motion. The connection seals to a maximum operating pressure of 435 psi and withstands temperatures up to 302 Degrees F. Verify that your tube diameter matches exactly before ordering.

Tool-Free Installation with Pressure Limits

Push the tube in until it bottoms; the internal collet grips and the O-ring seals without wrenches. Ensure the cut is square and free of burrs, otherwise the seal may leak. Do not exceed the stated pressure or temperature ratings.

Highlights

  • Push-to-connect design speeds installation with no tools required
  • Brass C36000 construction resists corrosion for long service life
  • 10 mm tube size on both ends suits metric pneumatic lines
  • Rated to 435 psi and 302 °F for demanding air systems
  • Compact 48 mm length fits tight routing spaces

Specifications

TypeDrain Components
BrandLegris
Model3616 10 00

Questions about this item

What does the 435 psi rating mean when the fitting is installed in a lubrication line?

The 435 psi maximum operating pressure is the highest continuous pressure the brass push-fit union can withstand at up to 302 °F without leaking or deforming.

How does the push-to-connect interface on both ends affect tube compatibility?

Both ends accept 10 mm or 13/32 in outer-diameter tubing; the grip-ring seals automatically when the tube is pushed in to the internal stop.

What clearance is needed to fit the 48 mm overall length into a tight plumbing run?

The union measures 48 mm from end to end, so allow at least that much straight run plus room to push each tube fully into the fitting.
