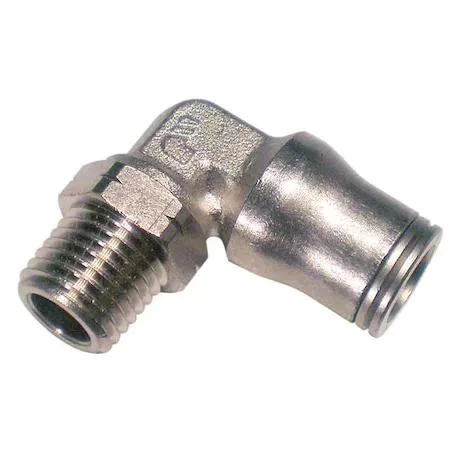

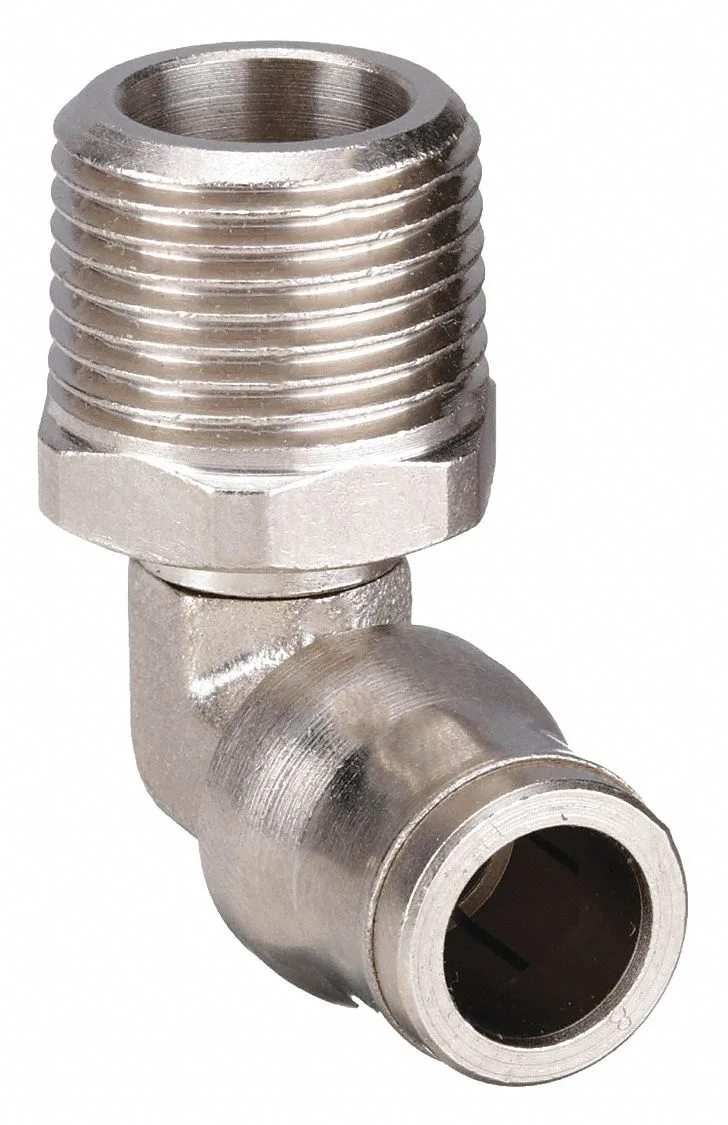

Brass push-fit elbow fitting, 12 mm tube, 3/8 in thread, silver finish

Legris

Legris 3609 12 17 Push-Fit Elbow Fitting 12mm 3/8in Brass

SKU CH-30BW-KHKG8 MPN 3609

Push-fit brass elbow connects 12 mm tube to 3/8 in MBSPT thread, rated 435 psi and 302 °F

  • TypeDrain Components
  • Push-to-connect design speeds up installation
  • Brass construction resists corrosion in demanding environments
  • 12 mm tube fits standard pneumatic lines
  • 3/8 in MBSPT thread mates with common ports
  • Rated to 435 psi and 302 °F for high-pressure systems

Fitting Application and Connection Types

This push-fit elbow fitting is designed for lubrication applications. It connects a 12 mm outer-diameter tube on one side to a 3/8 inch MBSPT thread on the other. The brass body includes pre-applied thread sealant for a secure seal. It suits installers who need a quick, tool-free tube connection in fluid systems.

System Builders Who Need Different Sizes

The fixed 12 mm tube diameter and 3/8 inch thread size limit use to matching ports. Builders requiring other tube diameters or thread standards must select alternative fittings. Systems that exceed 435 psi or 302 degrees F operating limits also need different components. This fitting does not serve high-pressure hydraulic circuits or high-temperature steam lines.

Maximum Operating Pressure Rating

The fitting is rated for a maximum operating pressure of 435 psi. This single figure determines whether the part can handle the system's working pressure. Exceeding this limit risks leaks or failure. Verify your circuit pressure before installation.

Highlights

  • Push-to-connect design speeds up installation
  • Brass construction resists corrosion in demanding environments
  • 12 mm tube fits standard pneumatic lines
  • 3/8 in MBSPT thread mates with common ports
  • Rated to 435 psi and 302 °F for high-pressure systems

Specifications

TypeDrain Components
BrandLegris
Model3609 12 17

Questions about this item

How can I verify the 3609 elbow is seated correctly after pushing the 12 mm tube in?

Push the tube until it stops, then pull gently; the collet teeth should grip and the tube must not come free.

What comes with the fitting and what extra items are required for installation?

The brass elbow includes pre-applied thread sealant; you only need a 12 mm tube and a 3/8 in MBSPT port.

Which version of the 3609 should I choose for a 12 mm tube and 3/8 in BSPT thread?

Select model 3609 12 17; it matches a 12 mm tube OD and a 3/8 in MBSPT connection.
