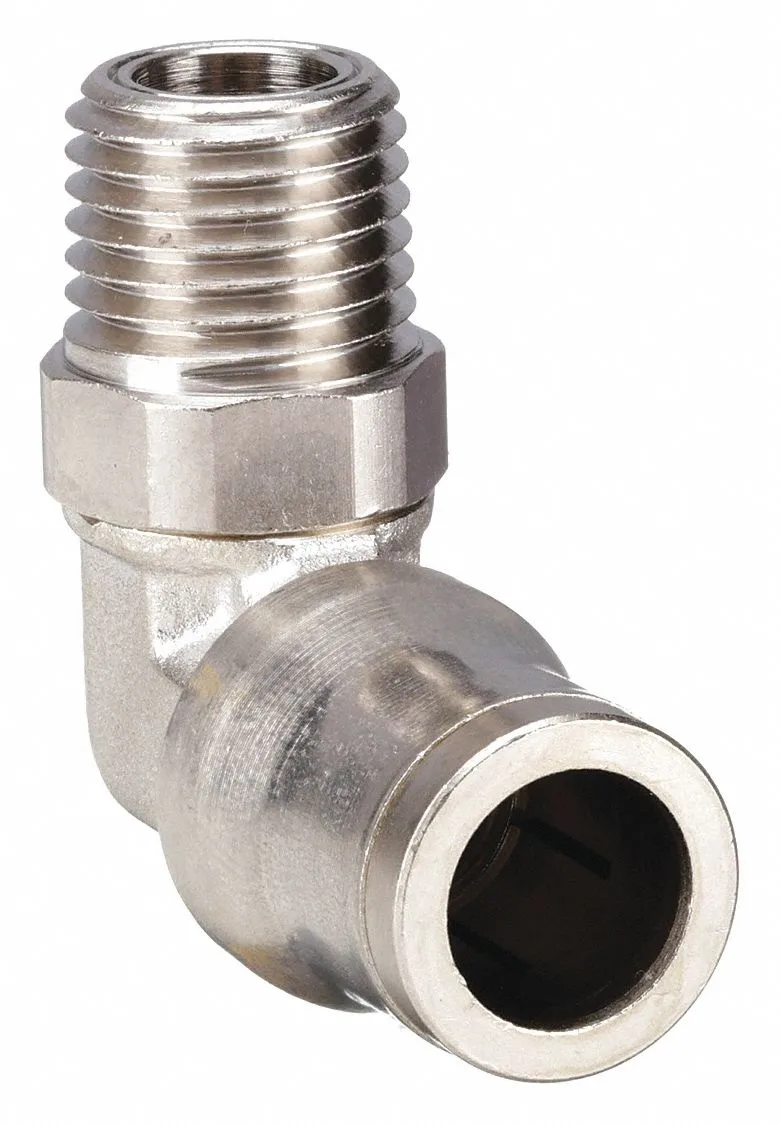

Small brass push-fit elbow fitting with silver finish

Legris

Legris 3609 04 11 Push-Fit Elbow Trap 5/32 in Brass

SKU CH-2Z83-SCM9C MPN 3609

Push-fit brass elbow connects 5/32 in tube to 1/8 in male NPT, rated 435 psi and 302 °F

  • TypeDrain Components
  • Push-fit connection installs without tools
  • Brass construction handles 435 psi working pressure
  • Rated to 302 °F for hot-fluid service
  • Pre-applied thread sealant speeds MNPT sealing
  • Compact 19/32 in elbow fits tight routing

Push-Fit Elbow Fitting for 5/32 in Tubing

This brass push-fit elbow connects 5/32 inch outer diameter tubing to a 1/8 inch male NPT thread. It is designed for lubrication applications where a compact right-angle joint is required. The fitting accepts metric or imperial tube sizes that match the 5/32 inch specification.

Rated 435 psi at 302 Degrees F

The brass body withstands a maximum operating pressure of 435 psi and a maximum operating temperature of 302 degrees Fahrenheit. These limits suit typical compressed-air and low-pressure fluid lines. No thread sealant is pre-applied, so installer must apply a compatible sealant before tightening.

Pre-Applied Thread Sealant Not Included

The package contains the single elbow fitting only; no sealant, tubing or tools are bundled. Users must supply their own thread sealant compatible with brass and the system fluid. The push-to-connect end requires no additional collets or clips for the rated tube size.

Highlights

  • Push-fit connection installs without tools
  • Brass construction handles 435 psi working pressure
  • Rated to 302 °F for hot-fluid service
  • Pre-applied thread sealant speeds MNPT sealing
  • Compact 19/32 in elbow fits tight routing

Specifications

TypeDrain Components
BrandLegris
Model3609 04 11

Questions about this item

How do I install the 3609 push-fit elbow and which step do people get wrong?

Push the 5/32 in tube firmly into Side A until it clicks, then thread the 1/8 in MNPT Side B into the port; the common error is not seating the tube past the internal collet.

What maintenance or replacement will the 3609 fitting need later?

Inspect the brass body and collet for corrosion or scale at each service interval; replace the fitting if the push-to-connect grip weakens or threads show damage.

What limit appears first on the 3609 elbow under sustained use?

The 435 psi pressure rating or 302 Degrees F temperature ceiling will be reached before the brass material itself yields.
