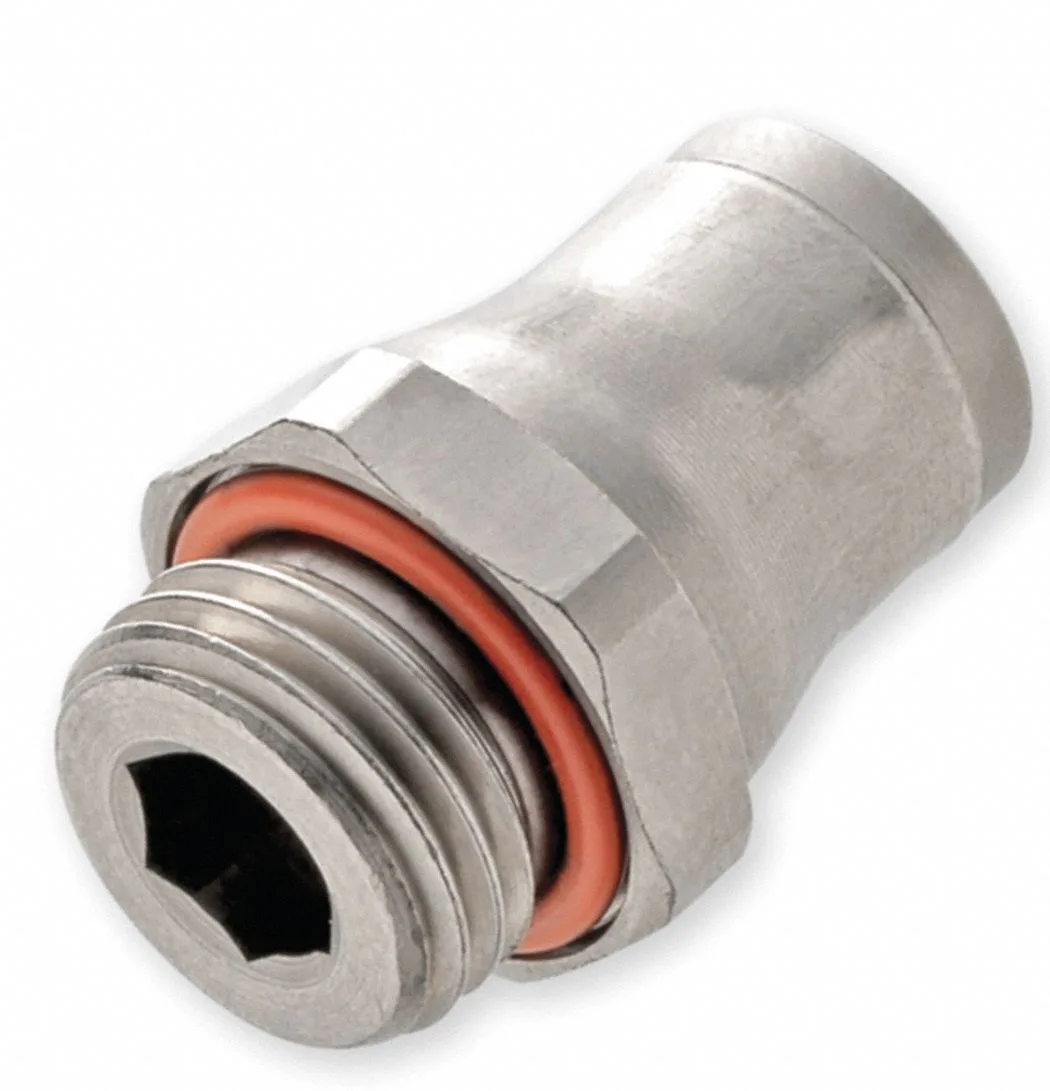

Brass push-fit adapter fitting, silver finish, 5/16 inch tube size

Legris

Legris 3601 08 13 Push-Fit Adapter Fitting 5/16 in Brass Silver

SKU CH-AV6R-REN1G

A brass push-fit adapter joining 8 mm tube to 1/4 in MBSPP at 435 psi and 302 °F

  • Push-to-connect design speeds up assembly
  • Brass C36000 construction resists corrosion in lubrication systems
  • Rated to 435 psi for reliable high-pressure performance
  • Withstands 302 °F maximum operating temperature
  • 18 mm overall length fits compact installations

Legris 3601 08 13 Brass Adapter

The Legris 3601 08 13 is a push-fit adapter fitting made from C36000 brass with a silver finish. It connects 8 mm outer-diameter tubing to a 1/4 in MBSPP thread for lubrication circuits. The one-piece body accepts tube insertion without tools and suits maintenance engineers and OEM assemblers building fluid-distribution systems.

435 psi and 302 °F operating envelope

Rated for 435 psi maximum operating pressure and 302 °F maximum temperature, the fitting handles typical shop-air and light-hydraulic lubrication lines with headroom for pressure spikes. It is not intended for high-pressure hydraulic power circuits or steam service where ratings would be exceeded. The 18 mm overall length keeps the joint compact inside tight machine envelopes.

Pre-applied sealant excluded

The supplier data confirms pre-applied thread sealant is not included, so installers must supply compatible thread tape or paste for the MBSPP end. No tube inserts, collets or removal tools are bundled with the fitting. Buyers needing a sealed thread out of the box or a complete push-fit kit with tubing will need to source those items separately.

Highlights

  • Push-to-connect design speeds up assembly
  • Brass C36000 construction resists corrosion in lubrication systems
  • Rated to 435 psi for reliable high-pressure performance
  • Withstands 302 °F maximum operating temperature
  • 18 mm overall length fits compact installations

Specifications

BrandLEGRIS

Questions about this item

Will the 8 mm push-to-connect side seal reliably on my existing 5/16 in tubing?

The push-to-connect side is designed for 8 mm tube outer diameter, which matches 5/16 in tubing, and the brass C36000 body handles up to 435 psi and 302 °F.

How can I confirm the MBSPP thread is sealing properly after installation?

Pressurise the system to working pressure and check the 1/4 in MBSPP thread joint for leaks; the brass fitting rated to 435 psi should hold without seepage.

Does the fitting come with thread sealant on the MBSPP side or do I need to buy it separately?

The specifications state pre-applied thread sealant is not included, so you must supply your own sealant for the 1/4 in MBSPP thread.
