Brass push-fit trap 10 mm OD by 3/8 NPT silver finish

Legris

Legris 3175 10 18 Push-Fit Trap 10mm OD x 3/8 NPT

SKU CH-BQQF-NATWE MPN 3175

A push-fit trap connects 10 mm tubing to a 3/8 NPT thread with pre-applied sealant, rated to 290 psi and 175 Degrees F

  • TypeDrain Components
  • MaterialHAWA
  • Push-to-connect design enables tool-free installation on 10 mm tubing
  • Male 3/8 NPT thread mates directly with standard pipe fittings
  • Brass C36000 body rated to 290 psi for reliable pressure handling
  • Pre-applied thread sealant speeds assembly and reduces leak risk
  • Operates up to 175 °F for hot-fluid and vacuum applications

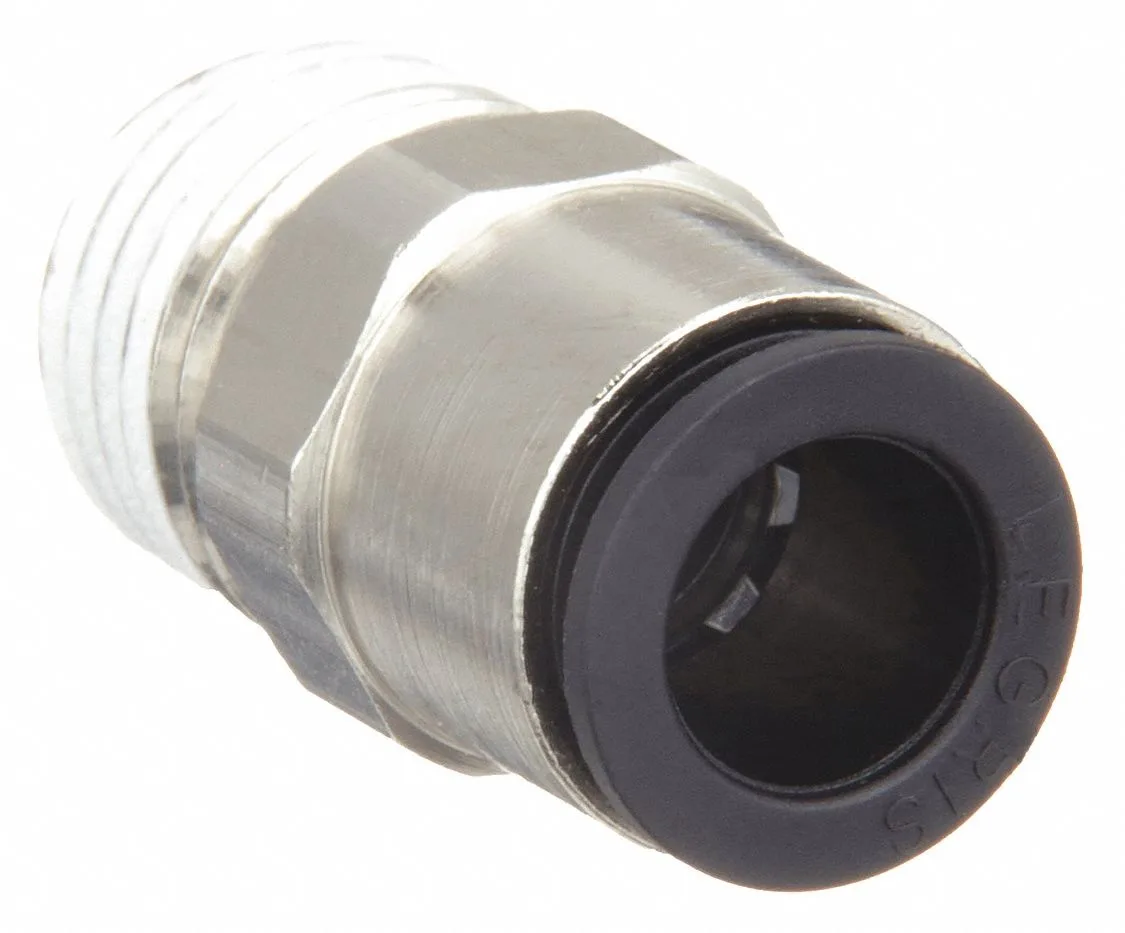

Legris Push-Fit Trap 10mm OD

The Legris 3175 10 18 is a brass push-fit trap designed for vacuum applications, connecting a 10 mm outer diameter tube to a 3/8 inch male NPT thread. It features a pre-applied thread sealant for simplified installation and a C36000 brass body rated for 290 psi maximum operating pressure. The fitting has an overall length of 21/32 inch and operates up to 175 degrees Fahrenheit.

Suitable Uses and Limitations

This trap suits installers needing a compact, tool-free connection between metric tubing and NPT ports in vacuum lines. It is not for buyers who require a different tube diameter, thread standard, or a fitting rated beyond 290 psi and 175 degrees Fahrenheit. The push-to-connect design does not accommodate flared or compression tube ends.

Deciding Specification

The critical specification is the combination of a 10 mm push-to-connect inlet and a 3/8 inch male NPT outlet in a single brass body. This exact interface match determines whether the trap integrates directly into the existing plumbing without adapters.

Highlights

  • Push-to-connect design enables tool-free installation on 10 mm tubing
  • Male 3/8 NPT thread mates directly with standard pipe fittings
  • Brass C36000 body rated to 290 psi for reliable pressure handling
  • Pre-applied thread sealant speeds assembly and reduces leak risk
  • Operates up to 175 °F for hot-fluid and vacuum applications

Specifications

TypeDrain Components
MaterialHAWA
BrandLegris
Model3175 10 18

Questions about this item

What does the 10 mm outer diameter mean when I install the fitting?

The 10 mm outer diameter matches the tube size that pushes into the fitting for a secure, tool-free connection.

How does the 3/8 NPT thread affect what I can connect to it?

The 3/8 NPT male thread seals into a matching female port, and the pre-applied sealant helps prevent leaks up to 290 psi.

What space do I need for the 21/32 in overall length?

The fitting extends 21/32 in from the port face, so allow that clearance behind the connection point for installation.
