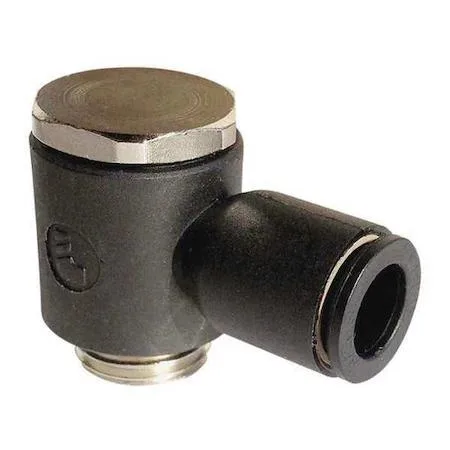

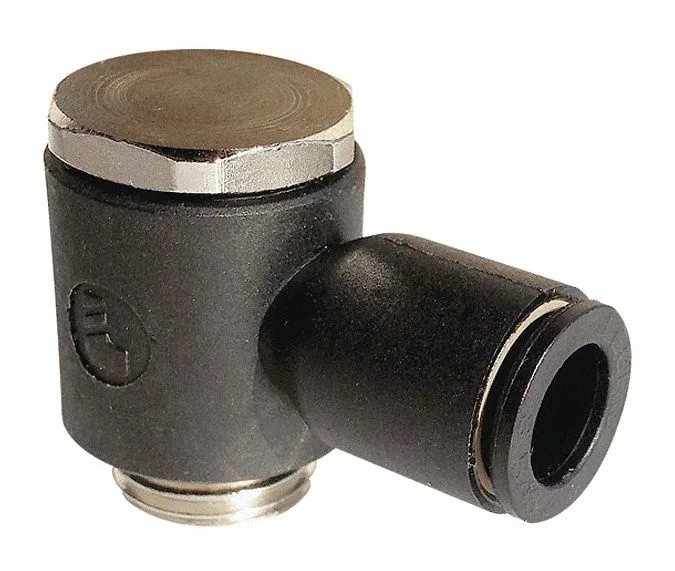

Black 90-degree push-fit adapter elbow with banjo fitting

Legris

Legris 3118 04 20 Push-Fit Adapter Trap

SKU CH-8R28-3R8BG MPN 3118

Connects 5/32 inch or 4mm tubing to a #10-32 banjo port at 90 degrees with a 290 psi rating

  • TypeDrain Components
  • MaterialHAWA
  • ColorBlack
  • Push-to-connect design speeds up air line assembly
  • 90-degree banjo elbow routes tubing in tight spaces
  • Fiberglass-reinforced nylon body resists impact and heat up to 176 Degrees F
  • Rated for 290 psi maximum operating pressure
  • Pre-applied thread sealant on #10-32 fitting ensures leak-free seal

Push-Fit Adapter for Air Lines

This Legris 3118 04 20 fitting connects 5/32 in or 4 mm tubing to a #10-32 thread using a push-to-connect banjo elbow. It suits pneumatic circuits that must turn ninety degrees in tight spaces and is supplied new in black fiberglass-reinforced nylon.

Critical Connection Geometry

The defining specification is the 90-degree banjo elbow that joins a push-fit tube port to a #10-32 male thread, allowing a right-angle branch without extra fittings. Maximum operating pressure is 290 psi and maximum temperature is 176 degrees F, so the part must not be used beyond those limits.

Pre-Applied Sealant Benefit

Thread sealant is already applied to the #10-32 thread, which removes the need for tape or paste during assembly and reduces the risk of leaks at the connection point. No additional accessories or software are included with this fitting.

Highlights

  • Push-to-connect design speeds up air line assembly
  • 90-degree banjo elbow routes tubing in tight spaces
  • Fiberglass-reinforced nylon body resists impact and heat up to 176 Degrees F
  • Rated for 290 psi maximum operating pressure
  • Pre-applied thread sealant on #10-32 fitting ensures leak-free seal

Specifications

TypeDrain Components
MaterialHAWA
ColorBlack
BrandLegris
Model3118 04 20

Questions about this item

What does the 290 psi rating mean when this adapter is installed in a pneumatic line?

The 290 psi maximum operating pressure is the highest air pressure the push-fit connection can sustain continuously without leaking or rupturing at 176 °F.

How does the #10-32 thread size limit what I can connect on the banjo side?

The #10-32 thread only mates with ports or fittings cut to that exact UNF pitch, so it cannot be used with 1/8 NPT or metric M5 ports without an adapter.

What clearance does the 25/32 in overall length and 90 degree banjo shape need behind the mounting surface?

The elbow projects roughly 25/32 in from the port face and swings 90 degrees sideways, so allow at least that depth plus tube-bend radius behind the panel.
