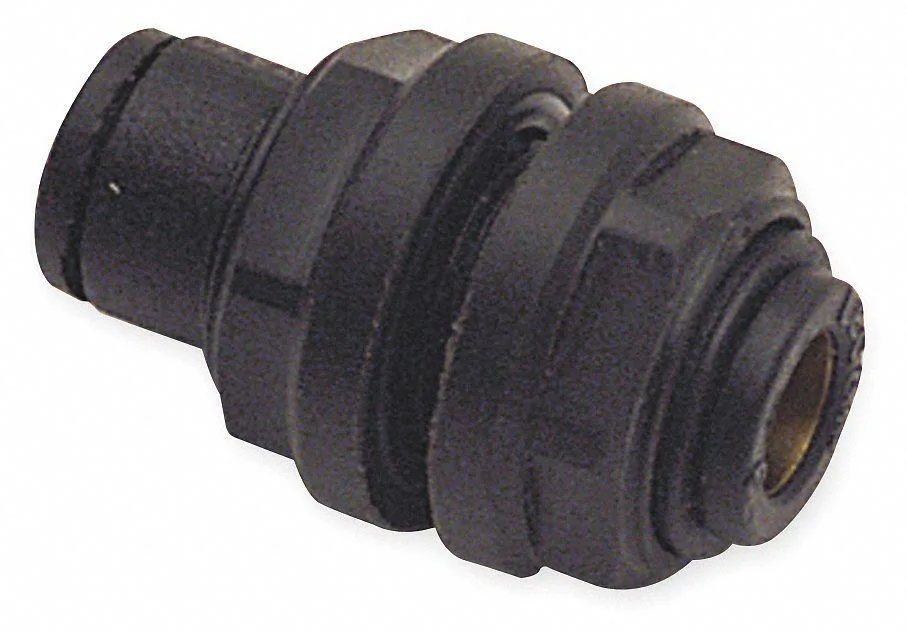

Black Legris 3116 bulkhead union, 10 mm push-fit fitting

Legris

Legris 3116 10 00 Bulkhead Union 10 mm trap

SKU CH-3MXT-DX4E5 MPN 3116

A push-fit bulkhead union joins two 10 mm tubes through a panel and handles 290 psi at 176 Degrees F

  • TypeDrain Components
  • MaterialHAWA
  • ColorBlack
  • Push-to-connect design speeds installation with no tools required
  • 10 mm tube compatibility fits standard pneumatic lines
  • Fibre-reinforced nylon body resists impact and corrosion
  • Rated to 290 psi for reliable high-pressure service
  • Withstands 176 °F continuous operating temperature

Fitting for 10 mm tube

The Legris 3116 bulkhead union joins two 10 mm tubes through a panel or bulkhead. Push-to-connect ends on both sides allow tool-free assembly in compressed-air systems. The body is moulded from black fibre-glass-reinforced nylon for strength and chemical resistance.

Installers who need a straight-through panel joint

Suited to pneumatic circuits that pass through a bulkhead and require a secure, demountable seal at 10 mm. Not intended for liquid service, for tube sizes other than 10 mm, or for applications exceeding the rated pressure and temperature limits.

Rated to 290 psi at 176 °F

The fitting withstands a maximum operating pressure of 290 psi and a maximum operating temperature of 176 °F. Overall length is 43 mm. These figures define the safe operating envelope for the installation.

Highlights

  • Push-to-connect design speeds installation with no tools required
  • 10 mm tube compatibility fits standard pneumatic lines
  • Fibre-reinforced nylon body resists impact and corrosion
  • Rated to 290 psi for reliable high-pressure service
  • Withstands 176 °F continuous operating temperature

Specifications

TypeDrain Components
MaterialHAWA
ColorBlack
BrandLegris
Model3116 10 00

Questions about this item

Does the 3116 10 00 bulkhead union come with tubing or sealant, or must they be bought separately?

The fitting is sold as a pack of ten push-to-connect unions for 10 mm tube. Tubing and thread sealant are not included and must be sourced separately.

Which version of the 3116 should I choose for a 10 mm air line?

The 3116 10 00 is the 10 mm outside-diameter model. Select this part when both sides of the bulkhead need a 10 mm push-to-connect connection.

What does the 290 psi rating mean when the union is installed in a compressed-air system?

It indicates the maximum operating pressure the fiberglass-reinforced nylon body can withstand at up to 176 °F. System pressure must stay at or below 290 psi.
