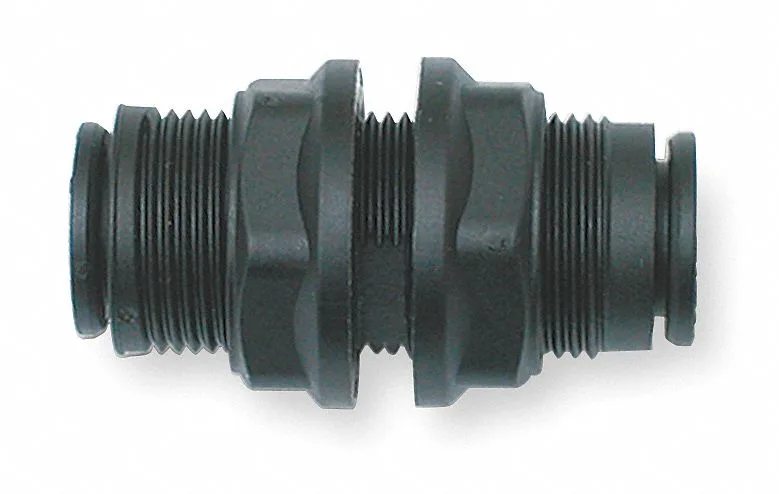

Black push-fit union trap fitting, 5/32 inch tube size

Legris

Legris 3116 04 00 Push-Fit Union Trap 5/32 in

SKU CH-PZF1-TBVGJ MPN 3116

Push-fit union connects two 5/32 in tubes for air lines up to 290 psi and 176 °F

  • TypeDrain Components
  • MaterialHAWA
  • ColorBlack
  • Push-fit connection enables tool-free installation in seconds
  • Fiberglass-reinforced nylon body resists impact and chemical exposure
  • Rated for 290 psi working pressure in air systems
  • Operates reliably up to 176 °F in demanding environments
  • Compact 1-inch overall length fits tight plumbing spaces

Push-Fit Union for 5/32 in Tubing

The Legris 3116 04 00 is a black push-fit union fitting made from fiberglass-reinforced nylon. It connects two lengths of 5/32 inch outer-diameter tubing in compressed-air systems. The fitting suits technicians who need a quick, tool-free joint in pneumatic circuits.

Integration into a pneumatic circuit

Each end uses a push-to-connect port that grips the tube when it is inserted and releases with a press of the collet. No thread sealant or wrenches are required, freeing bench time and reducing the number of separate components in the line. The compact one-inch overall length keeps the assembly short.

Pressure, temperature and material limits

The union is rated for a maximum operating pressure of 290 psi and a maximum operating temperature of 176 degrees Fahrenheit. The HAWA-grade nylon body resists typical shop air contaminants and does not corrode. No dynamic seals or moving parts are present, so noise and heat generation are negligible in normal use.

Highlights

  • Push-fit connection enables tool-free installation in seconds
  • Fiberglass-reinforced nylon body resists impact and chemical exposure
  • Rated for 290 psi working pressure in air systems
  • Operates reliably up to 176 °F in demanding environments
  • Compact 1-inch overall length fits tight plumbing spaces

Specifications

TypeDrain Components
MaterialHAWA
ColorBlack
BrandLegris
Model3116 04 00

Questions about this item

Will the 290 psi rating hold during continuous compressed-air service?

The fitting is rated for a maximum operating pressure of 290 psi, so it will hold that pressure as long as the system stays within the limit.

Does the fiberglass-reinforced nylon body get hot or noisy when air runs all day?

The material handles up to 176 °F without degradation, and a static push-fit union produces no mechanical noise during constant flow.

What tube size must I already have for this union to connect?

Both ends accept 5/32 in outer-diameter tubing, so you need matching 5/32 in tube on each side.
