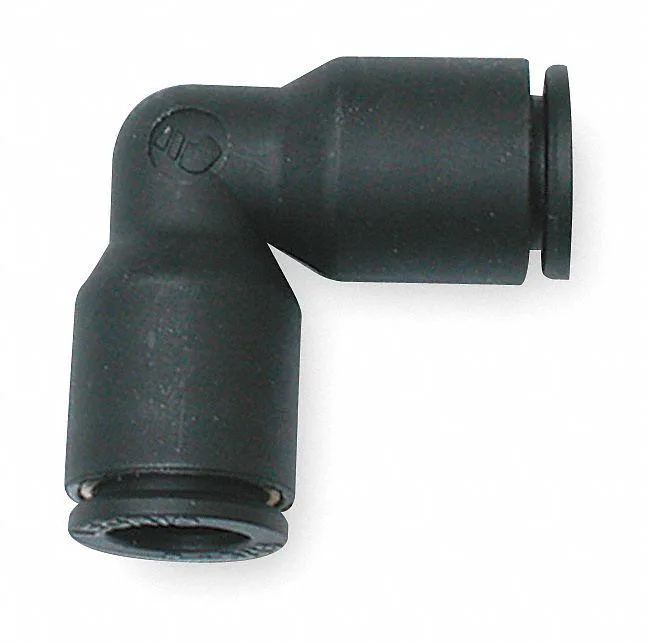

Black push-fit elbow fitting with two 1/4 inch tube connections

Legris

Legris 3102 56 00 Push-Fit Elbow Fitting 1/4 in

SKU CH-363Y-EDXRR MPN 3102

Push-fit elbow connects two 1/4 in tubes at 90 degrees, rated to 290 psi and 176 °F in black fiberglass-reinforced nylon

  • TypeDrain Components
  • MaterialHAWA
  • ColorBlack
  • Push-to-connect elbow speeds up air-line assembly
  • 1/4 in tube size matches standard pneumatic circuits
  • Fiberglass-reinforced nylon body resists impact and chemicals
  • Rated to 290 psi and 176 °F for demanding shop air systems
  • Compact 15/16 in length fits tight routing spaces

Product Identity

The Legris 3102 56 00 is a push-fit elbow fitting designed for air applications. It connects two tubes of 1/4 in outer diameter using push-to-connect ends on both sides. The body is made from fiberglass-reinforced nylon in black. It is suited for pneumatic systems that require a 90-degree change in direction.

Installation Check

Verify that the tubing in your system has a 1/4 in outer diameter to match the push-to-connect ports. Confirm the operating pressure does not exceed 290 psi and the temperature stays below 176 Degrees F. No thread sealant is included or pre-applied, so ensure the tubing is clean and cut squarely for a secure seal. The overall length is 15/16 in, so check available space at the connection point.

Suitability

This fitting suits installers who need a compact, tool-free elbow for 1/4 in pneumatic tubing. It is not for buyers who require threaded connections, larger tube sizes, or higher pressure and temperature ratings. It also does not suit applications where pre-applied sealant or metal construction is specified.

Highlights

  • Push-to-connect elbow speeds up air-line assembly
  • 1/4 in tube size matches standard pneumatic circuits
  • Fiberglass-reinforced nylon body resists impact and chemicals
  • Rated to 290 psi and 176 °F for demanding shop air systems
  • Compact 15/16 in length fits tight routing spaces

Specifications

TypeDrain Components
MaterialHAWA
ColorBlack
BrandLegris
Model3102 56 00

Questions about this item

Does the push-fit elbow include any tube sections or sealant in the box?

The fitting is a single 1/4 in elbow made of fiberglass-reinforced nylon; no tube lengths or pre-applied thread sealant are supplied.

When should I choose the 1/4 in version versus a different tube size?

Select this 3102 56 00 model when both ports of your circuit use 1/4 in outside-diameter tubing; other sizes are separate part numbers.

What does the 290 psi rating mean once the fitting is installed in my air line?

It certifies the joint will hold up to 290 psi at temperatures up to 176 °F without leaking or blowing off.
