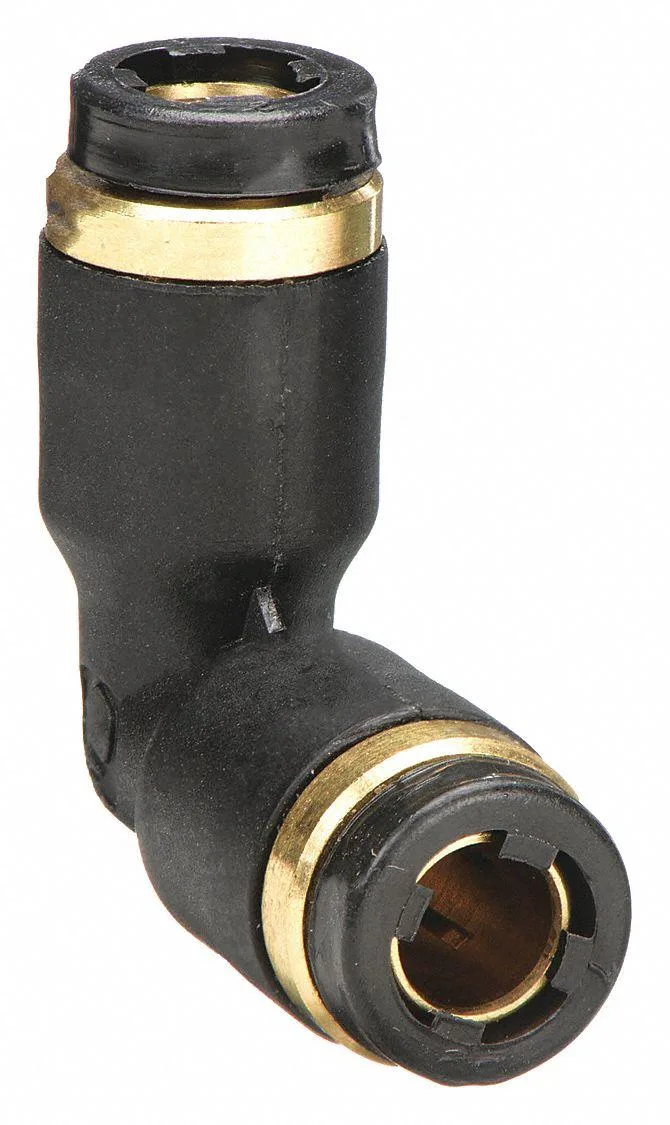

Black push-fit elbow fitting, 3/16 inch tube size, fiberglass-reinforced nylon

Legris

Legris 3102 55 00 Push-Fit Elbow Trap 3/16 in

SKU CH-KG1V-SPYXE MPN 3102

Push-fit elbow connects two 3/16 in tubes at up to 290 psi and 176 Degrees F

  • TypeDrain Components
  • ColorBlack
  • Push-fit connection enables quick tool-free installation
  • 3/16 in tube size on both ends fits standard pneumatic lines
  • Fiberglass-reinforced nylon body resists corrosion and impact
  • Rated for 290 psi maximum operating pressure
  • Withstands temperatures up to 176 degrees F

Push-Fit Elbow Fitting for 3/16 in Tubing

This push-fit elbow fitting joins two lengths of 3/16 in tubing in pneumatic circuits. The fiberglass-reinforced nylon body withstands pressures up to 290 psi and temperatures up to 176 Degrees F. No tools are required for installation. It suits maintenance teams and OEM assemblers who need a quick, leak-tight corner connection.

Suited for low-pressure air lines with 3/16 in tube

Installers working with larger tube diameters, higher pressure ratings or different connection types will need alternative fittings. The pre-applied thread sealant is not included, so threads must be sealed separately if used. Buyers requiring metal construction or specialized chemical resistance should look elsewhere.

Maximum operating pressure 290 psi

This single figure determines whether the fitting matches the system design pressure. Exceeding it risks leakage or failure. Verify the circuit pressure before specifying this part.

Highlights

  • Push-fit connection enables quick tool-free installation
  • 3/16 in tube size on both ends fits standard pneumatic lines
  • Fiberglass-reinforced nylon body resists corrosion and impact
  • Rated for 290 psi maximum operating pressure
  • Withstands temperatures up to 176 degrees F

Specifications

TypeDrain Components
ColorBlack
BrandLegris
Model3102 55 00

Questions about this item

Will the 3/16 in push-fit connections on this Legris 3102 elbow mate with existing nylon tubing of the same outside diameter?

Yes, both ends accept 3/16 in tube outer diameter with push-to-connect action, so compatible tubing of that size will seat without tools.

How can I verify the fitting is sealed and flowing correctly after installation?

Pressurise the line up to 290 psi at room temperature; no leakage at the push-fit joints and unrestricted airflow confirm proper seating.

Does the black fiberglass-reinforced nylon elbow come with any sealant, lubricant or mounting hardware in the package?

The supplier data states pre-applied thread sealant is not included and lists no additional accessories, so only the fitting itself is supplied.
