Black fiberglass-reinforced nylon push-fit elbow fitting 12mm

Legris

Legris 3102 12 00 Push-Fit Elbow Fitting 12mm

SKU CH-W725-Q29FC MPN 3102

Connects two 12 mm tubes at a right angle using push-fit ends rated to 290 psi and 176 °F

  • TypeDrain Components
  • MaterialHAWA
  • ColorBlack
  • Push-fit design enables fast, tool-free installation
  • 12 mm tube size fits standard pneumatic lines
  • Fiberglass-reinforced nylon resists impact and chemical exposure
  • 290 psi rating handles high-pressure air systems
  • 176 °F maximum temperature suits demanding environments

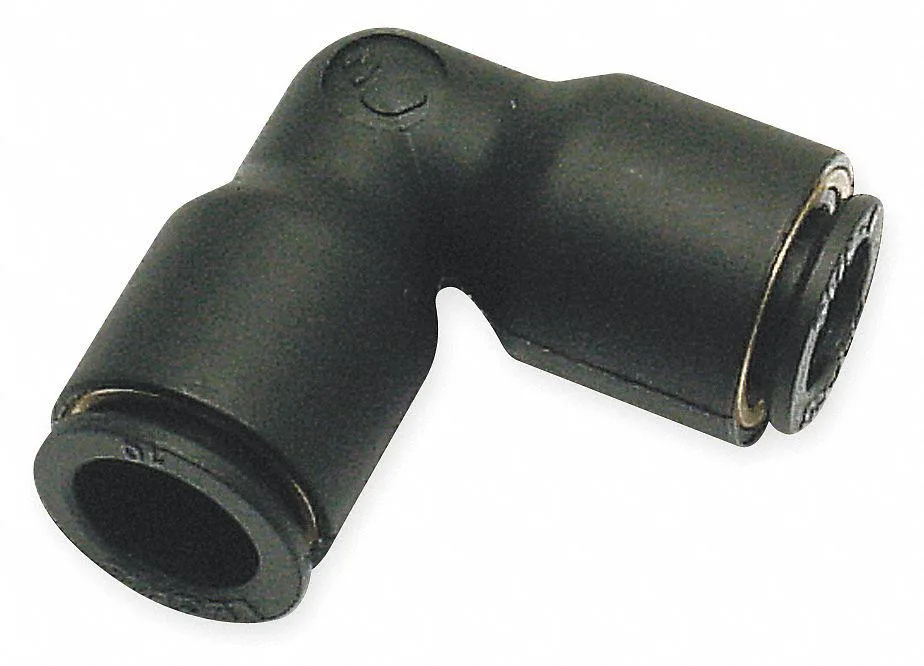

Legris 12mm push-fit elbow

The Legris 3102 12 00 is a push-fit elbow fitting designed for 12mm tube outer diameter on both ports. It connects two pneumatic lines at a right angle without tools or separate sealant. The fiberglass-reinforced nylon body resists impact and vibration in compressed-air installations.

Upgrade from threaded or barbed elbows

This fitting replaces threaded elbows that require tape and wrenches or barbed fittings that need clamps. The push-to-connect design cuts assembly time and eliminates leak paths from loose threads or degraded clamps. It is not suited for systems that demand metal-to-metal sealing or temperatures beyond the rated limit.

Sustained pressure and temperature performance

Rated for 290 psi maximum operating pressure and 176 degrees F maximum operating temperature, the fitting maintains seal integrity under continuous pneumatic load. The reinforced nylon resists creep during extended pressurisation cycles. Overall length is 40 mm, keeping the joint compact inside cabinets or machine frames.

Highlights

  • Push-fit design enables fast, tool-free installation
  • 12 mm tube size fits standard pneumatic lines
  • Fiberglass-reinforced nylon resists impact and chemical exposure
  • 290 psi rating handles high-pressure air systems
  • 176 °F maximum temperature suits demanding environments

Specifications

TypeDrain Components
MaterialHAWA
ColorBlack
BrandLegris
Model3102 12 00

Questions about this item

What tube size does the 12 mm push-fit elbow accept?

The fitting takes 12 mm outer-diameter tubing on both push-to-connect ports.

How do you install the push-fit elbow, and what step is often missed?

Push each tube firmly into the fitting until it seats; the common miss is not pushing far enough to engage the internal grab ring.

When should the fiberglass-reinforced nylon elbow be replaced?

Replace it if you see cracking, deformation or leakage at the 290 psi / 176 °F rating limits.
