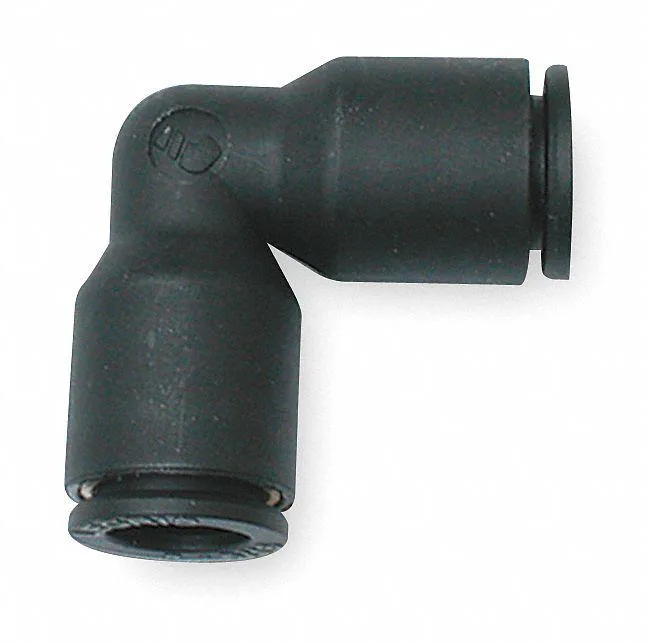

Black push-fit elbow fitting with two 8 mm tube connections

Legris

Legris 3102 08 00 Union Elbow 8 mm 290 psi PK10

SKU CH-SCHG-S9D9V MPN 3102

Connects two 8 mm tubes at a right angle with push-to-connect ends rated for 290 psi

  • TypeDrain Components
  • Push-to-connect ends speed up air-line assembly
  • 8 mm tube size fits standard pneumatic circuits
  • 290 psi rating handles demanding compressed-air systems
  • Fibre-reinforced nylon body resists impact and corrosion
  • Pack of ten reduces per-fitting cost

Union Elbow Fitting 8 mm 290 psi

The Legris 3102 union elbow joins two 8 mm tubes at a 90-degree angle using push-to-connect ends. The fiberglass-reinforced nylon body is rated for 290 psi and 176 degrees F. A pack contains ten identical black fittings.

Suited for pneumatic circuits needing a compact

Installers who need a quick, tool-free joint on 8 mm tubing within the pressure and temperature limits will find it appropriate. Systems that require metal threads, higher pressure ratings, different tube sizes or integrated sealant should use other components.

Push-to-connect on both ends with 8 mm tube size

The fitting accepts 8 mm outer-diameter tube on each side without tools or clamps. Both ports share the same connection method and diameter, so the tube size must match exactly for a leak-free seal.

Highlights

  • Push-to-connect ends speed up air-line assembly
  • 8 mm tube size fits standard pneumatic circuits
  • 290 psi rating handles demanding compressed-air systems
  • Fibre-reinforced nylon body resists impact and corrosion
  • Pack of ten reduces per-fitting cost

Specifications

TypeDrain Components
BrandLegris
Model3102 08 00

Questions about this item

What tube size do I need for the 8 mm push-to-connect ports on this elbow?

The fitting accepts 8 mm outer-diameter tubing on both push-to-connect ends.

Can I join this 290 psi fiberglass-reinforced nylon elbow to older metal compression fittings in the same line?

Yes — the push-to-connect ports seal on the tube OD, so the elbow works alongside legacy compression joints without adapters.

How can I confirm the 3102 08 00 union elbow is seated correctly after installation?

Push each tube in until it stops, then pull gently; a secure grip and no leakage at 290 psi shows the collet has engaged.
