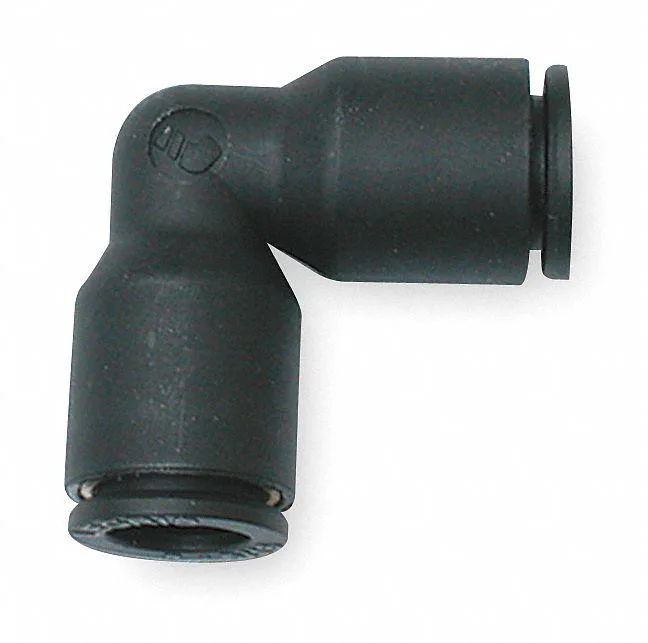

Black nylon 90-degree push-fit elbow fitting 4 mm tube pack of ten

Legris

Legris 3102 04 00 90° Elbow 4 mm Nylon PK10

SKU CH-2JEY-9W6N8 MPN 3102

A push-fit 90° elbow joins two 4 mm tubes, made from fibre-glass reinforced nylon rated to 290 psi and 176 °F, supplied in a pack of ten

  • TypeDrain Components
  • MaterialHAWA
  • ColorBlack
  • Connects 4 mm tubing at right angles
  • Push-to-connect ends enable tool-free installation
  • Fiberglass-reinforced nylon withstands 290 psi pressure
  • Rated for continuous use up to 176 °F
  • Pack of ten fittings for multiple connections

4 mm Push-Fit Elbow for Air Lines

The Legris 3102 04 00 is a 90-degree elbow fitting designed for 4 mm outer-diameter tubing in pneumatic systems. It suits technicians and engineers who need a quick, tool-free connection in compressed-air circuits. The pack contains ten identical fittings for multiple installation points.

Fibre-Reinforced Nylon Body with Pre-Applied Sealant

The fitting moulding uses fibre-reinforced nylon rated to 290 psi and 176 Degrees F, giving mechanical strength without metal corrosion. Both ends are push-to-connect, so tubing seats with a simple push and releases with the collet press. No thread sealant is included or required on the push-fit ports.

Tool-Free Install with One Common Pitfall

Installation takes seconds: cut the tube square, deburr, and push until the grip ring engages. The most frequent error is an angled or rough cut that lets the tube bypass the seal, causing a leak at 290 psi. Always verify full insertion by pulling gently before pressurising the line.

Highlights

  • Connects 4 mm tubing at right angles
  • Push-to-connect ends enable tool-free installation
  • Fiberglass-reinforced nylon withstands 290 psi pressure
  • Rated for continuous use up to 176 °F
  • Pack of ten fittings for multiple connections

Specifications

TypeDrain Components
MaterialHAWA
ColorBlack
BrandLegris
Model3102 04 00

Questions about this item

Will the push-fit nylon elbow need periodic replacement of its internal seals or collet?

The 4 mm push-to-connect elbow is moulded from fiberglass-reinforced nylon with no user-serviceable seals or collet; it is replaced as a complete unit if damaged.

What pressure or temperature limit will be reached first during continuous compressed-air use?

The fitting is rated to 290 psi maximum operating pressure and 176 °F maximum operating temperature; whichever limit is reached first in your system governs safe continuous use.

Does the nylon body heat up or transmit vibration noise when air runs through it all day?

The 19 mm long fiberglass-reinforced nylon body remains near ambient temperature and does not amplify vibration or flow noise in typical compressed-air service.
