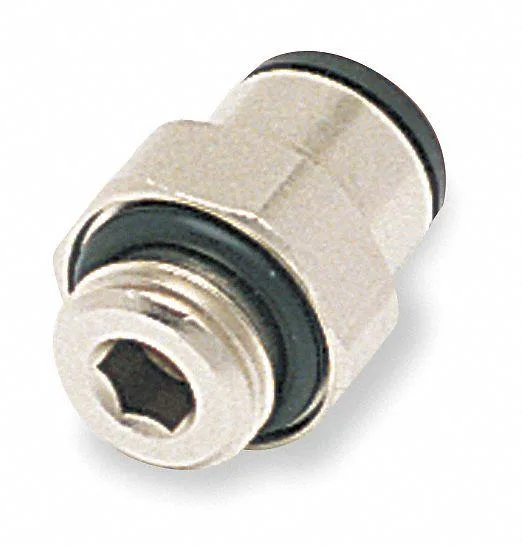

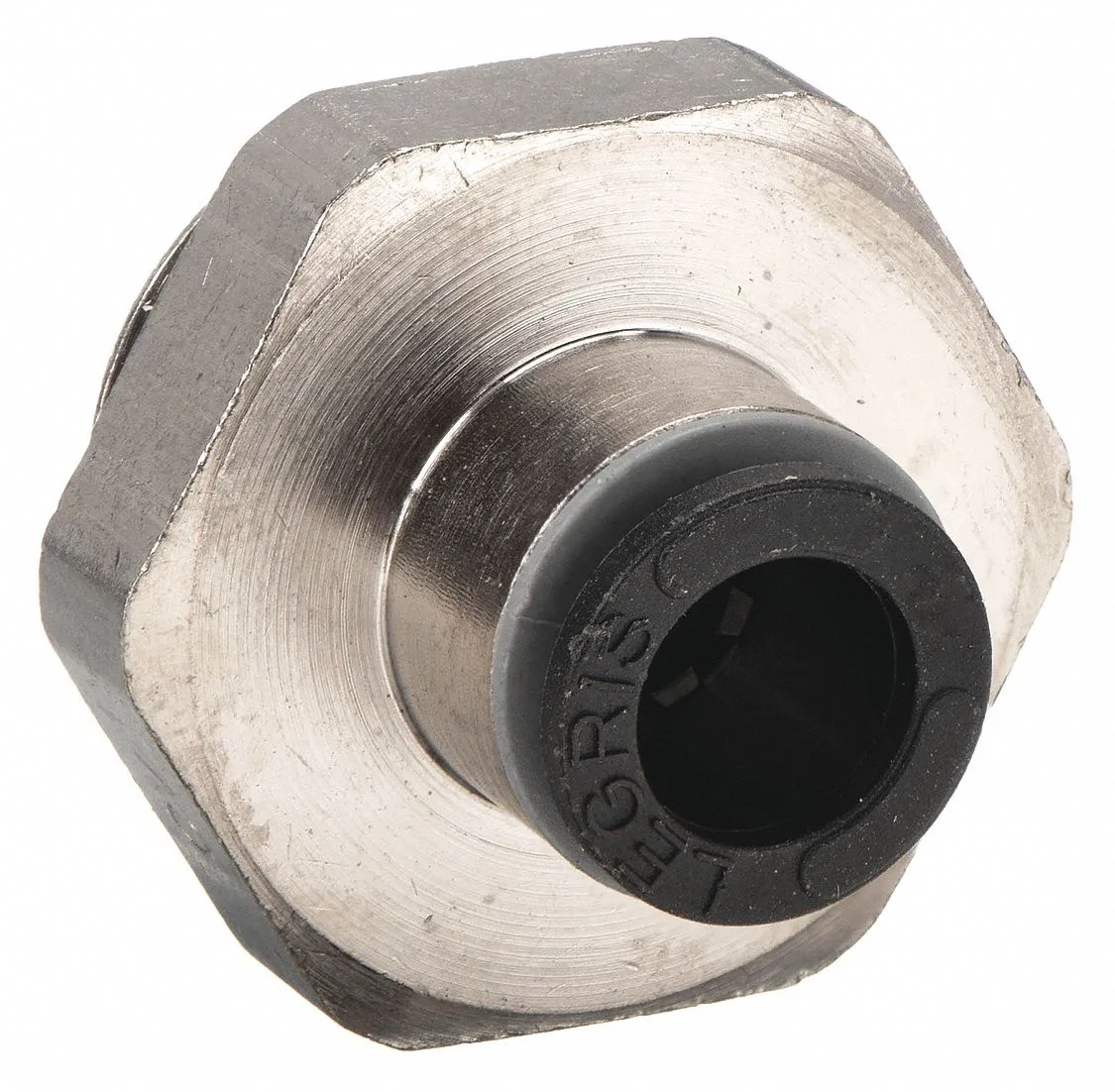

Brass push-fit male connector, 10 mm tube to 1/2 in thread, silver finish

Legris

Legris 3101 10 21 Trap 10 mm 1/2 in Brass

SKU CH-REMH-VQDCF MPN 3101

A push-fit brass adapter connects 10 mm tube to a 1/2 in MBSPP thread, rated to 290 psi and 175 °F

  • TypeDrain Components
  • MaterialHAWA
  • Push-to-connect 10 mm tube for quick vacuum line assembly
  • 1/2 in MBSPP thread fits standard plumbing ports
  • Brass body withstands 290 psi operating pressure
  • Rated to 175 °F for demanding fluid handling
  • Compact 18 mm overall length suits tight installations

Push-Fit Brass Adapter for Vacuum Lines

This push-fit brass adapter connects 10 mm tubing to a 1/2 inch MBSPP thread in vacuum applications. The fitting uses a push-to-connect design on the tube side for quick assembly without tools. It is rated for 290 psi maximum operating pressure and 175 Degrees F maximum operating temperature. The overall length is 18 1/2 mm.

Suitable for Pneumatic

Engineers specifying a 1/2 inch MBSPP connection with 10 mm push-to-connect tube ends will find this part matches the requirement. Installers needing a different thread standard, a different tube diameter, or a higher temperature rating should select an alternative fitting. The brass construction suits general industrial environments.

10 mm Tube OD to 1/2 Inch MBSPP Thread

The decisive specification is the combination of a 10 mm push-to-connect port and a 1/2 inch MBSPP thread on a single fitting. This exact interface match determines whether the adapter integrates into the existing circuit. Verify both dimensions against the system design before ordering.

Highlights

  • Push-to-connect 10 mm tube for quick vacuum line assembly
  • 1/2 in MBSPP thread fits standard plumbing ports
  • Brass body withstands 290 psi operating pressure
  • Rated to 175 °F for demanding fluid handling
  • Compact 18 mm overall length suits tight installations

Specifications

TypeDrain Components
MaterialHAWA
BrandLegris
Model3101 10 21

Questions about this item

What tube diameter and thread size does the 10 mm push-fit end and the 1/2 in BSPP end accept?

The push-to-connect side takes a 10 mm outer-diameter tube, while the male BSPP side has a 1/2 in thread for a matching female port.

How is the brass push-fit adapter installed, and what common step is missed?

Push the 10 mm tube firmly into the collet until it seats, then tighten the 1/2 in BSPP thread into the female port; the step often missed is applying thread sealant because none is pre-applied.

What operating limits should be checked before the fitting needs replacement?

The brass body is rated for 290 psi maximum pressure and 175 °F maximum temperature; exceed either limit and the fitting should be replaced.
