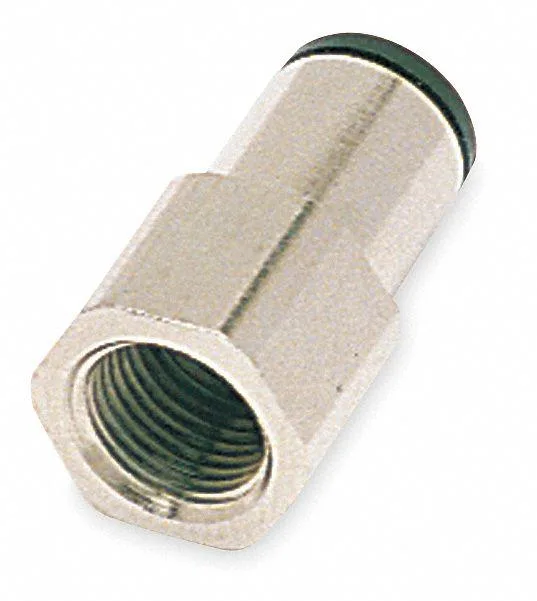

Brass push-fit adapter fitting, silver finish, compact cylindrical shape

Legris

Legris 3014 04 11 Push-Fit Adapter Fitting 5/32 in Brass

SKU CH-BY2A-C596F MPN 3014

A push-fit adapter connects 5/32 in tubing to a 1/8 in FNPT thread with brass construction rated to 290 psi and 175 °F

  • TypeDrain Components
  • MaterialHAWA
  • Push-to-connect design speeds vacuum-line assembly
  • Brass C36000 construction resists corrosion in fluid systems
  • 1/8 in FNPT thread mates with standard pipe ports
  • 290 psi rating handles demanding pneumatic pressure
  • 175 °F tolerance suits high-temperature operating environments

Push-Fit Adapter for Vacuum Lines

This Legris 3014 04 11 adapter joins 5/32 in tubing to a 1/8 in FNPT thread using a brass push-to-connect design. The C36000 brass body is rated for 290 psi and 175 Degrees F, making it suitable for vacuum applications in automotive and plumbing systems.

Suited for metric-to-imperial transitions

Installers who need a compact, tool-free joint between 5/32 in tube and 1/8 in female pipe threads will find this fitting matches both the diameter and thread spec. Builders requiring a different tube size, a male thread, or a non-brass material should select another part.

5/32 in tube to 1/8 in FNPT

The single specification that decides fit is the combination of a 5/32 in push-to-connect port and a 1/8 in FNPT port; if either dimension differs from the system you are assembling, this adapter will not connect.

Highlights

  • Push-to-connect design speeds vacuum-line assembly
  • Brass C36000 construction resists corrosion in fluid systems
  • 1/8 in FNPT thread mates with standard pipe ports
  • 290 psi rating handles demanding pneumatic pressure
  • 175 °F tolerance suits high-temperature operating environments

Specifications

TypeDrain Components
MaterialHAWA
BrandLegris
Model3014 04 11

Questions about this item

What tube outer diameter and thread size does the 3014 04 11 adapter accept?

The push-to-connect side fits 5/32 in tube outer diameter and the FNPT side is 1/8 in thread size.

How do you install the brass push-fit adapter without leaks?

Push the 5/32 in tube firmly into the fitting until it seats; thread the 1/8 in FNPT end into the port by hand then tighten with a wrench — do not add extra sealant because none is pre-applied.

When should the C36000 brass fitting be inspected or replaced?

Inspect if system pressure approaches 290 psi or temperature nears 175 °F; replace if corrosion, cracking or persistent leakage appears at the push-to-connect or threaded ends.
