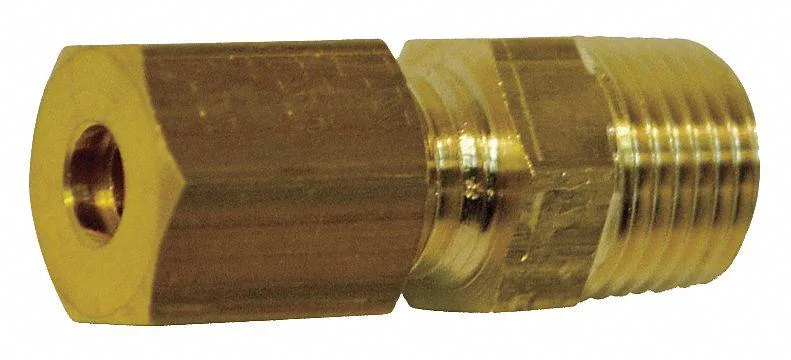

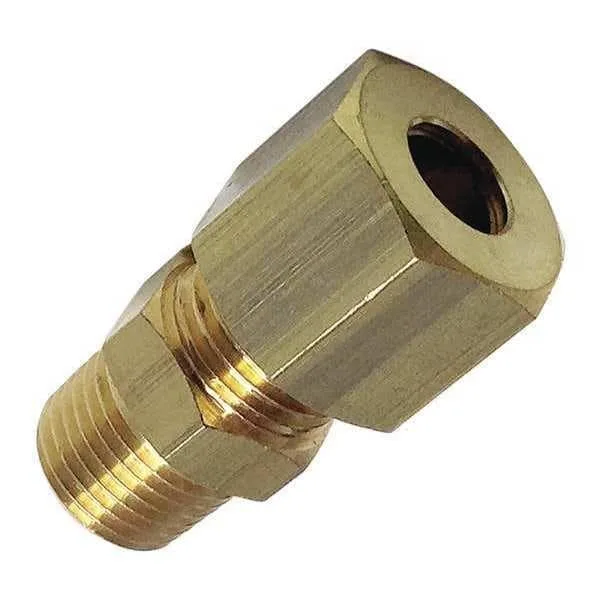

Ten brass straight adapters with 8mm compression and 1/8 BSPT threads

Legris

Legris 0105 08 10 8mm Compression x 1/8" BSPT Straight Adapter 10PK

SKU CH-FSB0-JN7KN

Connects 8 mm tube to 1/8 inch BSPT thread, brass straight adapter rated to 1,450 psi and 250 °F, pack of 10

  • Brass construction resists corrosion in chemical and hydraulic systems
  • 8 mm compression to 1/8 in BSPT connects metric tube to taper thread
  • 1 450 psi rating handles high-pressure fluid lines
  • 250 °F maximum temperature suits hot fluid applications
  • Pack of 10 fittings supports multiple connection points

8 mm Compression Brass Adapter Pack

This pack contains ten straight adapters that join 8 mm compression tubing to a 1/8 inch male BSPT thread. The brass body is rated for 1 450 psi and 250 degrees F, making it suitable for chemical, hydraulic and pneumatic lines. Each fitting measures 19 1/2 mm overall length and uses CA360 grade brass for corrosion resistance. The compression end seals without soldering or specialised tools.

Straight Threaded Transition for Tight Spaces

The straight profile keeps the flow path inline, which helps when routing tubing through panels or inside cabinets where angled fittings would snag. A 1/8 inch BSPT male thread mates with standard female ports on valves, manifolds or pumps, while the 8 mm compression nut grips metric tubing directly. No additional adapters or reducers are required to bridge the metric-to-imperial connection.

Replaces Mixed Thread Kits

Builders who previously assembled separate compression nuts, ferrules and threaded nipples can consolidate to this single-piece fitting, reducing leak points and assembly time. The jump is worth it when a system uses 8 mm tube and 1/8 inch BSPT ports throughout and the 1 450 psi rating covers the operating pressure. It does not suit installations needing larger tube diameters, higher temperature limits or flanged connections.

Highlights

  • Brass construction resists corrosion in chemical and hydraulic systems
  • 8 mm compression to 1/8 in BSPT connects metric tube to taper thread
  • 1 450 psi rating handles high-pressure fluid lines
  • 250 °F maximum temperature suits hot fluid applications
  • Pack of 10 fittings supports multiple connection points

Specifications

BrandLEGRIS

Questions about this item

At what pressure does the 1/8" BSPT straight adapter reach its limit during continuous service?

The brass body is rated for a maximum operating pressure of 1,450 psi, so sustained use above that value risks leakage or fitting failure.

How much heat can the brass compression fitting tolerate when it runs all day in a hydraulic circuit?

Maximum operating temperature is 250 degrees Fahrenheit; beyond that the CA360 brass may soften and the seal can degrade.

Which tube size must I already have on hand to connect to the 8 mm compression end?

You need tubing with an 8 mm outer diameter; the compression nut and ferrule are sized for that exact dimension.
