Ten brass straight adapters with 6 mm compression and 1/4 inch BSPT threads

Legris

Legris 0105 06 13 6 mm compression x 1/4" BSPT straight coupling 10 pack

SKU CH-FR7T-NR7C8

Pack of ten brass straight adapters joining 6 mm compression tube to 1/4 inch BSPT threads at 2,175 psi

  • 6 mm compression fits metric tubing
  • 1/4" BSPT thread connects to standard ports
  • Brass CA360 body handles 175 psi
  • Rated to 250 °F for hot fluids
  • Pack of 10 speeds multi‑point installs

6 mm compression to 1/4" BSPT adapter pack

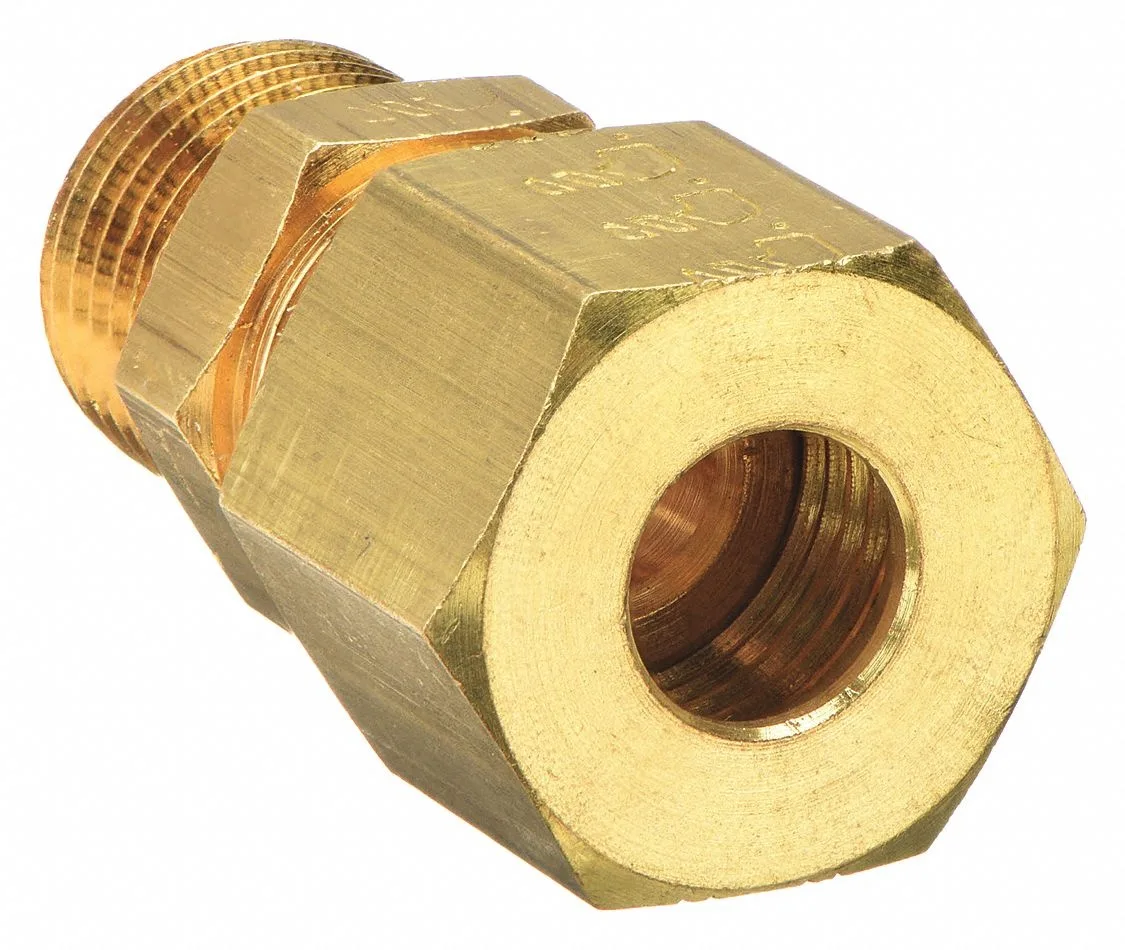

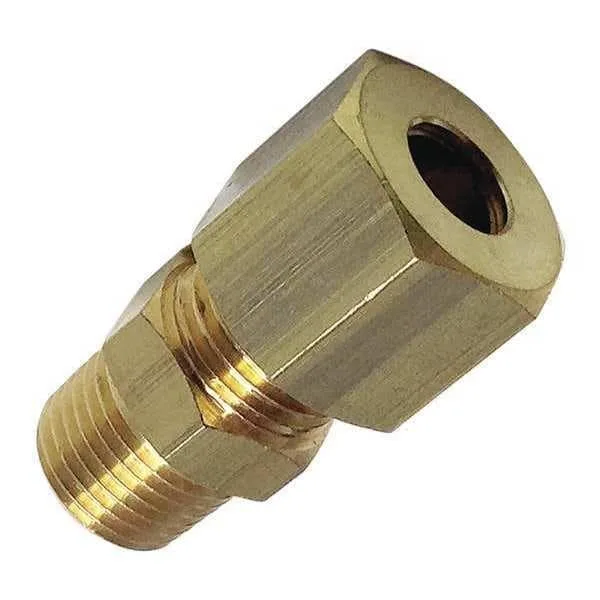

This pack contains ten straight brass adapters that join 6 mm metric compression tubing to a 1/4 inch male BSPT thread. They are suited for pneumatic, hydraulic and chemical-transfer circuits where a compact, leak-tight joint is required.

Sustained pressure and temperature performance

Each fitting is rated for a maximum operating pressure of 2,175 psi and a maximum operating temperature of 250 degrees F. The CA360 brass body maintains sealing integrity under continuous load without the creep seen in softer alloys.

Installation notes and common issues

The 18 mm overall length allows the nut to be tightened with a standard spanner in confined runs. Over-tightening the compression nut can distort the 6 mm olive, while under-tightening leaves a weep path; both are the most frequent causes of leaks. The product carries a California Proposition 65 warning for chemicals known to cause cancer and reproductive harm.

Highlights

  • 6 mm compression fits metric tubing
  • 1/4" BSPT thread connects to standard ports
  • Brass CA360 body handles 175 psi
  • Rated to 250 °F for hot fluids
  • Pack of 10 speeds multi‑point installs

Specifications

BrandLEGRIS

Questions about this item

Does the brass body get hot when fluid runs at 250 degrees F all day?

Brass conducts heat, so the fitting will reach the fluid temperature of 250 degrees F during continuous operation.

What tubing and thread sealant do I need to install these 6 mm compression ends?

Use 6 mm outer-diameter tubing and apply thread sealant on the R 1/4 BSPT male threads before tightening.

Will the R 1/4 BSPT threads mate with my existing 1/4 inch NPT ports?

BSPT and NPT threads have different angles and pitch; they are not directly compatible and will leak if forced together.
