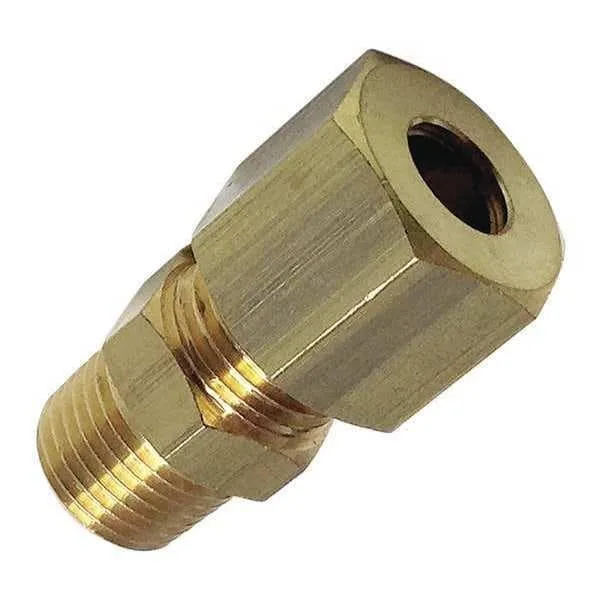

Ten brass straight adapters with 6 mm compression and 1/8 inch BSPT threads

Legris

Legris 0105 06 10 6mm Compression x 1/8" BSPT Straight Adapter 10PK

SKU CH-BW6Y-9HGTM

Pack of ten brass straight adapters joining 6 mm compression tube to 1/8" BSPT male thread, rated 2175 psi at 250 °F

  • 6 mm compression connects metric tubing securely
  • 1/8" BSPT male thread fits standard pipe ports
  • Brass CA360 construction resists corrosion in fluid systems
  • Rated to 2175 psi and 250 °F for demanding hydraulics
  • Pack of 10 straight adapters simplifies multi-point installations

6 mm Compression Adapter Pack

This pack contains ten straight adapters built for 6 mm compression tube on one end and 1/8 inch male BSPT thread on the other. They suit pneumatic, hydraulic and chemical lines where a compact brass joint is required.

Brass CA360 Material and Pressure Rating

Each fitting is machined from CA360 brass and rated to 2,175 psi at 250 degrees F, so the alloy and pressure ceiling define the safe envelope for fluid power circuits. The straight shape keeps flow path short and pressure drop low.

Thread Sealant and Tube Prep Prevent Leaks

Apply PTFE tape or paste to the R 1/8 male thread and ensure the 6 mm tube is cut square and deburred before tightening the compression nut. Skipping sealant or leaving burrs on the tube end are the most common causes of weeping joints.

Highlights

  • 6 mm compression connects metric tubing securely
  • 1/8" BSPT male thread fits standard pipe ports
  • Brass CA360 construction resists corrosion in fluid systems
  • Rated to 2175 psi and 250 °F for demanding hydraulics
  • Pack of 10 straight adapters simplifies multi-point installations

Specifications

BrandLEGRIS

Questions about this item

Will the brass compression ferrules need periodic replacement under normal use?

Brass ferrules are single-use components; once the 6 mm tube is tightened they cannot be reused and must be replaced if the joint is broken.

What pressure limit is reached first during continuous operation?

The adapter is rated to 2 175 psi maximum operating pressure; sustained service should stay below that figure.

How hot does the fitting get when fluid runs at the 250 °F temperature limit all day?

At the 250 °F maximum operating temperature the brass body will equilibrate to the fluid temperature, so the fitting surface reaches the same heat level.
