Ivory steel raceway cover for single receptacle, 3000 series

Legrand

Legrand V3027AE Raceway Single Receptacle Cover 3000 Series 1 2 Channel

SKU CH-B9RA-0M5N4

Single receptacle cover for 3000 series raceways, fits 1-2 channels and includes G3007C device bracket, meets NEC 386 and CEC 12-600 standards

  • Steel construction resists impact in commercial raceways
  • Fits 3000 Series channels 1 and 2
  • Accepts straight-blade and locking single receptacles
  • Includes G3007C device bracket for secure mounting
  • Meets NEC Article 386 and CEC Section 12-600

Raceway Single Receptacle Cover 3000 Series

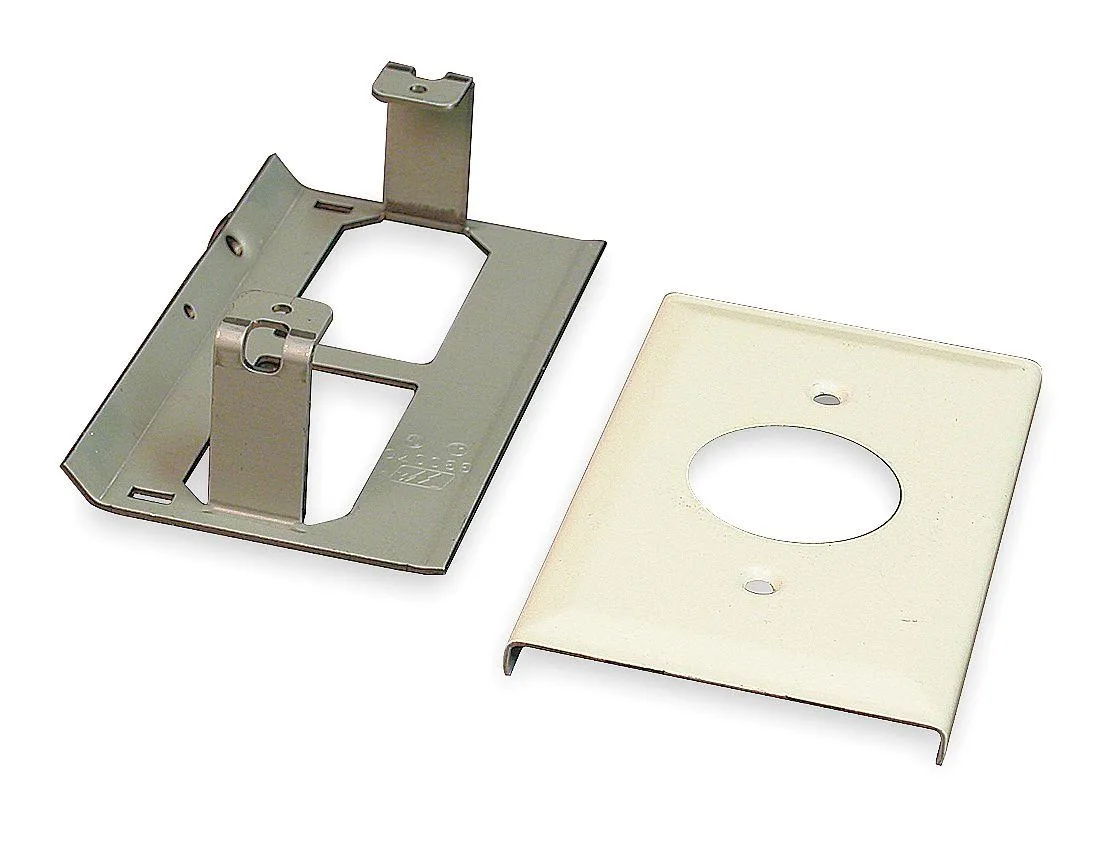

This Legrand cover fits 3000 series raceways measuring 2 3/4 in by 1 1/2 in. It accepts commercially available straight-blade and locking single receptacles. The ivory steel unit includes a G3007C device bracket for mounting. It is suited for commercial or industrial wiring projects.

Fits 3000 raceway systems with one or two channels

The cover mounts directly onto the raceway base to close the channel around a single receptacle. It frees the installer from fabricating a custom blank plate. The included bracket aligns the device securely within the 4 1/2 in length. No separate coupling hardware is required for this fitting.

Meets NEC Article 386 and CEC Section 12-600

The assembly is listed under UL File E4376 Guide RJBT and Fittings File E41751 Guide RJPR. It also satisfies PEP and RoHS requirements. Builders needing multi-gang or double-receptacle configurations cannot use this single-device cover. It provides code-compliant closure for one receptacle only.

Highlights

  • Steel construction resists impact in commercial raceways
  • Fits 3000 Series channels 1 and 2
  • Accepts straight-blade and locking single receptacles
  • Includes G3007C device bracket for secure mounting
  • Meets NEC Article 386 and CEC Section 12-600

Specifications

BrandLEGRAND

Questions about this item

What is the maximum raceway width this single receptacle cover fits?

The cover fits 3000 Series raceways that are 2 3/4 in wide and 1 1/2 in high.

How much heat does the steel cover add when the circuit runs continuously?

The steel cover itself generates no heat; it simply encloses the receptacle and wiring.

Which mounting bracket must I already have to install this cover?

The included G3007C device bracket mounts to the raceway base before the cover snaps on.
