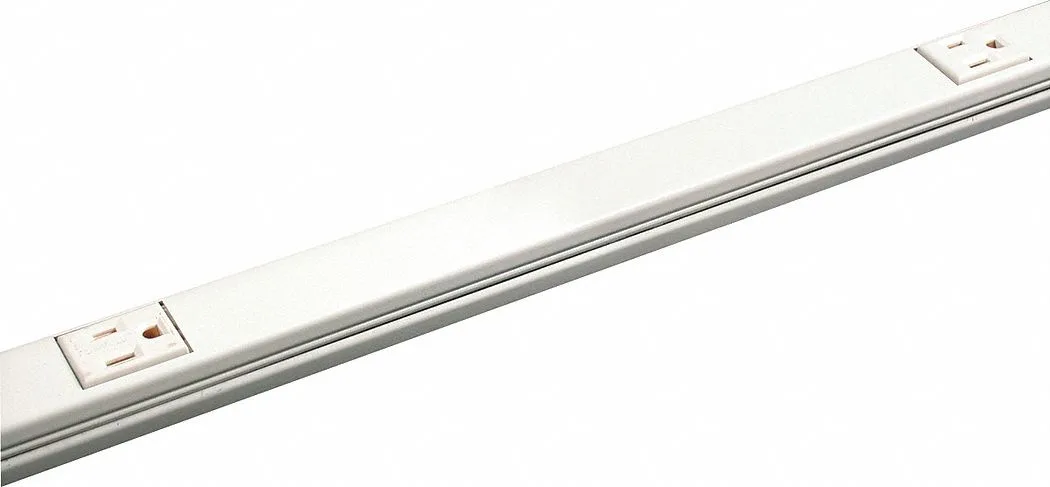

Ivory steel prewired raceway with six NEMA 5-15R outlets spaced 12 inches apart

Legrand

Legrand V20GB612 prewired raceway coupling 6 outlets 12 in

SKU CH-VPPN-0E1F9

A pre-wired steel raceway with six NEMA 5-15R outlets spaced twelve inches apart on a single fifteen-amp circuit

  • Prewired with six NEMA 5-15R outlets ready to use
  • 12‑inch outlet spacing simplifies layout planning
  • 15‑amp 125‑volt rating supports common equipment
  • Steel construction with ivory finish resists wear
  • Includes two blank end fittings and base coupling for quick install

Prewired Raceway with Six Outlets

The Legrand V20GB612 is a 6 ft prewired raceway that delivers six NEMA 5-15R receptacles on a single 15 A circuit. It arrives ready to mount with screw-through bases or supporting clips and includes two blank end fittings plus a base coupling.

Steel Channel for Surface Power Distribution

The ivory steel housing measures 13/16 in high by 1 5/16 in wide and carries three #12 THHN leads rated for 125 V AC. Outlets are spaced on 12 in centers, so the unit fits long benches or walls without extra junction boxes. Mounting hardware and end fittings are supplied, leaving only the supply connection to complete.

15 A Capacity Across Six Receptacles

The single 15 A circuit supports typical office or light-duty equipment loads across all six outlets. Voltage drop over the 6 ft length stays within normal limits for 125 V AC branch circuits. Builds that need multiple circuits, higher amperage, or GFCI protection will require additional components not included here.

Highlights

  • Prewired with six NEMA 5-15R outlets ready to use
  • 12‑inch outlet spacing simplifies layout planning
  • 15‑amp 125‑volt rating supports common equipment
  • Steel construction with ivory finish resists wear
  • Includes two blank end fittings and base coupling for quick install

Specifications

BrandLEGRAND

Questions about this item

What is the maximum continuous current the 15 A circuit can handle without tripping?

The raceway is rated for 15 A at 125 V AC on a single circuit.

Does the steel housing get hot when all six NEMA 5-15R outlets are loaded continuously?

The #12 THHN leads and steel base are sized for the 15 A rating, so normal operation stays within safe temperature limits.

Which mounting hardware must I supply to secure the 6 ft length to the wall?

Screws for the through-base holes or supporting clips are not included; you provide the fasteners that suit your surface.
