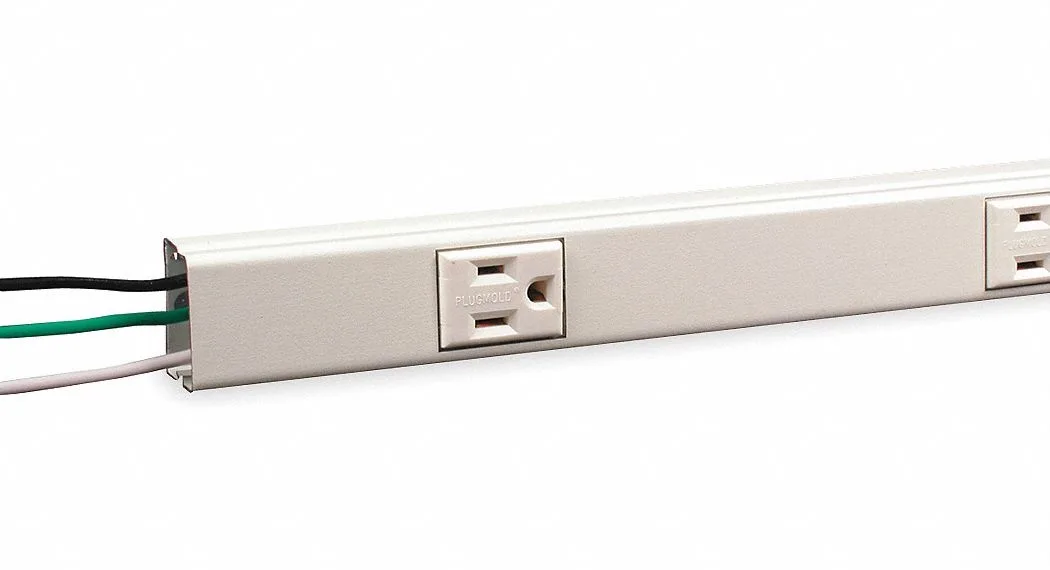

Ivory PVC raceway six feet long with six outlets spaced twelve inches apart

Legrand

Legrand NM24GB612 Prewired Raceway 6 Outlets 6 ft Ivory

SKU CH-HR35-Z240S

A six-foot ivory PVC raceway pre-wired with six NEMA 5-15R/5-20R outlets on 12-inch centres, rated 20 A at 120 V AC and cULus listed

  • 6 outlets spaced 12 in apart for convenient access
  • Pre-wired with #12 THHN conductors for faster installation
  • 20 A, 120 V AC rating supports standard circuits
  • Includes two blank end fittings for clean termination
  • cULus listed for code-compliant safety

Legrand NM24GB612 6 ft prewired raceway

This Legrand NM24GB612 prewired raceway provides six NEMA 5-15R and 5-20R outlets along a 6 ft PVC channel rated for 20 A at 120 V AC. It is intended for installers who need a ready-to-mount power distribution strip without pulling individual conductors. The unit arrives with #12 THHN leads already installed and two blank end fittings included. Buyers who need a different outlet count or a non-prewired channel should look elsewhere.

Outlets and wiring supplied

The raceway comes with six receptacles spaced 12 in on centre and three factory-installed wire leads sized #12 THHN. Two blank end fittings are included to close the channel ends, and the single-circuit design carries 20 A across all outlets. No additional receptacles, jumper wires or coloured-phase markers are provided, so any circuit splitting or extra outlets must be sourced separately.

Screw or clip mounting installation

Mounting is achieved by driving screws through the base or by using supporting clips, both of which require access to the mounting surface and appropriate fasteners. The low 1 in profile fits tight spaces, but installers must verify that the screw pattern aligns with studs or anchors before committing holes. Misaligned clips or insufficient clearance for the 1 3/4 in width are the most common reasons the raceway sits proud of the wall.

Highlights

  • 6 outlets spaced 12 in apart for convenient access
  • Pre-wired with #12 THHN conductors for faster installation
  • 20 A, 120 V AC rating supports standard circuits
  • Includes two blank end fittings for clean termination
  • cULus listed for code-compliant safety

Specifications

BrandLEGRAND

Questions about this item

How often will the #12 THHN wire leads need inspection or replacement?

The #12 THHN leads are rated for continuous use at 20 A; inspect them during routine electrical maintenance or if the raceway is moved.

What limits continuous loading on the single 20 A circuit?

The single circuit is rated 20 A at 120 V AC; sustained loads above 20 A will trip the upstream breaker.

Does the PVC raceway get warm or noisy when all six outlets run all day?

PVC housing stays cool and silent; heat and noise depend only on the devices plugged into the NEMA 5-15R/5-20R receptacles.
