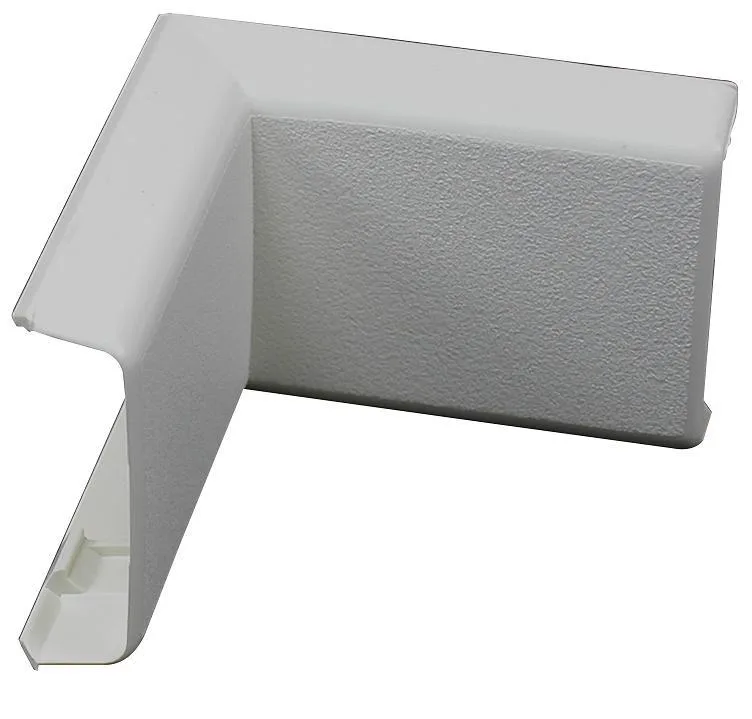

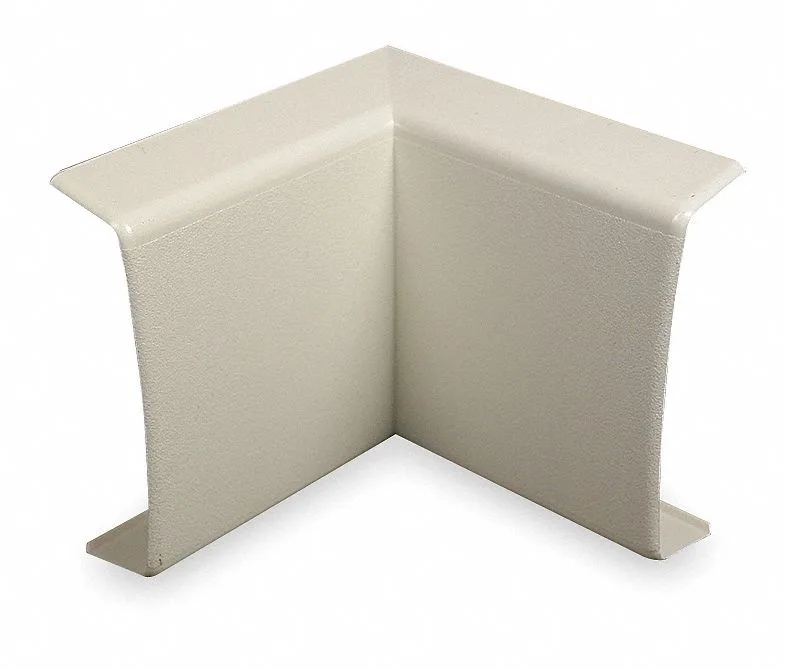

Ivory PVC internal elbow fitting for 2300 series raceway

Legrand

Legrand 2317 Internal Elbow Ivory PVC

SKU CH-KYXB-FSP5M

PVC internal elbow for 2300 series raceways, ivory, snap-on, cULus listed

  • cULus listed for code-compliant installations
  • Snap-on mounting speeds up fitting time
  • Single-channel design keeps cable runs tidy
  • Ivory PVC matches existing 2300 raceway systems
  • Compact 2 1/2 in footprint fits tight spaces

Legrand 2317 Internal Elbow Ivory PVC

This Legrand 2317 internal elbow connects sections of Series 2300 raceway inside the run. The fitting is made from non-metallic PVC in an ivory finish and snaps onto compatible raceway. It is supplied as a single piece and carries cULus listing.

Installers extending Series 2300 raceway

Electricians routing Series 2300 raceway around an internal corner will use this elbow. The snap-on design suits single-channel installations where a 2300-profile raceway is already specified. Projects requiring metallic conduit, larger profiles or multi-channel systems need different fittings.

Series 2300 raceway compatibility

This elbow is engineered exclusively for Legrand Series 2300 raceway with a 2 1/4 in by 11/16 in profile. It will not fit other raceway series or conduit types. Verify the raceway series before ordering.

Highlights

  • cULus listed for code-compliant installations
  • Snap-on mounting speeds up fitting time
  • Single-channel design keeps cable runs tidy
  • Ivory PVC matches existing 2300 raceway systems
  • Compact 2 1/2 in footprint fits tight spaces

Specifications

BrandLEGRAND

Questions about this item

How does the snap-on mounting work with Series 2300 raceways?

The elbow snaps directly onto compatible 2300 raceway channels without tools, using the integrated snap-on clips that lock into the raceway profile for a secure mechanical connection.

What are the overall dimensions that determine whether this elbow fits in the trunking run?

The fitting measures 2 1/2 inches in both overall length and overall width, matching the Series 2300 raceway cross-section of 2 1/4 inches wide by 11/16 inch high.

What is the correct orientation when installing this internal elbow to avoid a mismatched turn?

Install the elbow so the internal corner faces the direction of the cable route change; the snap-on tabs must engage the raceway base on both legs, and the cover snaps on last to complete the enclosure.
