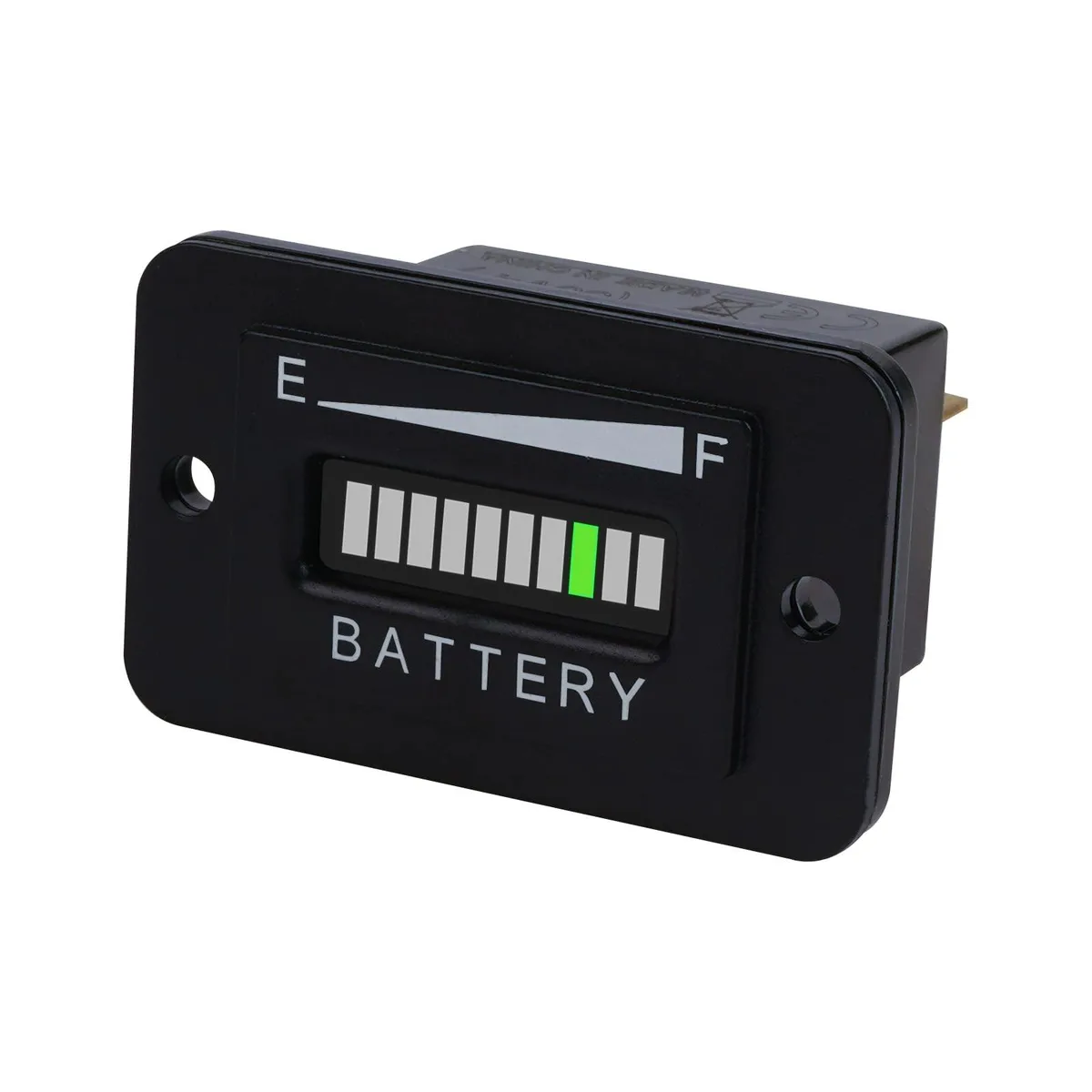

Compact rectangular 36 V LED battery meter with ten coloured bars and snap-in panel mount

Lectron RL-BI003 36 V LED Battery Level Meter

SKU CH-07J2-Q74W5

Compact 36 V lead-acid battery monitor shows charge and discharge status through 10 LED bars with low-power flashing alerts at 20 % and 10 % capacity

  • Featuresno, Battery Powered,electric, false
  • Height53 L x 32 W x 24 H millimeters
  • Width53 L x 32 W x 24 H millimeters
  • Length53 L x 32 W x 24 H millimeters
  • Weight0.02 pounds
  • Sports Team1 Piece
  • Clear battery status at a glance with 10 colour-coded LED bars
  • 36 V lead-acid compatible (excludes Trojan) for golf carts and utility vehicles
  • Low-battery alert flashes at 20 % and 10 % remaining capacity
  • IP65 water resistance protects against rain and splashes
  • Snap-in panel mount 37.00 mm × 25.00 mm with two wiring options

36 V LED Battery Level Meter

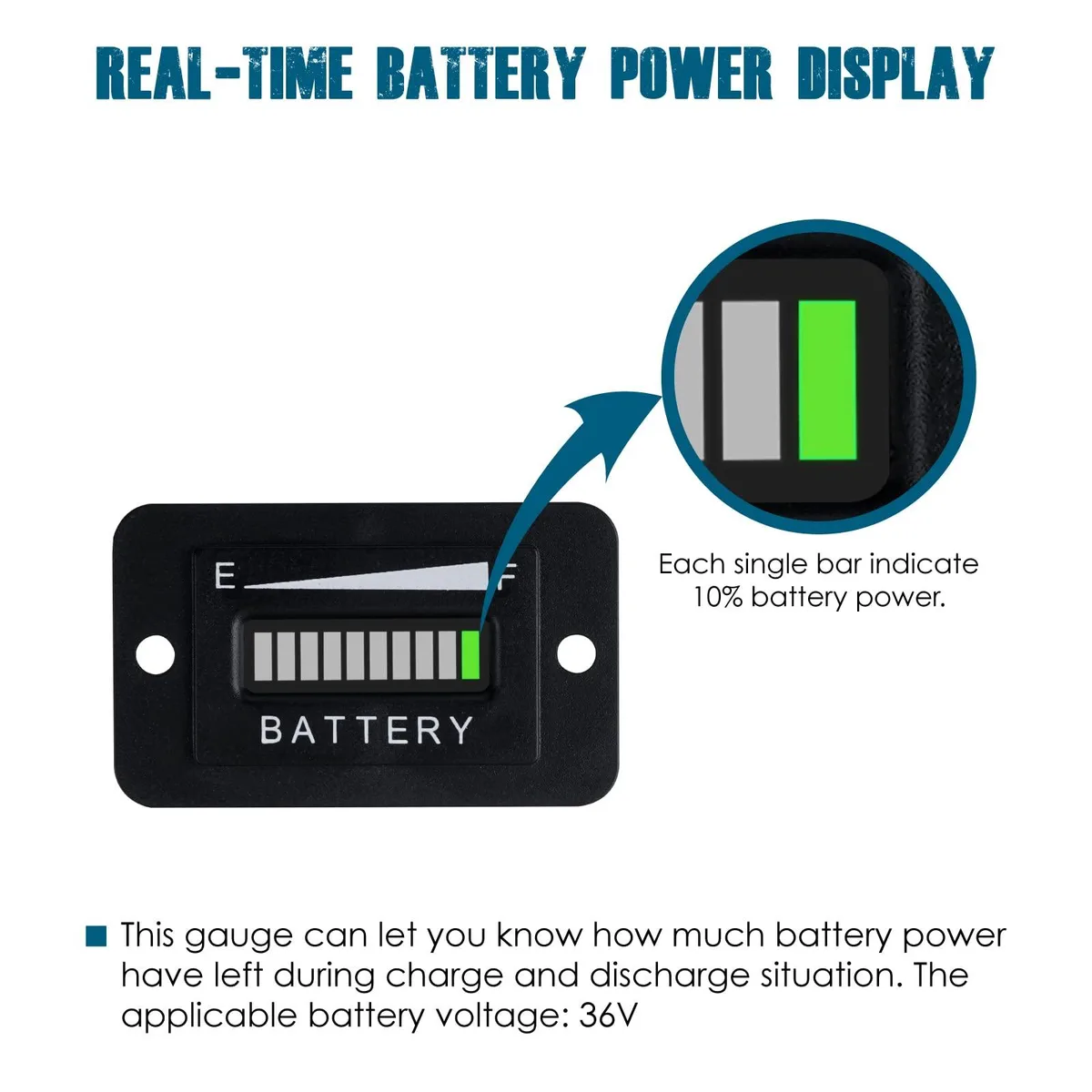

The Lectron RL-BI003 is a compact voltmeter designed for 36 V lead acid batteries in garden machinery, outdoor power vehicles and similar equipment. Ten LED bars show remaining capacity in ten percent steps using one red, two yellow and seven green indicators.

IP65 Water Resistance and 37 mm × 25 mm Panel

The meter meets IP65 water resistance for reliable outdoor use. It fits a snap-in panel cut-out of 37.00 mm by 25.00 mm and offers two wiring options: direct power or key switch connection with positive and negative terminals.

Replaces Guesswork on 36 V Lead Acid Systems

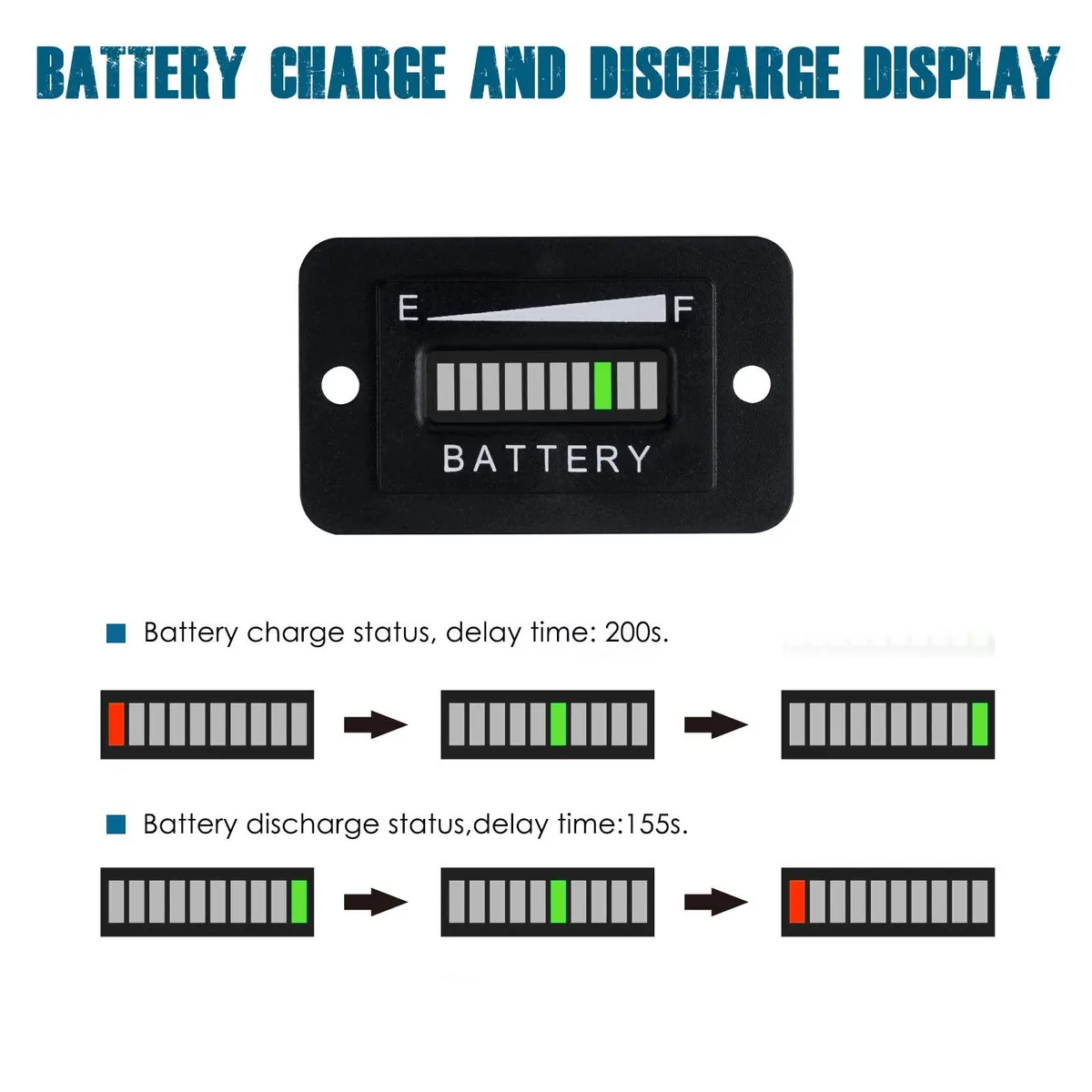

This unit replaces visual estimation or basic voltage checks by displaying real-time charge and discharge status with 200 s charge delay and 155 s discharge response. It is not suitable for Trojan batteries or systems requiring a different voltage range.

Highlights

  • Clear battery status at a glance with 10 colour-coded LED bars
  • 36 V lead-acid compatible (excludes Trojan) for golf carts and utility vehicles
  • Low-battery alert flashes at 20 % and 10 % remaining capacity
  • IP65 water resistance protects against rain and splashes
  • Snap-in panel mount 37.00 mm × 25.00 mm with two wiring options

Specifications

BrandLectron
Featuresno, Battery Powered,electric, false
Height53 L x 32 W x 24 H millimeters
Width53 L x 32 W x 24 H millimeters
Length53 L x 32 W x 24 H millimeters
Weight0.02 pounds
Sports Team1 Piece
TypeVoltmeter

Questions about this item

Should I choose the direct power or key-switch power connection?

Use direct power for always-on indication; choose key-switch power if you want the meter to turn off with the ignition.

What does the 10-bar LED display tell me while the machine is running?

Each of the 10 bars shows 10 % capacity — 1 red, 2 yellow and 7 green bars step up during charge and step down during discharge.

How does the IP65 rating limit where I can mount the meter?

IP65 protects against dust and low-pressure water jets, so the meter can be panel-mounted in exposed areas on 36 V lead-acid equipment.
