Compact black device server, single DB9 serial and RJ45 Ethernet ports, 29 by 33 by 240 mm, 68 g

Lantronix

Lantronix XDT2321002-01-S single-port RS232 device server 10/100 Ethernet

SKU CH-ZTK0-SCQQR MPN XDT2321002-01-S

Connects one RS232 serial device to a 10/100 Ethernet network through a single DB9F port

  • TypeDevice Server
  • ColorBlack
  • SpecificationsxDirect232 Single Port RS232 10/100 Device Server Serial Con
  • FeaturesxDirect is a sleek and compact Serial-to- Ethernet device se
  • Adds Ethernet to any serial device via compact DB9F adapter
  • 10/100 Fast Ethernet port enables wired network integration
  • Serial speeds from 300 bps to 921.6 Kbps supported
  • Tiny 29 × 33 × 240 mm form factor fits tight spaces
  • Lightweight 68 g unit powered by PoE or external supply

Single-port RS232 device server

The Lantronix XDT2321002-01-S adds a 10/100 Ethernet link to any equipment that still uses a DB9F RS232 port. It suits engineers and integrators who need to bring legacy instruments, controllers or consoles onto a managed LAN without replacing the host device.

Build integration

The unit draws power from an external source or via PoE and occupies only a compact footprint of 1.14 by 1.30 by 9.45 inches. One RJ-45 jack connects to the network while the single serial connector frees the host from a dedicated PC or long cable run.

Upgrade path

It replaces a direct serial cable or an older terminal server that lacks web-based management and 921.6 Kbps throughput. The jump is worthwhile when remote monitoring, centralized logging or secure access over IP are required for a single serial endpoint.

Highlights

  • Adds Ethernet to any serial device via compact DB9F adapter
  • 10/100 Fast Ethernet port enables wired network integration
  • Serial speeds from 300 bps to 921.6 Kbps supported
  • Tiny 29 × 33 × 240 mm form factor fits tight spaces
  • Lightweight 68 g unit powered by PoE or external supply

Specifications

BrandLantronix
ModelXDT2321002-01-S
TypeDevice Server
ColorBlack
SpecificationsxDirect232 Single Port RS232 10/100 Device Server
Serial Connectors: Single-port: DB9F RS232 (DCE Pinned)
Ethernet Interface: 10/100M RJ-45
Serial Interface Baud Rate: 300bps to 921.6 Kbps
LED Indicators: Power/Status, Link, Activity, Serial RX Activity & TX Activity
CPU: Based on DSTni-EX Enhanced 16-bit x86 Architecture
Memory: 256 KB SRAM, 1 MB Flash

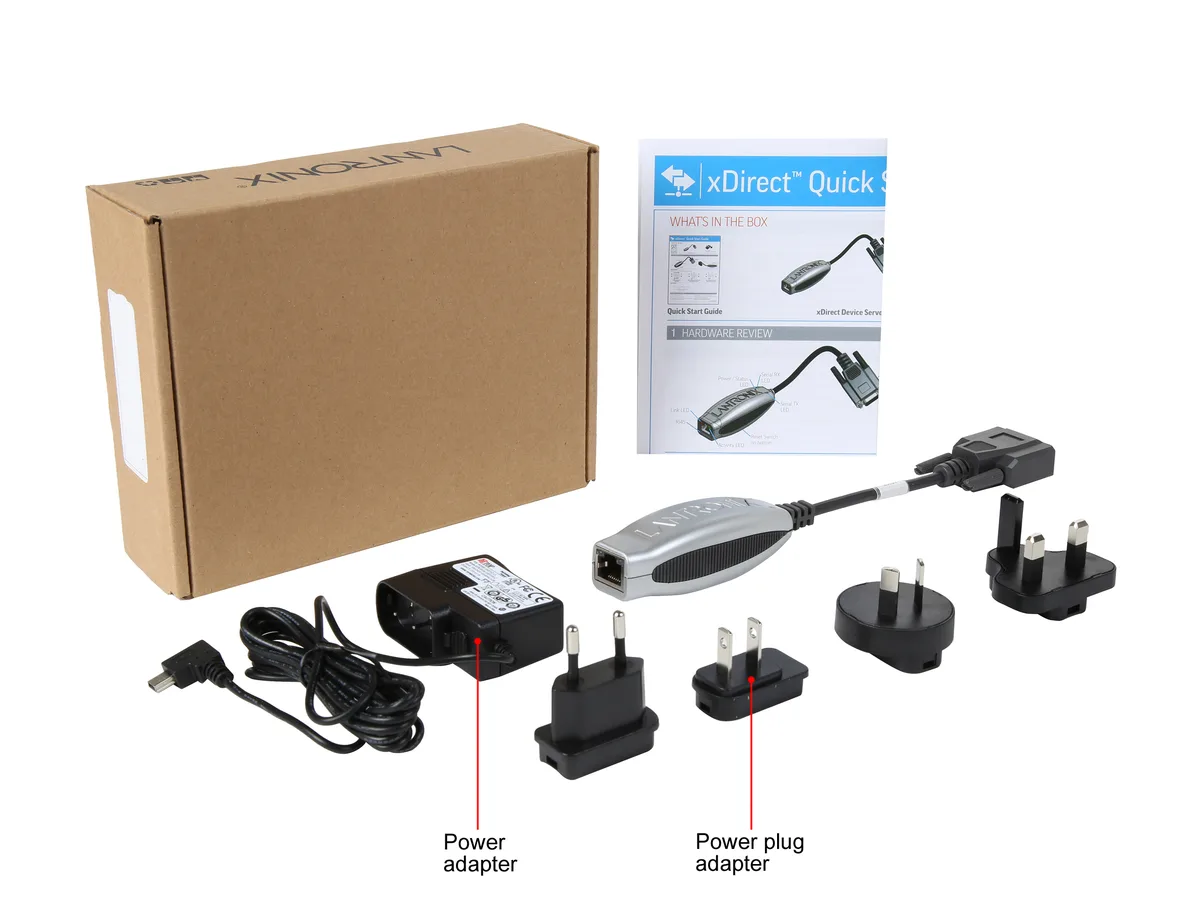

100-240 VAC International Power Supply with Regional Adapters.
FeaturesxDirect is a sleek and compact Serial-to- Ethernet device server, providing quick and easy Ethernet connectivity to virtually any device or machine with a serial interface.
xDirect comes with a built-in web server that enables users to access and configure the unit using a standard web browser on a PC, smartphone, or tablet from anywhere.
With plug-and-play simplicity, small form factor, multiple power options, and a robust device server application, xDirect provides the easiest and shortest path to network connectivity 'right on the wire'.
Shipping weight0.35 kg
Package size196 × 150 × 56 mm

Questions about this item

How many simultaneous serial connections can the single DB9 port handle before data bottlenecks appear?

The single-port design supports one RS-232 connection at up to 921.6 Kbps; sustained throughput is limited by the 10/100 Ethernet link and 256 KB SDRAM buffer.

What are the heat and noise levels when the unit runs continuously on PoE or external power?

The compact 29 x 33 x 240 mm enclosure has no fan and draws little power, so it runs silently with only modest warmth during 24/7 operation.

Which serial cable and power source must I already have to get this device server working out of the box?

You need a DB9 male-to-male RS-232 cable for the DCE-pinned port and either a PoE-enabled switch or a 5 V DC supply (not included).
