Red handheld surface roughness tester with sensor probe and display

LANDTEK

LANDTEK SRT-6200S surface roughness tester

SKU CH-7YXE-N5P74 MPN SRT-6200S

Measures surface roughness with Ra, Rz, Rq and Rt parameters, supports ISO, DIN, ANSI and JIS standards, stores seven result groups and offers USB, RS-232 and Bluetooth output

  • TypeTest Equipment
  • Color/FinishRed
  • Item Count1 pack
  • Selling UnitBox
  • Parts3 Years
  • Labor1 Year
  • Measures surface roughness to ISO, DIN, ANSI and JIS standards
  • Captures Ra, Rz, Rq and Rt parameters with inductance sensor
  • Stores seven measurement sets for later recall or PC download
  • Offers USB, RS-232 and Bluetooth data output options
  • Compact, lightweight design with manual or automatic shutdown

Handheld surface-roughness gauge for shop-floor use

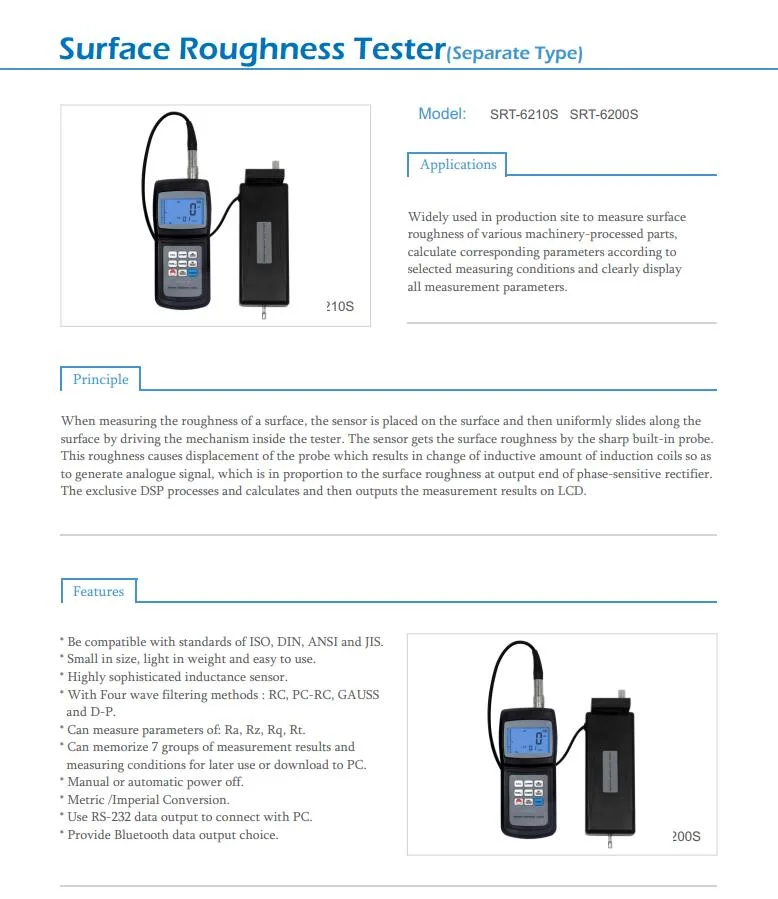

The LANDTEK SRT-6200S is a portable tester built for measuring the roughness of machined parts directly on the production line. It targets quality-control technicians and maintenance engineers who need immediate readings without moving workpieces to a lab. The instrument captures Ra, Rz, Rq and Rt parameters using an inductance sensor with a sharp built-in probe.

Measurement scope limited to four standards

The device conforms to ISO, DIN, ANSI and JIS standards and offers RC, PC-RC, GAUSS and D-P filtering methods. No other standards or filter types are supported, so users working to different specifications must verify compatibility beforehand. Data output relies on USB, RS-232 or Bluetooth links to a PC for recording or further analysis.

Stores seven measurement sets before a PC download

Internal memory holds up to seven groups of results and their measuring conditions, giving enough headroom for a short inspection run. Longer sessions require frequent transfers to a computer via the wired or wireless interfaces. Metric and imperial units can be switched on the fly, and the unit shuts down manually or automatically to conserve power.

Highlights

  • Measures surface roughness to ISO, DIN, ANSI and JIS standards
  • Captures Ra, Rz, Rq and Rt parameters with inductance sensor
  • Stores seven measurement sets for later recall or PC download
  • Offers USB, RS-232 and Bluetooth data output options
  • Compact, lightweight design with manual or automatic shutdown

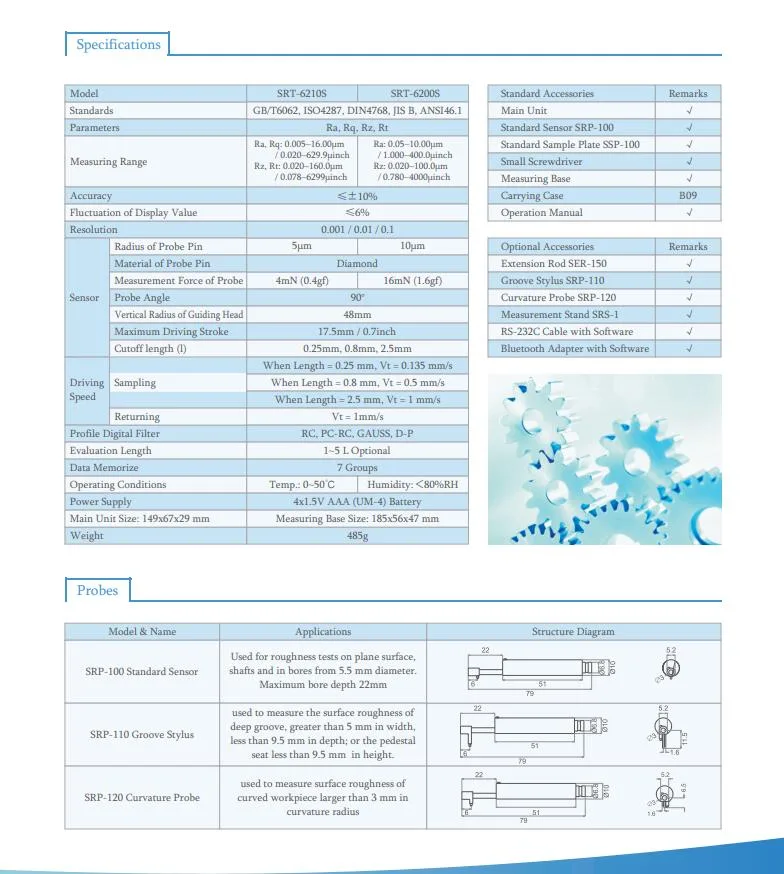

Specifications

BrandLANDTEK
ModelSRT-6200S
TypeTest Equipment
Color/FinishRed
Item Count1 pack
Selling UnitBox
Parts3 Years
Labor1 Year

Questions about this item

Which measurement parameters does the SRT-6200S provide?

The tester measures Ra, Rz, Rq and Rt parameters and supports ISO, DIN, ANSI and JIS standards for surface roughness evaluation.

What surface finish data will the device output after a scan?

It calculates Ra, Rz, Rq and Rt values using an inductance sensor and DSP processing, then displays or transfers the results via USB, RS-232 or Bluetooth.

Which data interfaces are available and what do they connect to?

USB, RS-232 and optional Bluetooth outputs let you download the 7 stored measurement groups to a PC for analysis or reporting.
