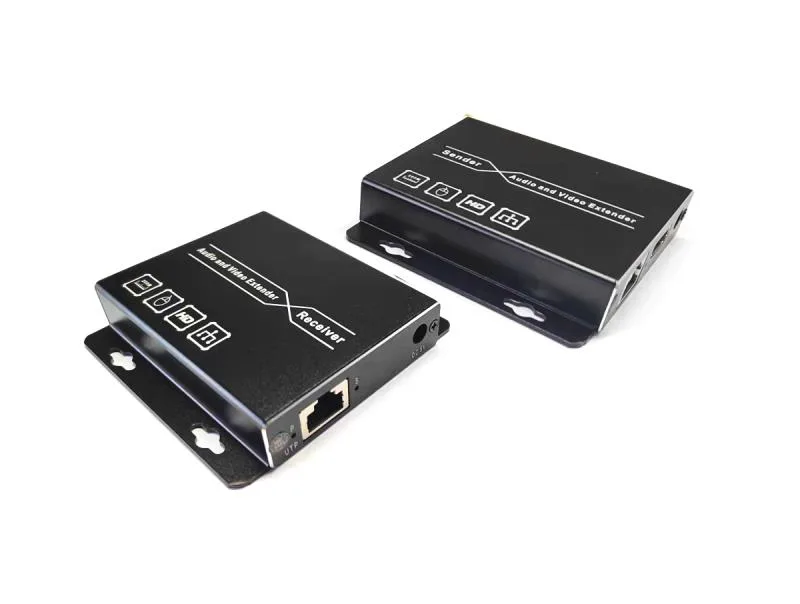

Two small black metal boxes with HDMI and USB ports, linked by a network cable

KY

KY HDMI USB KVM Extender 200m CAT6 1920x1080@60Hz Loop-out

SKU CH-Y4ZT-RE36J

Extends HDMI video, audio and USB keyboard-mouse signals up to 200 metres over a single CAT6 cable with 1920×1080@60Hz resolution and a local loop-out port

  • TypeA/V Converter
  • HDMI video and audio reach 200 metres over a single CAT6 cable
  • 1920 × 1080 at 60 Hz gives sharp Full HD detail
  • Keyboard and mouse signals travel the same link for remote control
  • Transmitter includes an HDMI loop-out for a local display
  • Audio supports 7.1-channel LPCM and high-definition formats at 48 kHz

HDMI KVM Extender 200 m

This HDMI KVM extender transmits video, audio and USB keyboard-mouse signals up to 200 metres over a single CAT6 cable or 160 metres over CAT5e. It supports 1920×1080 resolution at 60 Hz with zero-latency, uncompressed transmission. The system includes a transmitter and a receiver for remote operation of a computer or media source.

Loop-out and Audio Support

The transmitter provides an HDMI loop-out port for a local display while extending the signal to the remote receiver. Audio sampling rates of 32 kHz, 44.1 kHz and 48 kHz are supported alongside formats including DTS-HD, Dolby TrueHD, LPCM 7.1, DTS and DSD. External stereo audio and USB keyboard-mouse signals are also carried over the same cable run.

Replaces Short-Range Cables

This extender replaces direct HDMI and USB cables when the source must be located far from the display and control point. The jump is worth it for installations such as home theatre, monitoring, education or banking environments where runs exceed standard cable limits and uncompressed, real-time fidelity is required.

Highlights

  • HDMI video and audio reach 200 metres over a single CAT6 cable
  • 1920 × 1080 at 60 Hz gives sharp Full HD detail
  • Keyboard and mouse signals travel the same link for remote control
  • Transmitter includes an HDMI loop-out for a local display
  • Audio supports 7.1-channel LPCM and high-definition formats at 48 kHz

Specifications

TypeA/V Converter

Questions about this item

How far does the HDMI signal reach over CAT6, and what resolution is capped at that distance?

The extender sends 1920x1080@60Hz video up to 200m over a single CAT6 cable, and up to 160m over CAT5e.

What cable wiring does the unit require for a reliable link?

Wire the CAT5e/6 UTP to the sequence white/orange, orange, white/green, blue, white/blue, green, white/brown, brown as specified.

How do I connect the transmitter and receiver so the local loop-out works?

Link sender and receiver with one UTP cable, plug the source into the transmitter HDMI input, the local display into its HDMI loop-out, and the remote display plus USB keyboard/mouse into the receiver.
