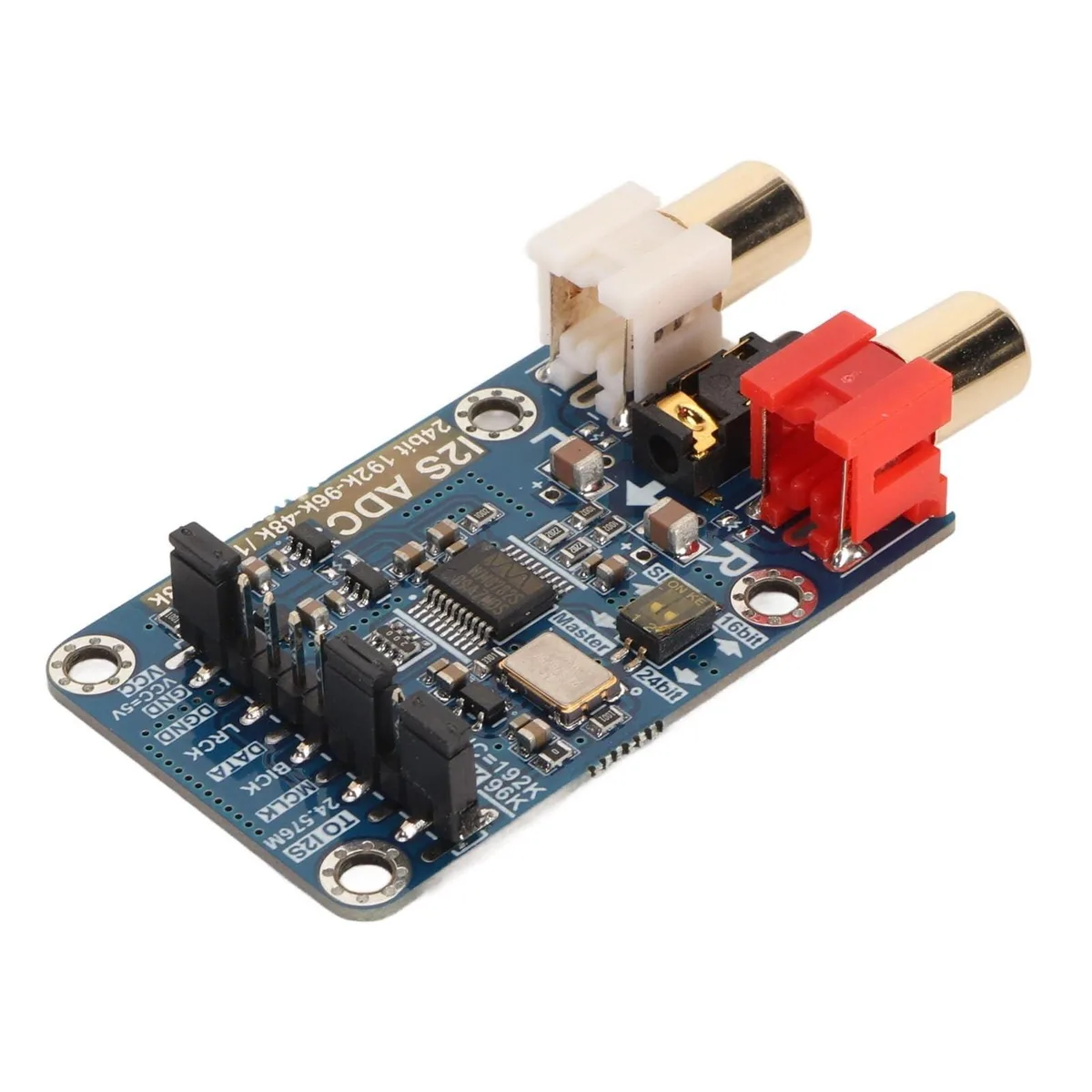

KW-Commerce I2S ADC Audio Capture Card Module 2 in 1 accessory

SKU CH-CXD3-ZZ6SS

Converts analogue audio to I2S digital output at up to 24-bit 192 kHz with 3.5 mm input and 6 dB gain

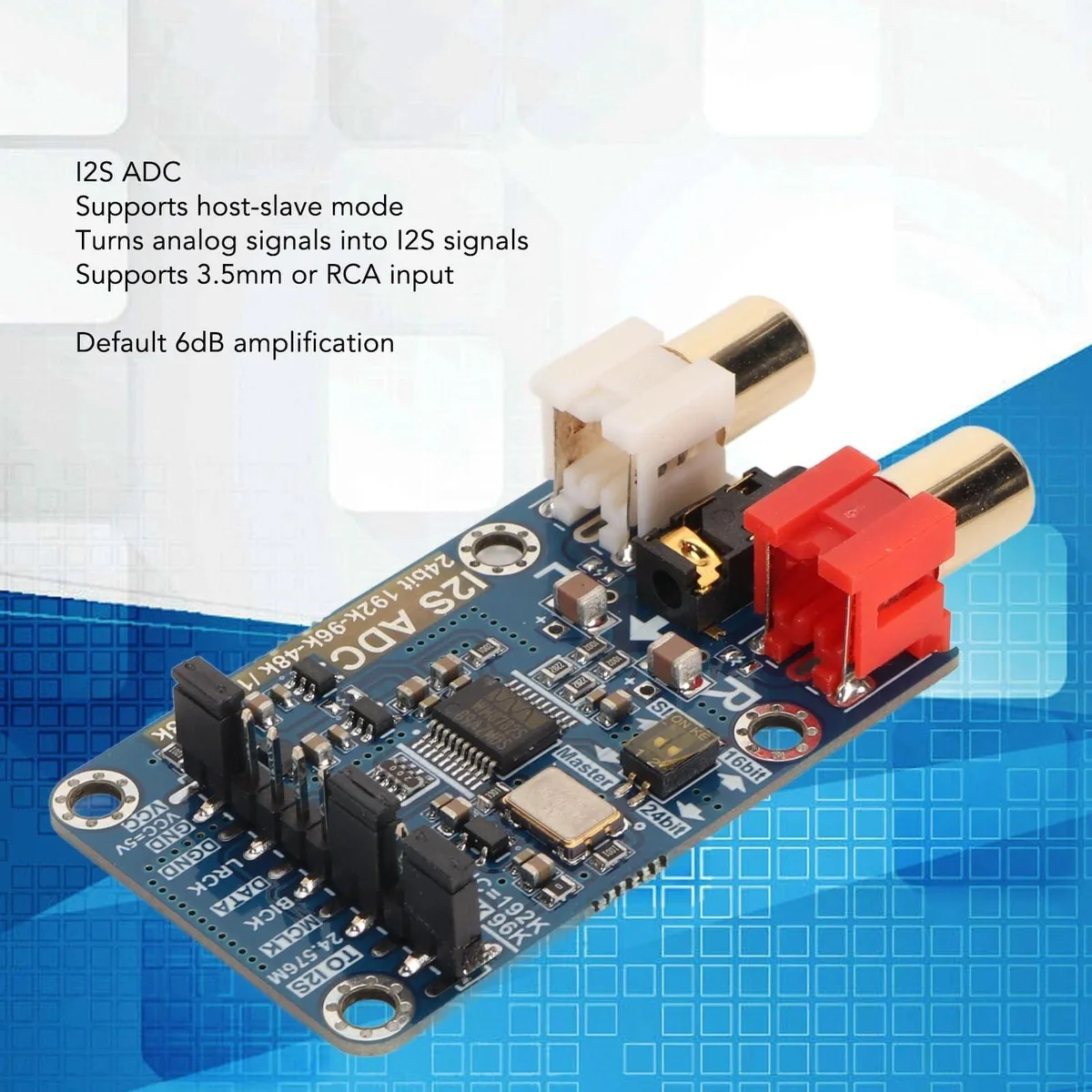

  • Converts analogue audio to I2S digital signal

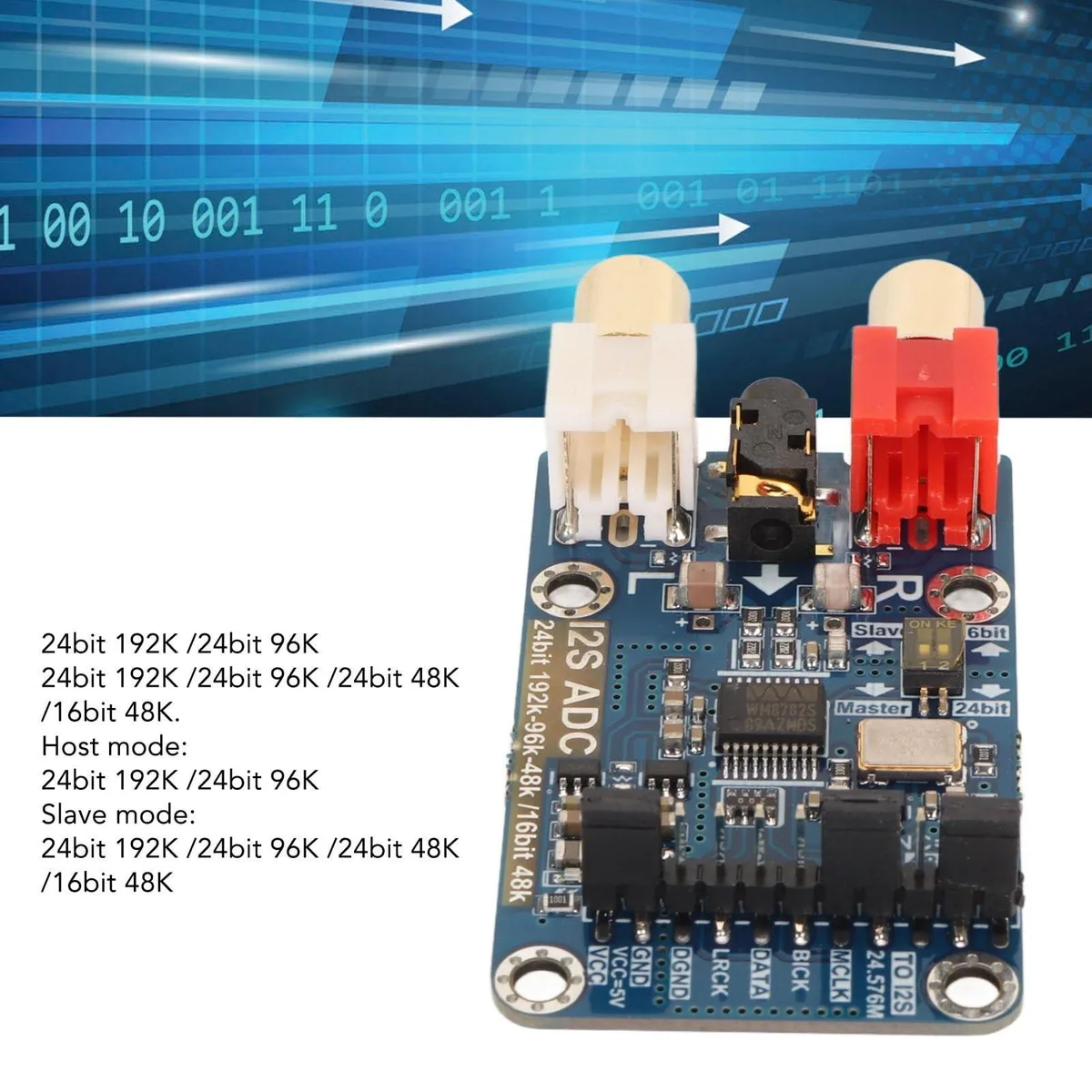

  • Master mode offers 24-bit at 192 kHz and 96 kHz
  • Slave mode supports 24-bit 192 kHz, 96 kHz, 48 kHz and 16-bit 48 kHz
  • Auto output defaults to 24-bit 192 kHz or 96 kHz I2S on power-up
  • 5 mm input with 6 dB gain for stronger capture

I2S ADC audio capture card module

The KW-Commerce I2S ADC audio capture card module converts analogue signals into I2S digital audio streams. It operates in master or slave modes for development and prototyping work. A 3.5 mm input with 6 dB amplification is provided as standard.

Makers needing lossless I2S capture

Engineers building custom audio interfaces or experimenting with digital signal processing will find the flexible sample-rate options useful. Users who require integrated analogue-to-digital conversion with USB or network output should look elsewhere.

24-bit depth at 192 kHz headroom

The board handles 24-bit audio at 192 kHz and 96 kHz in master mode, plus 24-bit at 48 kHz and 16-bit at 48 kHz in slave mode. Projects demanding higher bit depths or sample rates beyond these limits will exceed its capability.

Highlights

  • Converts analogue audio to I2S digital signal
  • Master mode offers 24-bit at 192 kHz and 96 kHz
  • Slave mode supports 24-bit 192 kHz, 96 kHz, 48 kHz and 16-bit 48 kHz
  • Auto output defaults to 24-bit 192 kHz or 96 kHz I2S on power-up
  • 5 mm input with 6 dB gain for stronger capture

Specifications

No published specifications for this item yet.

Questions about this item

What external hardware is required to receive the I2S output from this capture card module?

You need a device with an I2S input such as a DSP board, microcontroller or audio processor that accepts 24-bit 192 kHz or 96 kHz streams.

Will the module work with a legacy DAC that only accepts 16-bit 48 kHz I2S?

Yes, set the module to slave mode and select 16-bit 48 kHz; the card will then output a compatible I2S stream for the older DAC.

How can I verify the board is converting the analogue input to I2S after power-up?

Apply a signal to the 3.5 mm input, then monitor the I2S data line with a logic analyser or scope to see a continuous 24-bit 192 kHz or 96 kHz bitstream.
