Black rectangular lithium-ion replacement battery pack for Trimble survey multimeter

KingSener

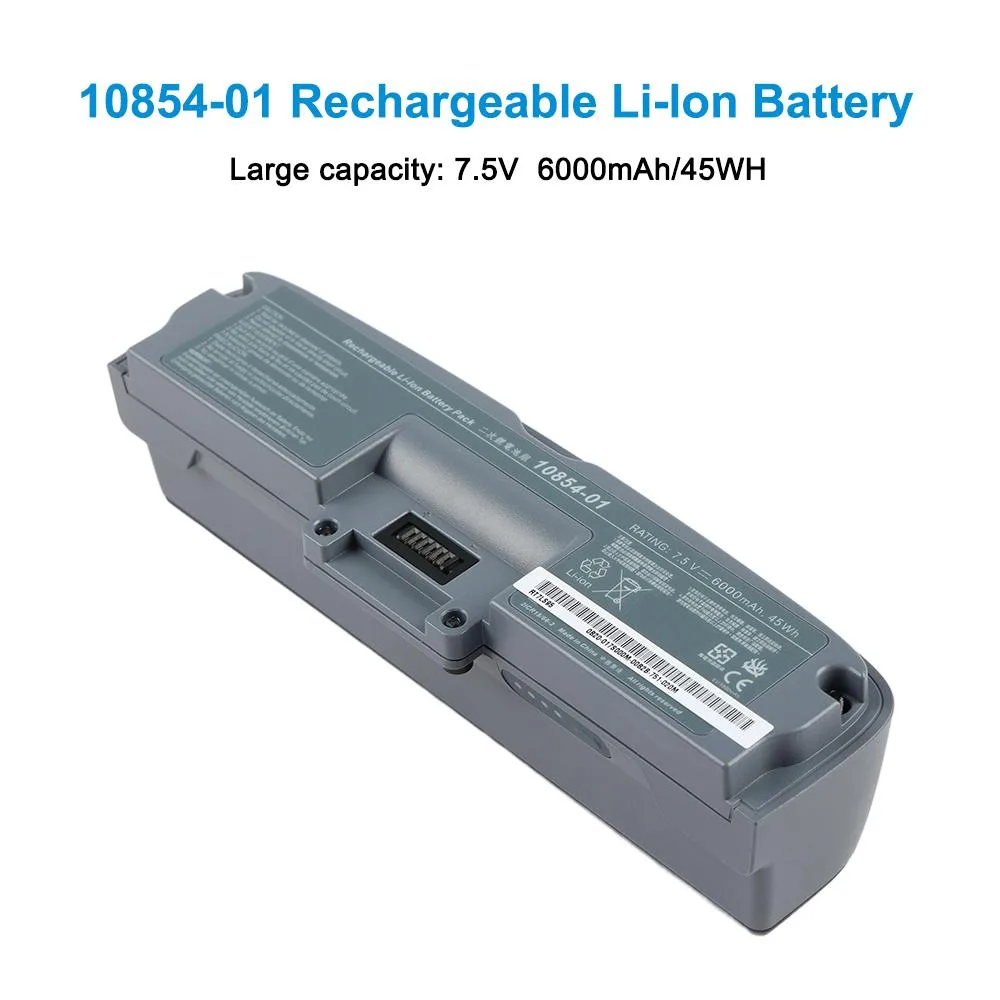

KingSener 10854-01 7.5V 6000mAh 45WH standard battery

SKU CH-6KJ4-2A1XA MPN 10854-01

Replacement lithium-ion battery delivers 7.5V, 6000mAh and 45Wh for Trimble YAN2/YAN II survey multimeters

  • Battery Capacity6000mAh/45WH
  • Battery Voltage7.5V
  • Longer field sessions from 6000mAh 45WH capacity
  • Stable 7.5V output powers Trimble YAN2 multimeter reliably
  • High-quality Li-ion cells deliver consistent runtime
  • Brand-new replacement fits original dimensions exactly
  • Maintain health with 80% monthly charge during storage

Direct Replacement for Trimble YAN2

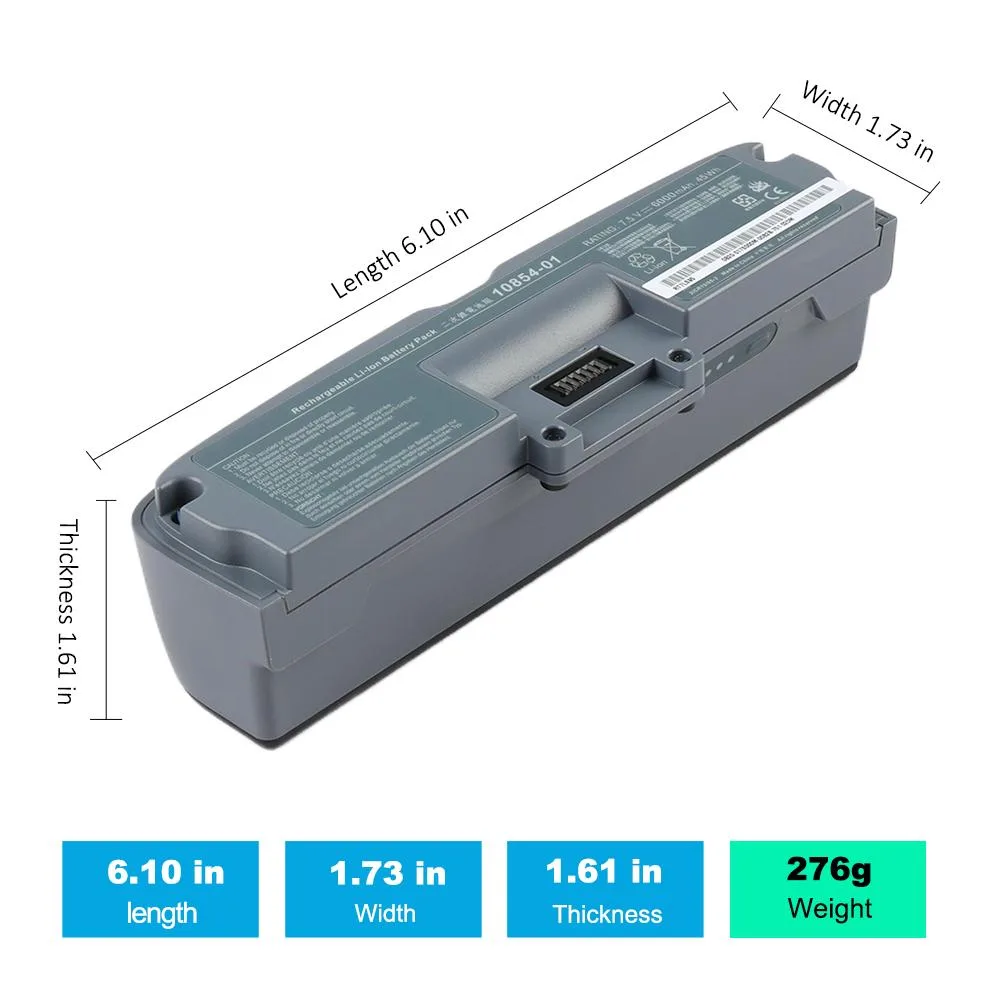

The KingSener 10854-01 is a lithium-ion battery built to replace the original pack in Trimble YAN2 and YAN II survey multimeters. It delivers 7.5V and 6000mAh for 45Wh of rated energy. The physical size matches the factory unit so installation requires no modification.

Single-Source Chemistry Limits

Lithium-ion cells provide stable voltage through most of the discharge curve but capacity drops sharply near the end. The pack cannot be fast-charged beyond the device's built-in controller and will degrade if left at full charge in hot conditions. Runtime scales with the multimeter's current draw which varies by measurement mode.

Upgrade from Depleted Original Packs

This unit replaces an exhausted or swollen factory battery that no longer holds useful charge. The jump is worth it when field sessions end early because the old pack cannot sustain a full day. It is not for users needing higher voltage or a different form factor.

Highlights

  • Longer field sessions from 6000mAh 45WH capacity
  • Stable 7.5V output powers Trimble YAN2 multimeter reliably
  • High-quality Li-ion cells deliver consistent runtime
  • Brand-new replacement fits original dimensions exactly
  • Maintain health with 80% monthly charge during storage

Specifications

BrandKingSener
Model10854-01
Battery Capacity6000mAh/45WH
Battery Voltage7.5V

Questions about this item

How do I know the KingSener 10854-01 is the right replacement for my Trimble YAN2 multimeter?

Match the original battery model number 10854-01 and confirm the 7.5V 6000mAh rating and physical dimensions against your existing pack before ordering.

What runtime can I expect from the 45Wh capacity in a survey multimeter?

The 45Wh rating means the pack can deliver 45 watts for one hour; actual operating time depends on the multimeter's power draw, which varies with measurement mode and display brightness.

Does the 7.5V output use a standard connector or a proprietary Trimble interface?

The battery is built to the same form factor and connector as the original Trimble pack, so it fits directly without adapters or soldering.
