Killark
Killark RE31S IMC Reducing Bushing 1 in x 1/2 in Threaded Steel Zinc Conduit
Reducing bushing connects 1-inch and 1/2-inch IMC conduit in hazardous locations with electroplated steel construction
- TypeCable Management & Conduit
- Reduces conduit size from 1 in to 1/2 in with threaded IMC compatibility
- Female-to-male NPT threads allow direct hazardous-location connections
- Steel body with electroplated zinc finish resists corrosion in harsh environments
- Rated for Class I Division 1 and 2 Groups A, B, C, D hazardous areas
- Compact 13/16 in height and 3/4 in length fits tight enclosures
Reducing Bushing for IMC Conduit

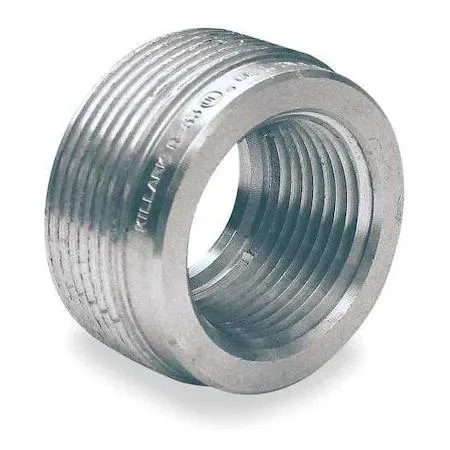

The Killark RE31S is a threaded steel reducing bushing finished in electroplated zinc. It connects 1 inch male NPT threads to 1/2 inch female NPT threads within Intermediate Metal Conduit systems. The fitting carries hazardous-location ratings for Class I Division 1 and 2, Class I Zones 1 and 2, and Class II Division 1 and 2 environments.
Replaces Mismatched Conduit Entries
Use this bushing when a junction box or enclosure has a 1 inch threaded hub but the incoming IMC or threaded rigid conduit is 1/2 inch trade size. The jump is worth it whenever you must downsize a conduit entry without introducing a leak path or losing the hazardous-area rating. It eliminates the need for oversized conduit runs or makeshift reducer combinations.
Verify Thread Gender and Hazardous Rating
Confirm the existing hub provides a 1 inch male NPT thread and that the conduit end is 1/2 inch female NPT. Ensure the installation environment falls within the listed Class I Groups A through D, Class II Groups E through G, and Zone classifications. Check that the 3/4 inch overall length and 13/16 inch height fit the available enclosure depth.
Highlights
- Reduces conduit size from 1 in to 1/2 in with threaded IMC compatibility
- Female-to-male NPT threads allow direct hazardous-location connections
- Steel body with electroplated zinc finish resists corrosion in harsh environments
- Rated for Class I Division 1 and 2 Groups A, B, C, D hazardous areas
- Compact 13/16 in height and 3/4 in length fits tight enclosures
Specifications
| Brand | KILLARK |
|---|---|
| Type | Cable Management & Conduit |
Questions about this item
What clearance does the 1 5/16 in overall width need for mounting in a junction box?
The bushing measures 1 5/16 in wide and 13/16 in high, so allow at least that much internal box space for the threaded body and nut to seat fully.
Which thread do I start first when installing the 1/2 in FNPT to 1 in MNPT reducing bushing?
Engage the 1 in male NPT threads into the conduit or fitting first, then tighten the 1/2 in female side; reversing the order often cross-threads the smaller internal threads.
Does the electroplated zinc finish on this hazardous-location bushing require re-coating after installation?
The factory electroplated zinc coating is the permanent corrosion barrier; no field re-coating is needed unless the surface is mechanically damaged during installation.
