Compact silver dock with two HDMI ports and Thunderbolt 5 uplink

Kensington

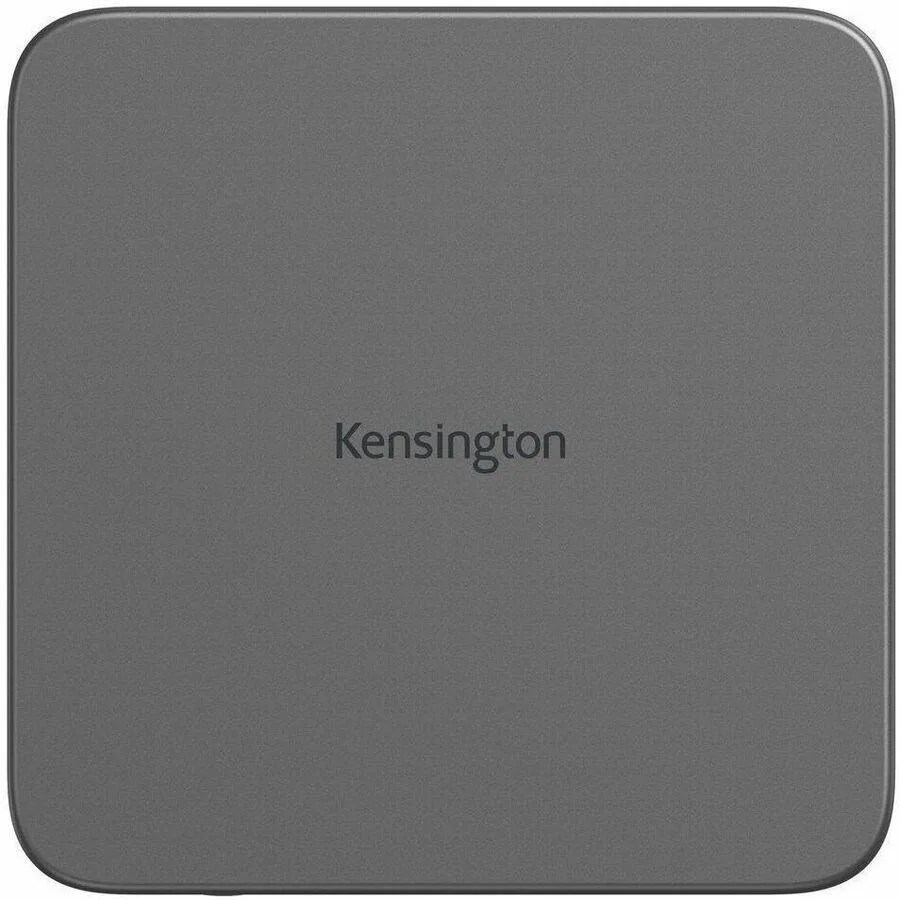

Kensington SD5010T5 EQ Thunderbolt 5 Triple 4K Docking Station (2 x HDMI)

SKU CH-C9TK-DQ5C0

Connects a laptop to three 4K displays at 144 Hz, reads SD and microSD cards, and delivers up to 140 W of power through a single Thunderbolt 5 cable

  • Triple 4K at 144 Hz via two HDMI and Thunderbolt 5
  • Dual 8K at 60 Hz on Windows through Thunderbolt 5
  • Up to 140 W dynamic power delivery for notebooks
  • 13 ports including SD and microSD card readers
  • 80 Gbps data speed with 120 Gbps bandwidth boost

Kensington Thunderbolt 5 Docking Station

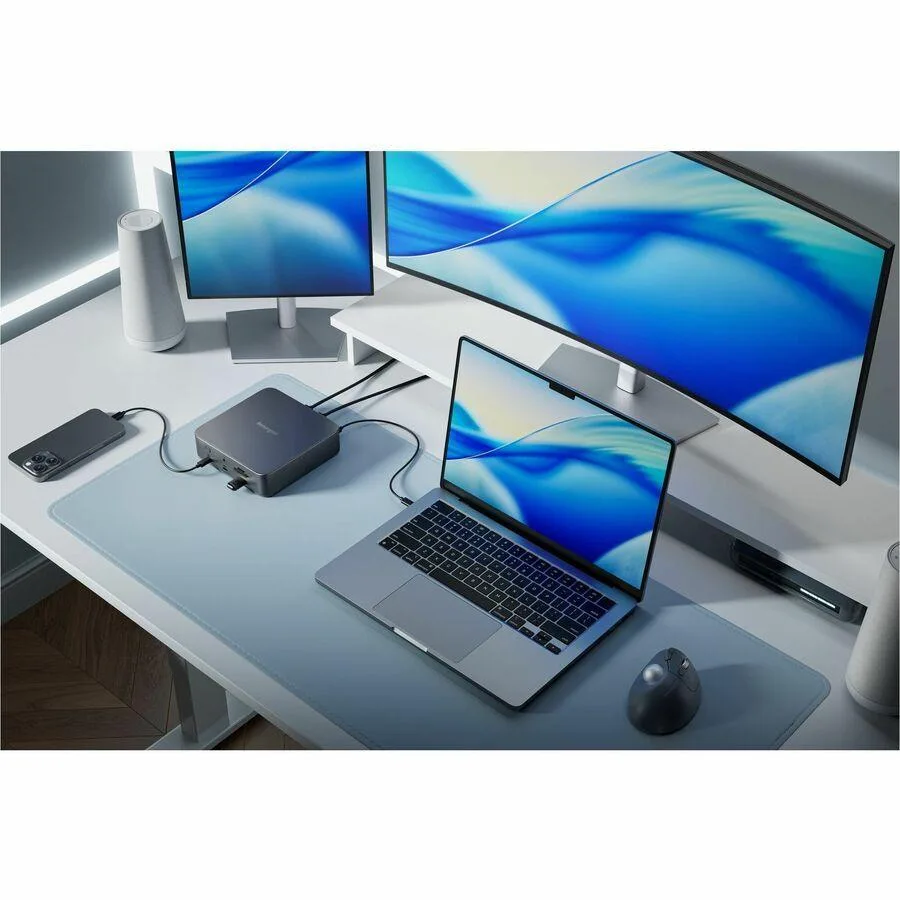

The Kensington SD5010T5 EQ is a Thunderbolt 5 docking station built for notebooks, workstations and MacBooks that need multiple external displays, high-speed data and laptop charging from one cable. It suits professionals who run triple 4K workflows or dual 8K setups on Windows, or dual 6K plus 4K on supported macOS machines.

Simple single-cable setup with two HDMI ports

Connection is made through one Thunderbolt 5 cable that carries video, data and up to 140 W of dynamic power delivery. The dock also provides KonstantCharge™ to keep the host topped up. Installers should verify that the laptop’s USB-C port supports Thunderbolt 5 and the required DisplayPort Alt Mode; base M1/M2 MacBooks only drive one external display, and M3 base models need the lid closed for two.

Thunderbolt 5 bandwidth and display limits

Thunderbolt 5 delivers up to 80 Gbps data throughput with Bandwidth Boost to 120 Gbps for video-heavy loads. Windows systems can run three 4K monitors at 144 Hz or two 8K monitors at 60 Hz or 30 Hz via the two HDMI ports and the Thunderbolt 5 downstream port. macOS with M4/M5 base or M-Series Pro/Max chipsets handles two 4K at 60 Hz over HDMI or one 6K over Thunderbolt 5. The dock supplies 13 ports total including SD and microSD readers.

Highlights

  • Triple 4K at 144 Hz via two HDMI and Thunderbolt 5
  • Dual 8K at 60 Hz on Windows through Thunderbolt 5
  • Up to 140 W dynamic power delivery for notebooks
  • 13 ports including SD and microSD card readers
  • 80 Gbps data speed with 120 Gbps bandwidth boost

Specifications

BrandKensington

Questions about this item

How can I confirm the dock is delivering its maximum 80 Gbps data rate after connecting my laptop?

The dock’s Thunderbolt 5 controller negotiates the link automatically; check the host’s Thunderbolt control panel or system report to verify an 80 Gbps active connection.

Which cables and accessories are included in the box versus what I must purchase separately?

The dock ships with a Thunderbolt 5 host cable and a 180 W power adapter; any additional video cables or memory cards are sold separately.

Should I choose this model for three 4K 144 Hz displays on Windows or stick to dual 6K plus 4K on macOS?

Windows supports three 4K monitors at 144 Hz via the two HDMI ports and the Thunderbolt 5 port; macOS with M4/M5 base or Pro/Max chips supports dual 6K plus 4K or dual 4K at 60 Hz.
