Small white rectangular controller with side terminals and a front button

KEHIPI

KEHIPI WB5 5-in-1 Tuya Wi-Fi Smart LED Controller

SKU CH-3Y15-TQJN9 MPN WB5

Controls PWM LED strips — single-colour, CCT, RGB, RGBW or RGBCCT — via 2.4 GHz Wi-Fi app, RF remote or voice assistants

  • ColorWhite
  • SpecificationsBTF-LIGHTING
  • Dimensions4.92 in x 1.38 in x 1.1 in
  • Weight2.4 ounces
  • Controls five LED strip types with one device
  • Handles up to 15 amps total output across channels
  • Operates on 2.4 GHz Wi-Fi for app and voice control
  • Works with compatible RF remotes up to 30 metres away
  • Runs on 12 V or 24 V DC input power

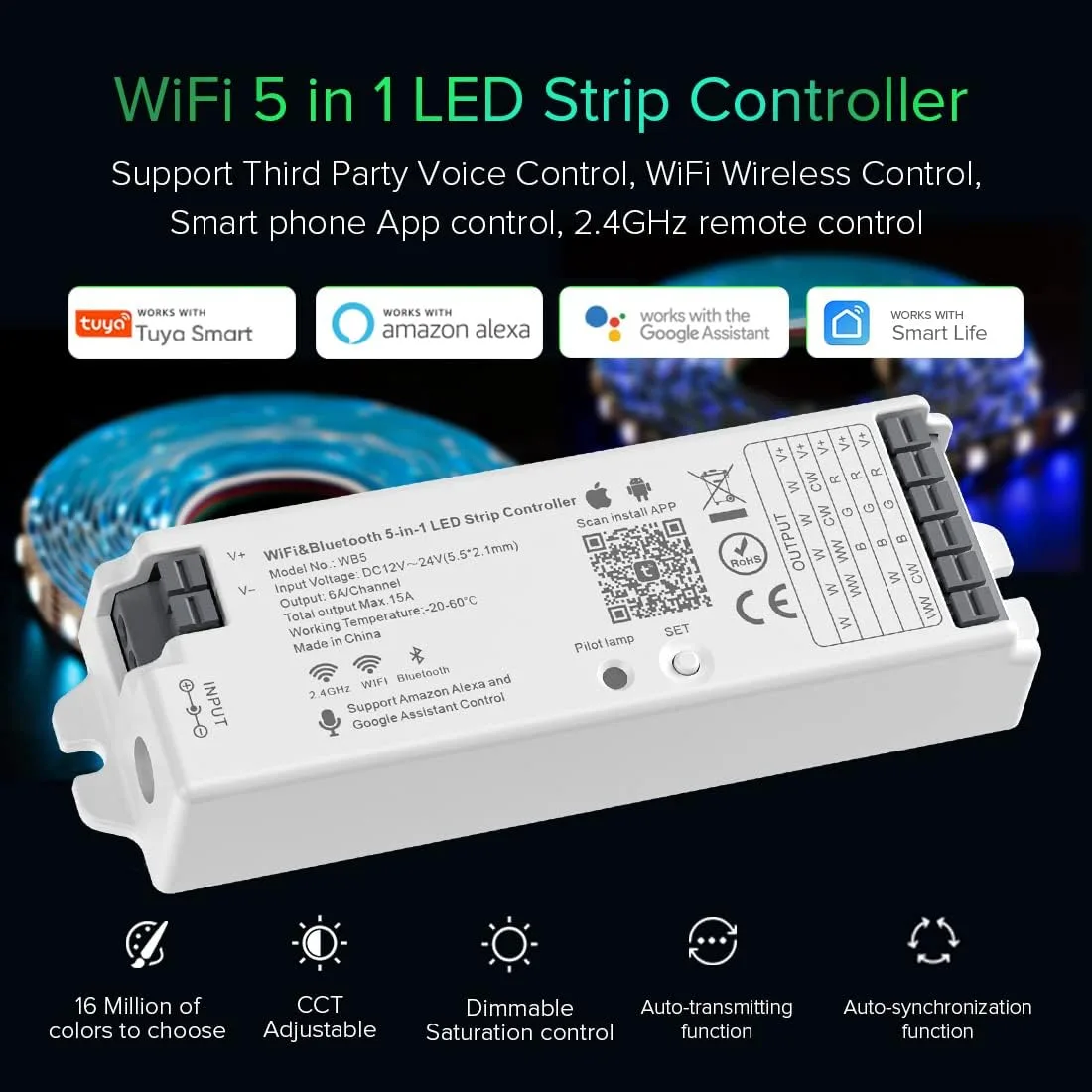

5-in-1 Tuya Wi-Fi LED Controller

The KEHIPI WB5 is a 5-in-1 PWM controller that manages single-colour, CCT, RGB, RGBW and RGBCCT LED strips from one device. It operates on DC12V-24V input and supports a total output of 15A, making it suitable for residential and light commercial installations.

Mode switching and multi-protocol control

A single button cycles through the five output modes to match the connected strip type. Control is available via the Tuya Smart or Smart Life apps over 2.4GHz Wi-Fi, compatible RF remotes such as WR01RF or RC01RFB, and voice assistants including Alexa and Google Home, all usable simultaneously.

Ideal for PWM strip projects.

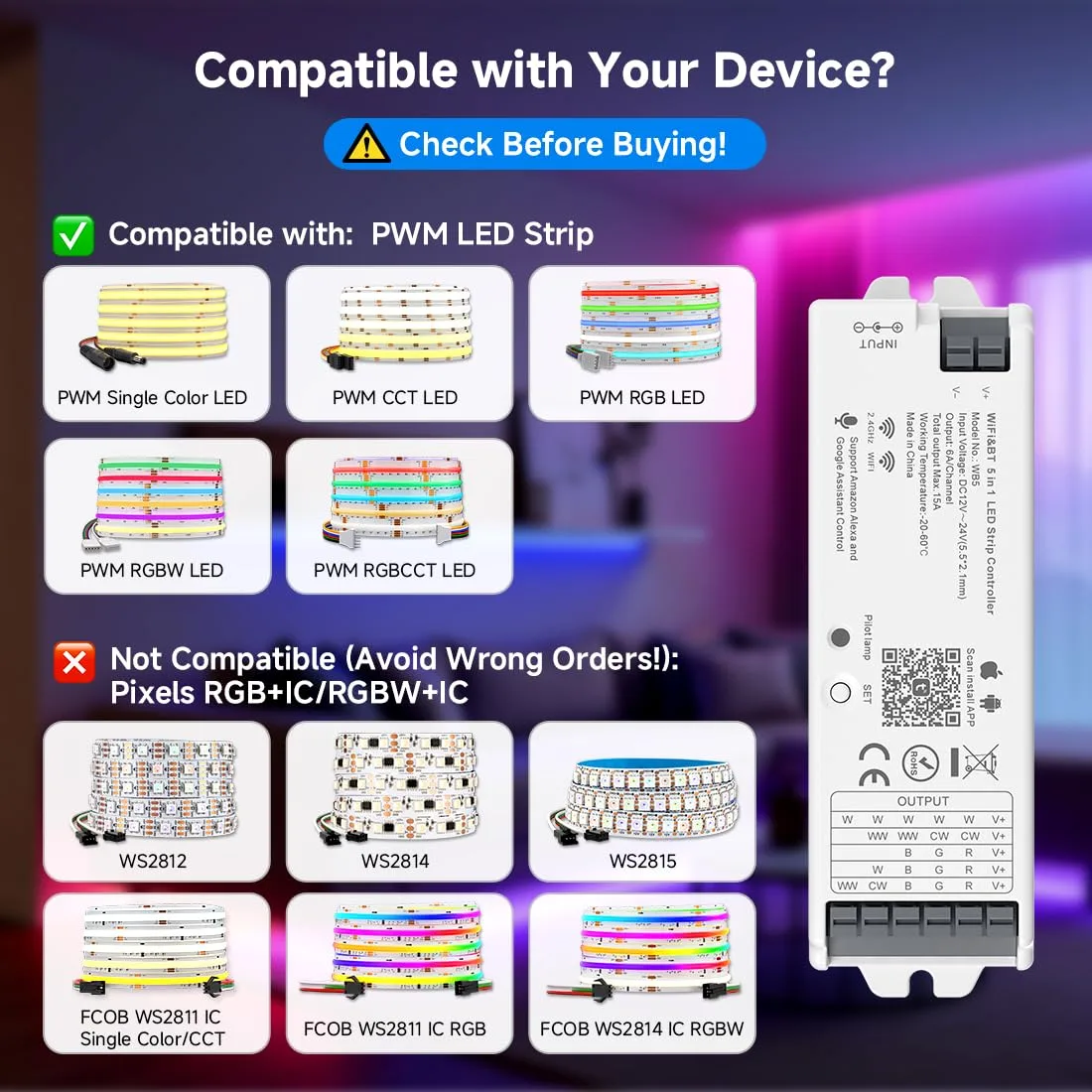

This unit suits installers who need one controller for multiple PWM strip formats and want app, remote and voice options together. It does not support addressable strips using WS2811, WS2812, WS2813, WS2814, WS2815, SK6812 or similar ICs, so buyers with those strips should look elsewhere.

Highlights

  • Controls five LED strip types with one device
  • Handles up to 15 amps total output across channels
  • Operates on 2.4 GHz Wi-Fi for app and voice control
  • Works with compatible RF remotes up to 30 metres away
  • Runs on 12 V or 24 V DC input power

Specifications

BrandBTF-LIGHTING
ModelWB5
ColorWhite
Part NumberWB5
SpecificationsBTF-LIGHTING
Dimensions4.92 in x 1.38 in x 1.1 in
Weight2.4 ounces

Questions about this item

Will the WB5 controller itself need any firmware updates or component replacements over time?

The WB5 controller has no user-serviceable parts and no firmware-update mechanism mentioned in the specifications, so no scheduled maintenance or replacements are required.

What power limit will the WB5 hit first when driving a long RGBW strip continuously at 24 V?

At 24 V the total output is capped at 360 W and each channel at 6 A, so the 15 A overall limit will be reached before any single channel saturates.

How hot does the WB5 get and does it make any noise when running a full 15 A load all day?

The unit is rated for operation up to 140 °F (60 °C) with passive cooling and no moving parts, so it runs silently while staying within that temperature range.
