KEHIPI

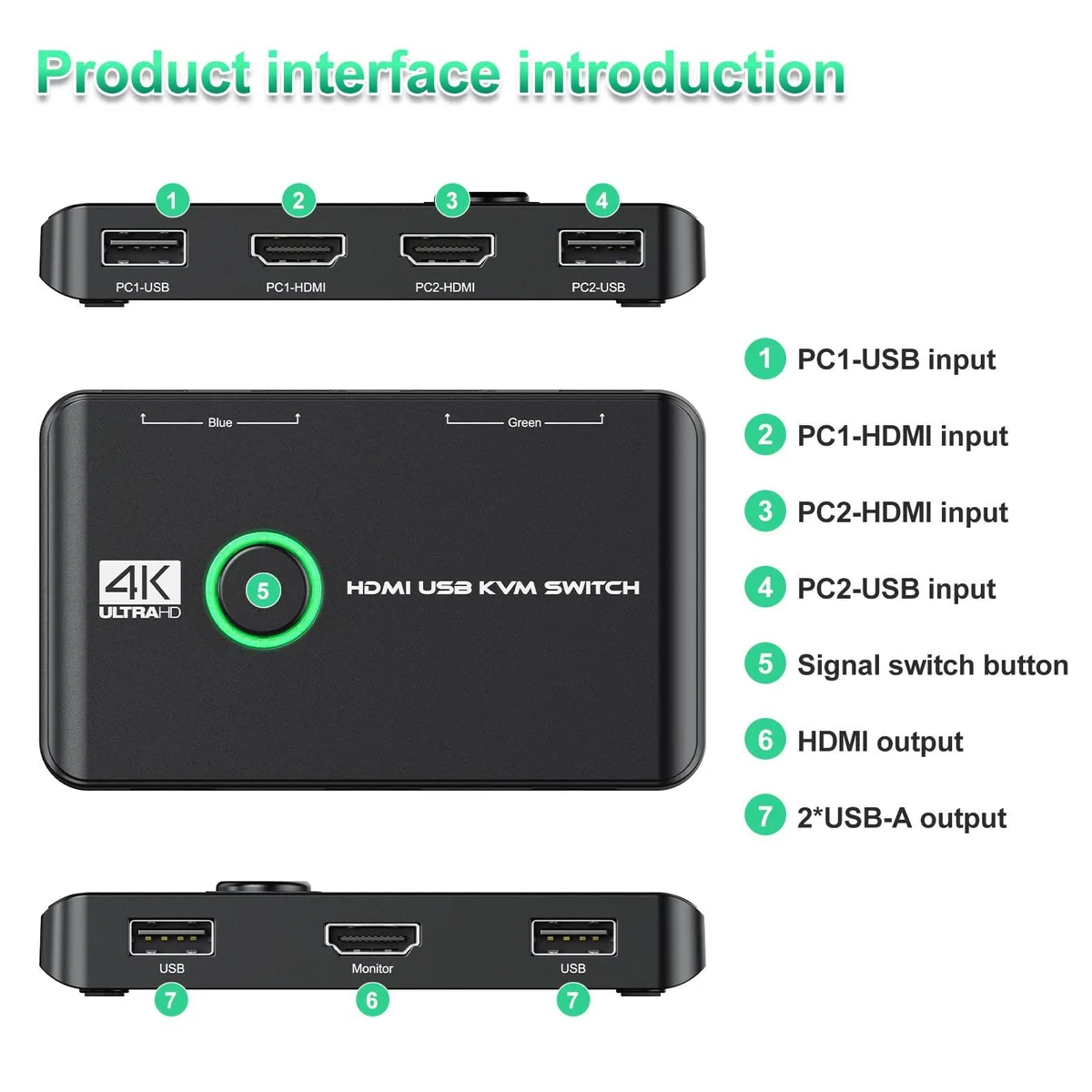

KEHIPI V806-A1 2-Port 4K@60Hz HDMI KVM Switch
Control two computers with one keyboard, mouse and 4K@60Hz monitor via push-button switching
- TypePush Button
- Monitor ConnectionsKVM switch
- PC SelectionPush Button
- Temperature-5 degrees_celsius
- Power Features5 volts
- Dimensions20.0 in x 12.0 in x 3.0 in
- Control two computers with one keyboard, mouse and monitor using a single push button
- Enjoy crisp 4K visuals at 60 Hz for detailed work or gaming sessions
- Connect consoles, PCs and laptops — PS4, Xbox, Switch and more — without driver installation
- Power the switch through the micro-USB port to run external drives or cameras
- Includes two 1.2 m HDMI cables and two 1.2 m USB 2.0 cables for immediate setup
What this KVM switch does

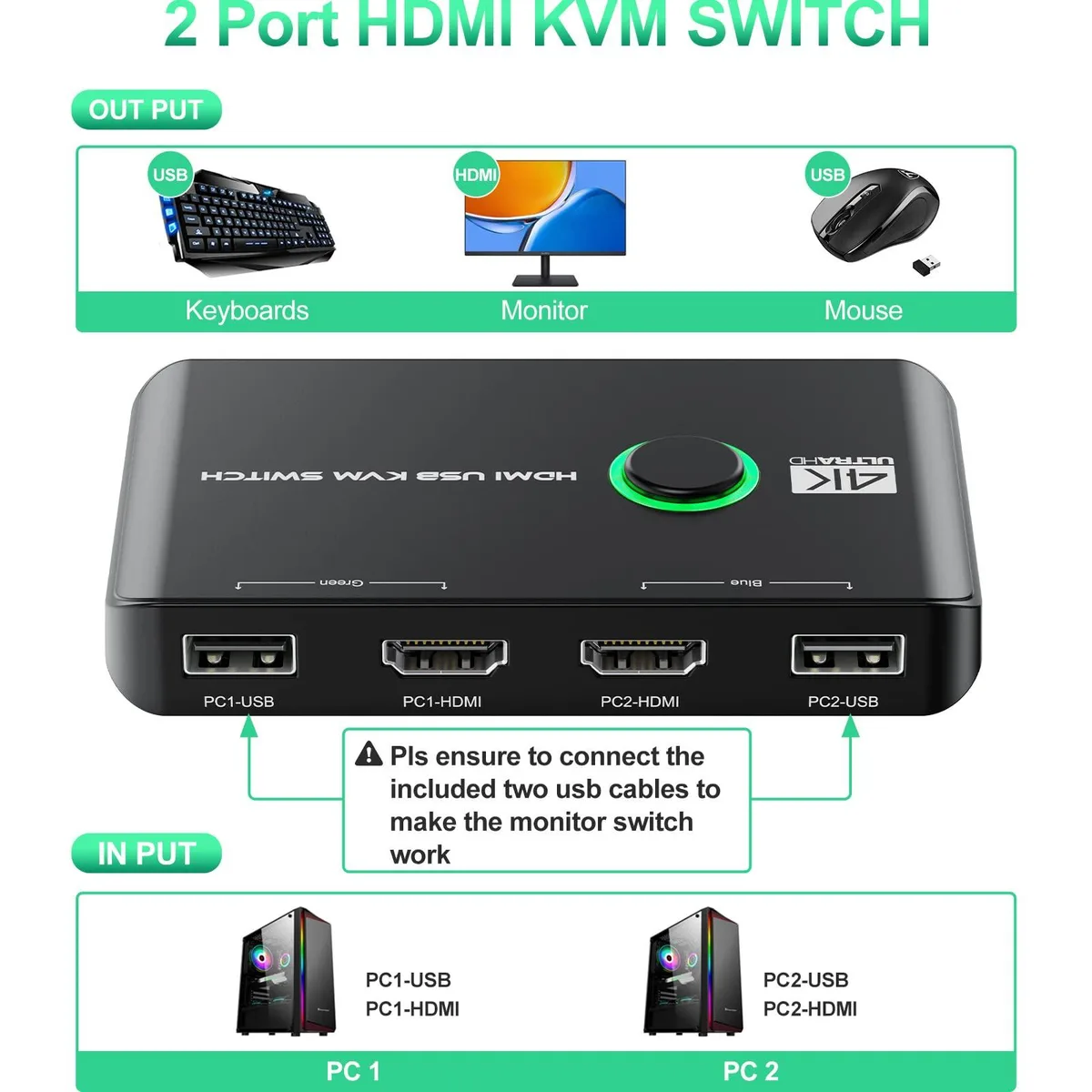

The KEHIPI V806-A1 is a 2-port HDMI KVM switch that lets one keyboard, one mouse and one monitor control two computers. It supports Windows, Mac OS, Linux and Chrome OS without driver installation. The unit draws power from the connected systems through a Micro USB port so no external adapter is needed. A push button with LED indication selects the active computer.
Resolution and refresh rate
The switch passes video up to 4K at 60 Hz and also handles 4K at 30 Hz, 1080p and lower resolutions. HDMI 2.0 bandwidth carries the 4K 60 Hz signal without compression. Both HDMI and USB 2.0 cables are included at 1.2 m each for immediate setup.
Sustained operation
The switch operates from -5 °C upward and runs continuously without active cooling. Power consumption stays at 5 V and 1 A through the host USB connection. Mechanical push-button contacts rated for repeated cycling maintain reliable switching during long work sessions or gaming marathons.
Highlights
- Control two computers with one keyboard, mouse and monitor using a single push button
- Enjoy crisp 4K visuals at 60 Hz for detailed work or gaming sessions
- Connect consoles, PCs and laptops — PS4, Xbox, Switch and more — without driver installation
- Power the switch through the micro-USB port to run external drives or cameras
- Includes two 1.2 m HDMI cables and two 1.2 m USB 2.0 cables for immediate setup
Specifications
| Brand | KEHIPI |
|---|---|
| Model | V806-A1 |
| Part Number | V806 |
| Type | Push Button |
| Monitor Connections | KVM switch |
| PC Selection | Push Button |
| Temperature | -5 degrees_celsius |
| Power Features | 5 volts |
| Dimensions | 20.0 in x 12.0 in x 3.0 in |
| Weight | 0.308 kilograms |
| Package Contents | KVM Switch *1, HDMI cables *2, USB cables *2, Manual *1 |
Questions about this item
Will the 4K@60 Hz rating actually deliver smooth UHD motion on my monitor?
The switch passes 4K at 60 Hz through its HDMI ports, so a compatible display shows full UHD motion without the 30 Hz limit found on older units.
Which HDMI version does the V806-A1 use, and what bandwidth does that cap?
The product data lists HDMI and USB connectors with 4K@60 Hz support, indicating an HDMI 2.0-class link that handles up to 18 Gbps for UHD 60 Hz signals.
What desk space and cabling does the unit need to fit and work?
The box measures 7.87 × 4.72 × 1.18 inches and weighs 10.86 ounces; it ships with two 1.2 m HDMI and two 1.2 m USB 2.0 cables for a direct two-PC setup.
