Small white rectangular PoE splitter with RJ45 and micro USB ports

KEHIPI

KEHIPI U5159 PoE Splitter 48V to 5V 2.4A Micro USB Powerline Networking

SKU CH-W756-KT4WN

Converts 48V PoE to 5V 2.4A micro USB power and 100Mbps data over 100m Ethernet runs for Raspberry Pi, cameras and tablets

  • Interfaceethernet
  • Powerline Speeds100 megabits_per_second
  • Connection Speeds100 megabits_per_second
  • Kit Type48V to 5V 2A
  • Power Supply5 volts
  • Dimensions8.0 in x 1.5 in x 5.0 in
  • Delivers 12 W of power to micro USB devices via Ethernet cable up to 328 ft
  • Converts 48 V PoE input to 5 V 2.4 A output with 2.5 kV isolation
  • Works with IEEE 802.3af switches or injectors accepting 44–57 V DC range
  • Provides 10/100 Mbps data pass-through through RJ45 male connector
  • Compact 8.0 in x 1.5 in x 5.0 in design weighs 60 g

KEHIPI U5159 PoE Splitter for Micro USB Devices

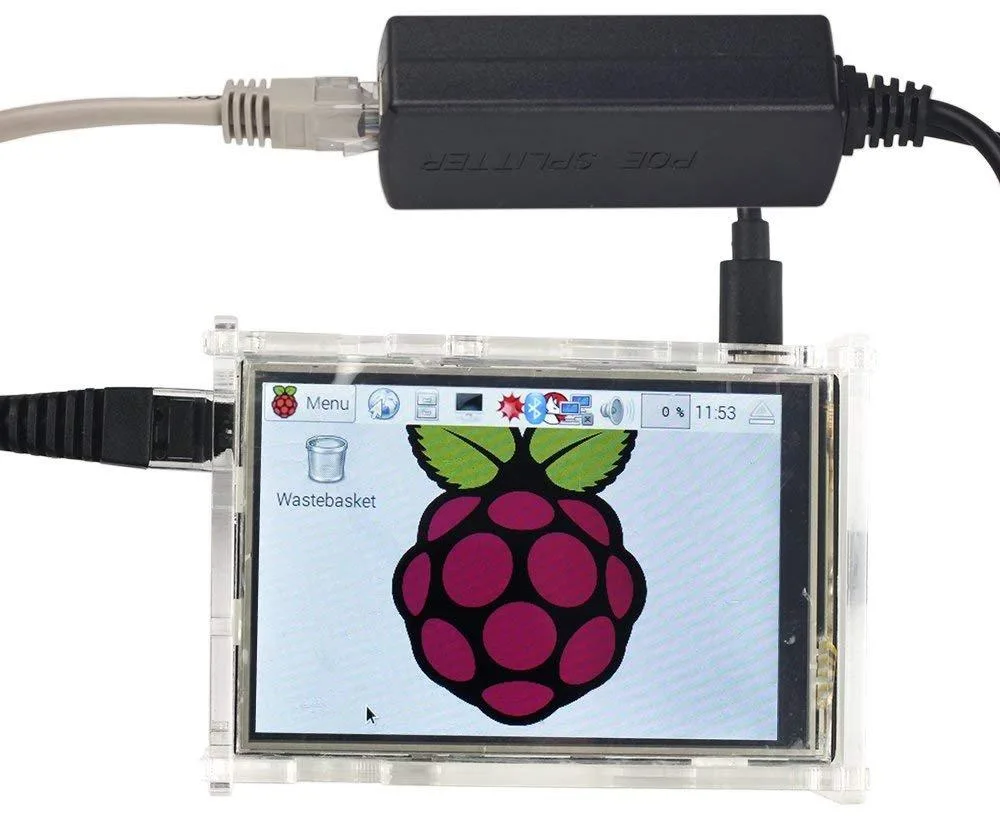

The KEHIPI U5159 is a Power over Ethernet splitter that converts 48V PoE input into 5V 2.4A micro USB power while passing 10/100Mbps data through an RJ45 port. It is built for tablets, cameras, Raspberry Pi 2 or 3B+, and similar micro USB devices that sit beyond AC outlet reach. An IEEE 802.3af compliant switch or 48V injector is required to operate the unit.

2.5kV Isolation and 100m Cable Reach

The adapter provides 2.5kV isolation and accepts 44-57V DC input with overvoltage protection. It supports PoE pinouts on 1/2(+/-), 3/6(-/+) or 4/5(+), 7/8(-) for broad switch compatibility. A single Ethernet cable delivers both data and power up to 100-150m (328-492ft), removing the need for a nearby wall adapter and freeing a PoE port for micro USB use.

Upgrades USB Wall Adapters for Remote Installs

This splitter replaces a standard USB power brick when a PoE switch or injector is already present and the device is 100m or more from mains power. It is not suited for gigabit-only networks — the U515902 model is recommended for those speeds — nor for hardware that demands USB-C or higher than 2.4A current. Buyers needing 12V output or gigabit throughput should select a different model.

Highlights

  • Delivers 12 W of power to micro USB devices via Ethernet cable up to 328 ft
  • Converts 48 V PoE input to 5 V 2.4 A output with 2.5 kV isolation
  • Works with IEEE 802.3af switches or injectors accepting 44–57 V DC range
  • Provides 10/100 Mbps data pass-through through RJ45 male connector
  • Compact 8.0 in x 1.5 in x 5.0 in design weighs 60 g

Specifications

BrandUCTRONICS
ModelU5159
Interfaceethernet
Powerline Speeds100 megabits_per_second
Connection Speeds100 megabits_per_second
Kit Type48V to 5V 2A
Power Supply5 volts
Dimensions8.0 in x 1.5 in x 5.0 in
Weight60 grams

Questions about this item

What data rate does the RJ45 Ethernet interface support on this U5159 PoE splitter?

The RJ45 port delivers 10/100 Mbps data transfer, so the link caps at 100 megabits per second in practice.

What physical space and mounting clearance does the U5159 need?

The unit measures 8.0 in x 1.5 in x 5.0 in and weighs 60 grams, so allow at least that footprint plus cable bend radius for the RJ45 and micro USB connectors.

How is the U5159 installed, and which step do users often miss?

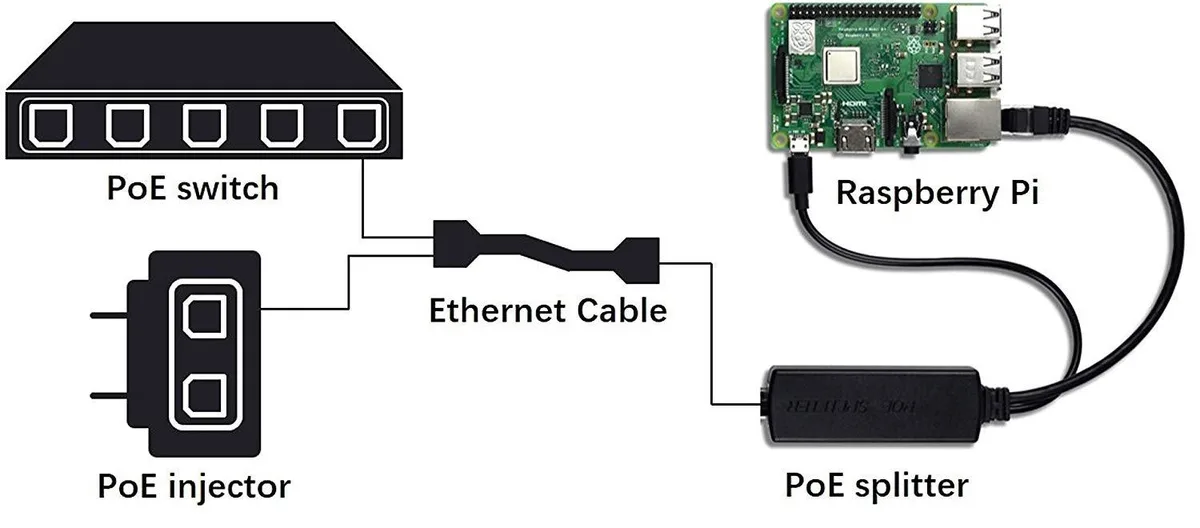

Connect an IEEE 802.3af PoE switch or 48 V injector to the RJ45 input, then plug the micro USB output into the device; the step often missed is confirming the source provides 44–57 V DC, because a non-compliant injector will not power the splitter.
