White rectangular controller with JST connector and mini screwdriver

KEHIPI

KEHIPI SP105E Bluetooth LED controller kit

SKU CH-WBRZ-X2SA1 MPN SP105E

Bluetooth LED controller for addressable strips with 200 built-in effects and app colour calibration

  • ColorWhite
  • App-Enabledremote
  • SpecificationsYoLink, White, 0 dB, Alkaline, 3 volts, Hub + 4 Leak Sensors
  • Dimensions3.5 in x 8.0 in x 1.7 in
  • Weight0.05 kilograms
  • Package ContentsSP105E Bluetooth LED controller, 3pin female JST connector,
  • Control 200 dynamic lighting modes from your phone via Bluetooth 4.0
  • Works with WS2811, WS2812B, WS2813, WS2815, SK6812, APA102 and many other IC strips
  • Operates on DC5V, DC12V or DC24V with built-in reverse-polarity protection
  • Calibrate six RGB colour orders in the app to fix mismatched strip colours
  • Compact 85 mm × 45 mm × 22 mm controller weighs only 40 g

Bluetooth LED controller for smart strips

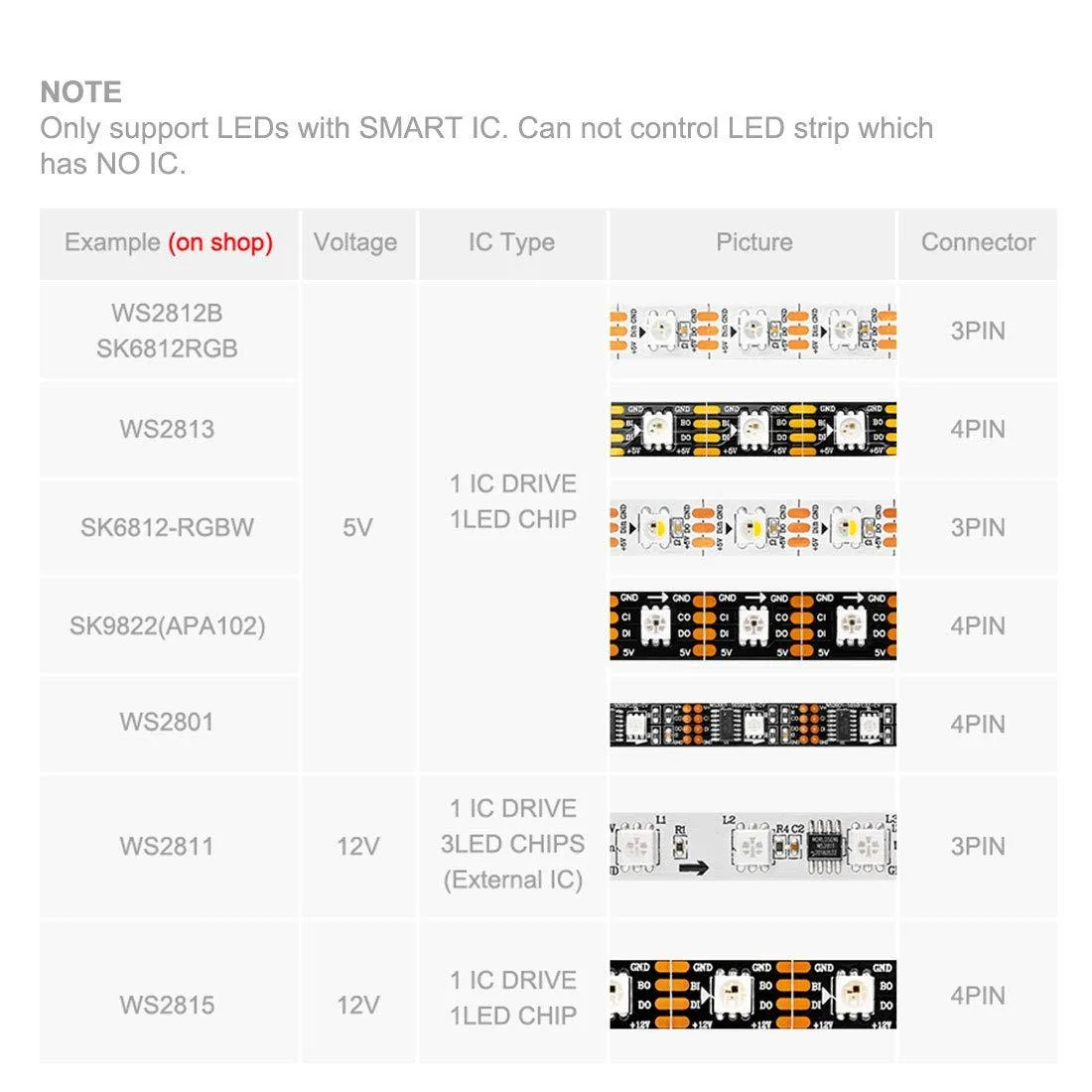

The KEHIPI SP105E is a Bluetooth 4.0 controller that drives addressable LED pixels such as WS2811, WS2812B, WS2813, WS2815, SK6812 and APA102 types. It suits hobbyists and installers who want phone-based colour control without a wired hub. The unit does not work with ordinary analogue RGB or RGBW strips that lack a built-in IC.

200 built-in patterns and wide voltage input

The app offers 200 pre-programmed colour-change modes plus static colour and brightness adjustment, with settings saved automatically on power loss. The controller accepts DC 5 V, 12 V or 24 V input through a 5.5 mm × 2.1 mm jack, but passes the supply voltage straight to the LEDs — the source must match the strip voltage exactly or the pixels will be damaged.

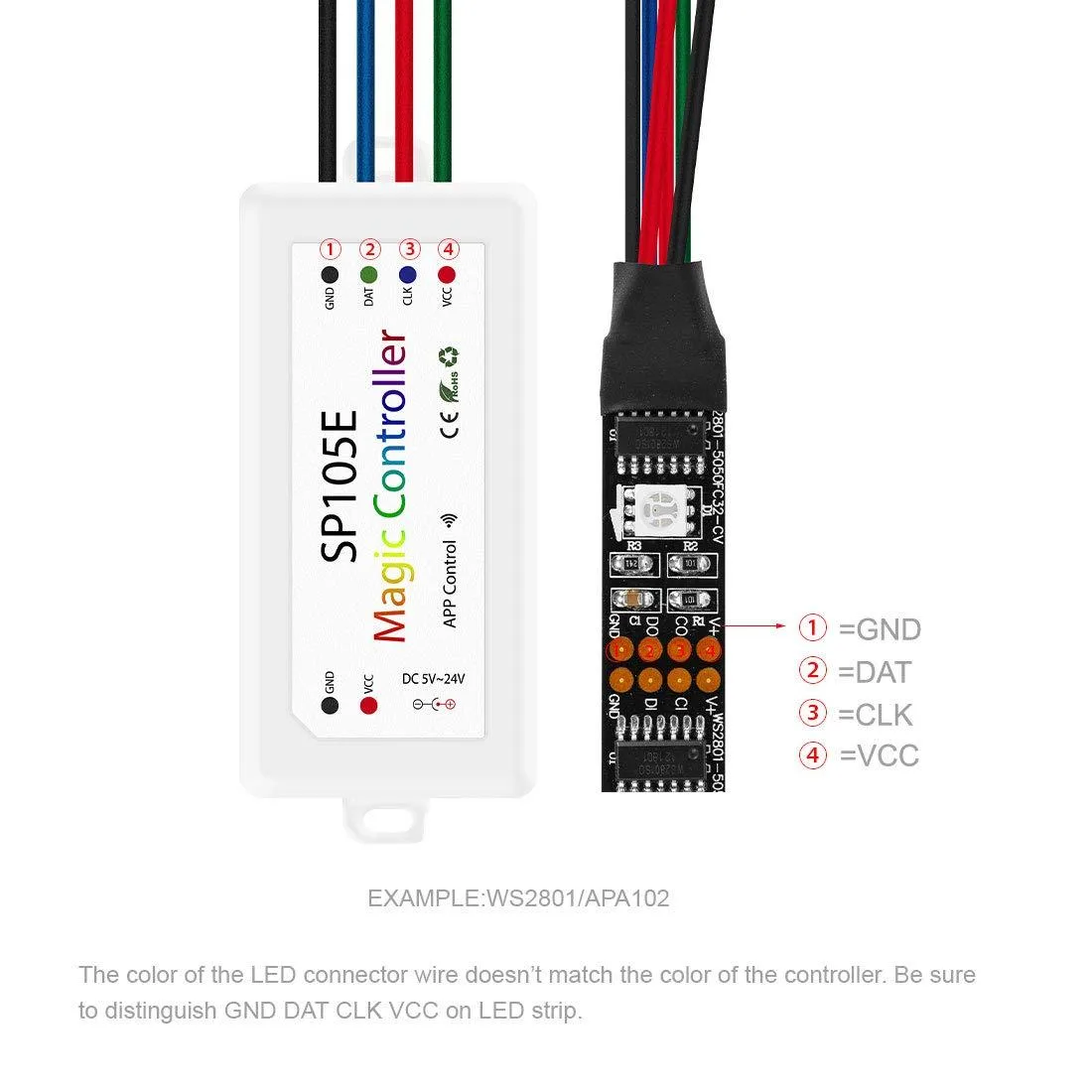

JST connector and mini screwdriver simplify wiring

The box includes a 3-pin female JST connector and a mini screwdriver so you can terminate power and data leads without hunting for extra parts. A QR code on the manual links to the Magic-LED app for iOS 8.0 or Android 4.4 and later. The controller cannot regulate output voltage and will not drive non-IC strips.

Highlights

  • Control 200 dynamic lighting modes from your phone via Bluetooth 4.0
  • Works with WS2811, WS2812B, WS2813, WS2815, SK6812, APA102 and many other IC strips
  • Operates on DC5V, DC12V or DC24V with built-in reverse-polarity protection
  • Calibrate six RGB colour orders in the app to fix mismatched strip colours
  • Compact 85 mm × 45 mm × 22 mm controller weighs only 40 g

Specifications

BrandBTF-LIGHTING
ModelSP105E
ColorWhite
App-Enabledremote
Part NumberSP105E
SpecificationsYoLink, White, 0 dB, Alkaline, 3 volts, Hub + 4 Leak Sensors, 1320 feet, aaa, 8, aa, 8, Application, 8 L x 2 W x 4 H inches, 5, Battery Powered, true, true, Desktop, Batteries, 0.61 kilograms, 6.9 L x 12 W x 19.6 H centimeters, 110 L x 110 W x 27 H millimeters, 2020-02-29T08:00:00Z, batteries_contained_in_equipment, installed_in_equipment, has_fcc_id, 2ATM71603; 2ATM77903
Dimensions3.5 in x 8.0 in x 1.7 in
Weight0.05 kilograms
Package ContentsSP105E Bluetooth LED controller, 3pin female JST connector, Mini screwdriver, User manual

Questions about this item

Will the SP105E controller work with my existing WS2812B LED strips?

Yes, the SP105E supports WS2812B strips; select WS2811 and GRB in the app settings for correct operation.

How can I verify the SP105E is functioning properly after wiring it to my LED strip?

Open the Magic-LED app via Bluetooth 4.0, choose a colour mode, and confirm the strip displays the selected pattern and brightness changes.

What accessories come with the SP105E kit and what must I provide separately?

The box includes the SP105E controller, a 3-pin female JST connector, a mini screwdriver, and a user manual; you must supply a compatible DC power supply (5 V, 12 V or 24 V) matching your strip voltage.
